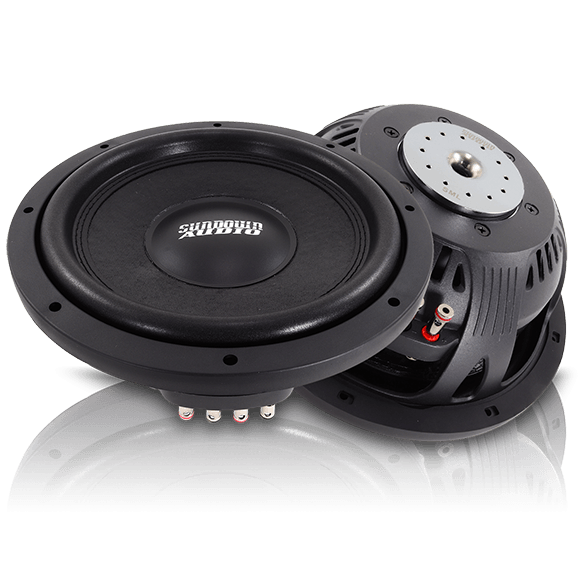

SML-Series 12” Thin Subwoofer
Regular price
$249.99 USD
Regular price
Shipping calculated at checkout.
- 600 Watts RMS/1200 Watts Peak
- Dual 2 or 4 ohm voice coils
- Black Aluminum 2.5” voice coil former for superior heat dissipation
- High temperature 4-layer copper voice coil wire

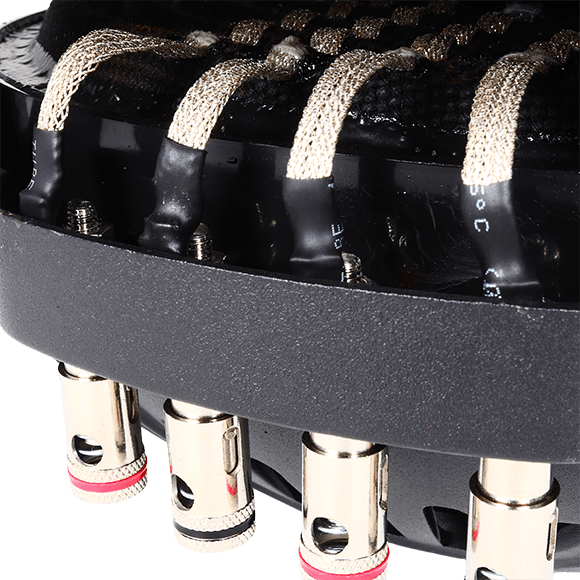

- Stitched-on “Mini-XL” tinsel leads to prevent fatigue and failure
- Vented pole-piece and multi-vented magnetic gap
- Dual-magnet design for smooth acoustic response
- Custom tooled cone shape for reduced mechanical noise over high excursion

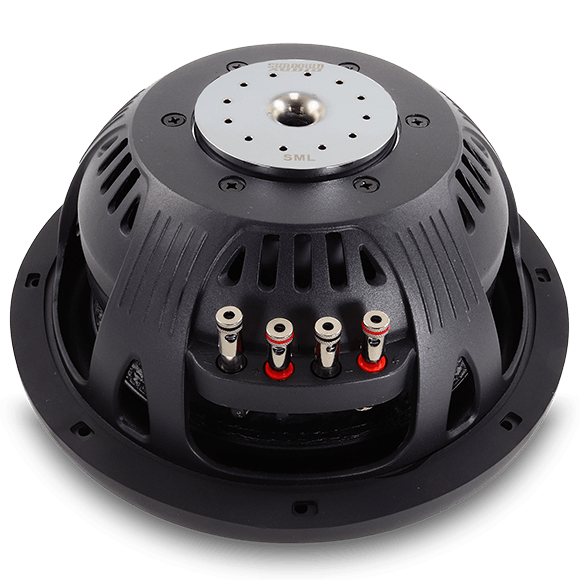

- Bolt-through motor design to ensure maximum longevity and ruggedness
Introducing the SML series: a revolutionary line of subwoofers by Sundown Audio. This series is an inch shallower than the SLD line, yet delivers nearly the same excursion, making it the ultimate choice for customers in search of an extremely shallow driver with deep bass. Specifically designed to fit under or behind your seat, the SML series excels in performance, especially within small enclosures.
Specifications
| RE (Ohms) | 3.650 | 6.850 |
| FS (Hz) | 34.932 | 39.905 |
| VAS (L) | 39.012 | 29.593 |
| Qes | 0.456 | 0.617 |
| Qms | 2.862 | 3.035 |
| Qts | 0.394 | 0.513 |
| BL (NA) | 17.879 | 22.801 |
| Mms (Grams) | 182.067 | 186.887 |
| Cms (uM/N) | 114.018 | 85.771 |
| Sens (dB @ 1w/1m) | 87.5dB | 86.7dB |
| Xmax | 14mm | 14mm |
| T/S SPECS | SML 12" D2 | SML 12" D4 |
|---|
Specifications
| T/S Specs | |
|---|---|
RMS Power (D4) |
|
RMS Power (D2) |
|
Peak Power (D2) |
|
Peak Power (D4) |
|
VAS D2 (L) |
|
VAS D4 (L) |
|
Qes D2 |
|
Qes D4 |
|
Qms D2 |
|
Qms D4 |
|
Qts D2 |
|
Qts D4 |
|
BL D2 (NA) |
|
BL D4 (NA) |
|
Mms D2 (Grams) |
|
Mms D4 (Grams) |
|
Cms D2 (uM/N) |
|
Cms D4 (uM/N) |
|
Sens D2 (dB @ 1w/1m) |
|
Sens D4 (dB @ 1w/1m) |
|
Xmax D2 |
|
Xmax D4 |
|
| Subwoofer Measurements | |
Documentation |
|
Displacement (Inches) |
|
Depth (Inches) |
|
Cutout (Inches) |
|
Motor Diameter (Inches) |
|
| Ported Enclosure Specs | |
Ported Enclosure Size |
|
Recommended Port Area |
|
Recommended Port Tuning |
|
| Sealed Enclosure Specs | |
Sealed Enclosure Size |
|
| 4th Order Enclosure Specs | |
4th Order Sealed Side |
|
4th Order Ported Side |
|
4th Order Port Area |
|
4th Order Port Length |
|
