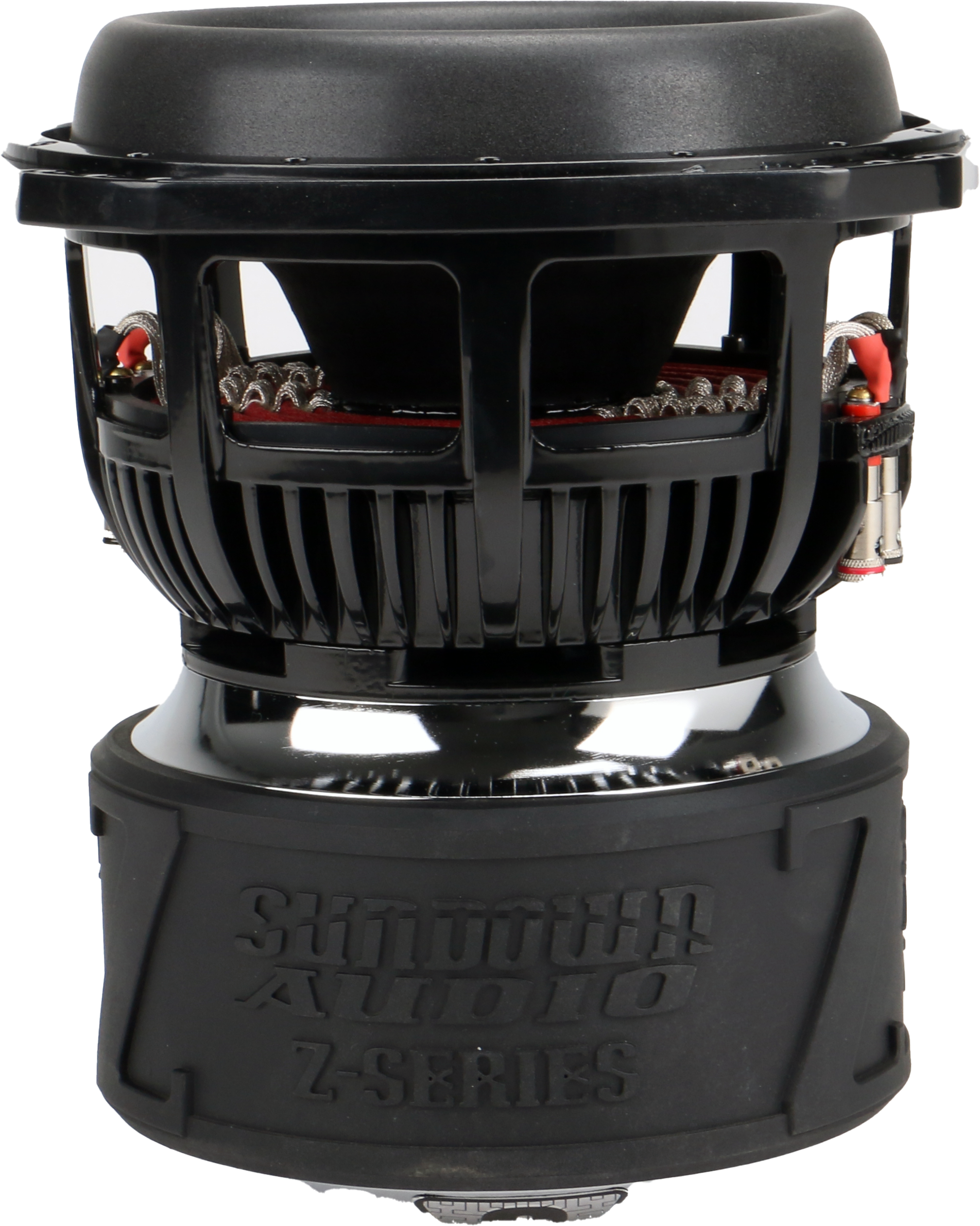

Z-Series Z8" 4000W Subwoofer Z-8

$699.99

Small Size. Serious Power. Unmatched Engineering.


Don’t let the size fool you — the Z8 Series 8” subwoofer is built to perform well beyond expectations. With an incredible 2000 watts RMS and 4000 watts peak power handling, this compact beast is ready to drop low, hit hard, and take a beating — all while maintaining control and clarity. Designed for high-output systems with limited space, the Z8 offers the same elite-level engineering found in our larger Z Series drivers, packed into an 8-inch frame.

This sub is built around a black aluminum 3" 8-layer voice coil with a massive 30mm Xmax, giving it incredible excursion and power handling for its size. Every component is engineered for airflow and cooling: from the optimized high-velocity pole vent to the cast-aluminum vented frame spacer ring and heavily vented magnetic gap. Add in stitched XL tinsel leads, a Mega-Roll v.2 surround, custom spider packs, and a large aluminum Faraday ring, and you’ve got a sub that’s made for real-world abuse and long-term performance.

Designed specifically for ported enclosures (sealed not recommended), the Z8 thrives in a 1.0 cu. ft. net enclosure tuned to 32Hz. Whether you’re building a powerhouse daily driver or squeezing competition-level performance into a tight space, the Z8 delivers big bass in a small footprint — no compromises.

Features

  • Power Handling:2000 Watts RMS / 4000 Watts Peak
  • Xmax = 30mm
  • Heavily vented magnetic gap
  • Spring Loaded Terminals
  • Optimized high-velocity pole vent
  • Innovative high-velocity cast-aluminum vented frame spacer ring
  • Black aluminum 3 inch 8-layer voice coil
  • Mega-Roll v.2 surround
  • Custom tooled basket
  • Large aluminum Faraday (shorting) Ring
  • Stitched-On XL Tinsel Leads to prevent fatigue and failure
  • Custom-tooled ultra-linear spider packs

Specifications

T/S SPECS Z8 D1 Z8 D2
RE (Ohms) 2.08 3.515
FS (Hz) 43.592 44.198
VAS (L) 3.837 3.922
Qes 0.712 0.67
Qms 5.069 5.026
Qts 0.624 0.591
Le (mH) 1.677mH 2.992mH
BL (NA) 14.516 19.084
Mms (Grams) 263.02g 250.319g
Cms (uM/N) 50.68 uM/N 51.081 uM/N
Sens (dB @ 1w/1m) 78.24dB 78.77dB
Xmax 30mm 30mm

Enclosure Specifications

Sealed Enclosure Not Recommended
Ported Enclosure 1.0 cu.ft. net
Recommended Tuning 32Hz
Recommended Port Area 15 sq.in.
Displacement .12 cu. ft.
Depth 9.5"
Outside Diameter 10"
Cut-Out 8.2"
Physical Dimensions Physical Dimensions
