Sundown Audio Team10K | 10,000W RMS Class D Monoblock Amplifier
Undeniable Power. Proven Performance. Built for the Elite.
The Team10K represents the pinnacle of Sundown Audio’s amplifier engineering. Designed specifically for the needs of SPL competitors and high-output demo builds, this amplifier delivers a staggering 10,000 watts RMS at 1 ohm with precision and control. And for those who demand even more, the Team10K can be strapped to produce up to 20,000 watts RMS, making it a true heavyweight in the world of car audio.
At the core of the Team10K is a highly efficient Class D platform, paired with a dual MOSFET PWM power supply and a suite of intelligent protection systems. Whether you're pushing your system hard in the lanes or flexing in a demo, you can rely on stable, consistent output. Real-time monitoring through the wired remote keeps you informed with instant feedback on voltage, temperature, and clipping — giving you confidence and control no matter the environment.
With precise crossover tuning, rugged construction, and legendary Sundown reliability, the Team10K is purpose-built for serious enthusiasts who won’t compromise. It’s more than power — it’s performance you can trust, round after round, show after show. Step up to the Team10K and experience what top-tier amplifier engineering really sounds like.

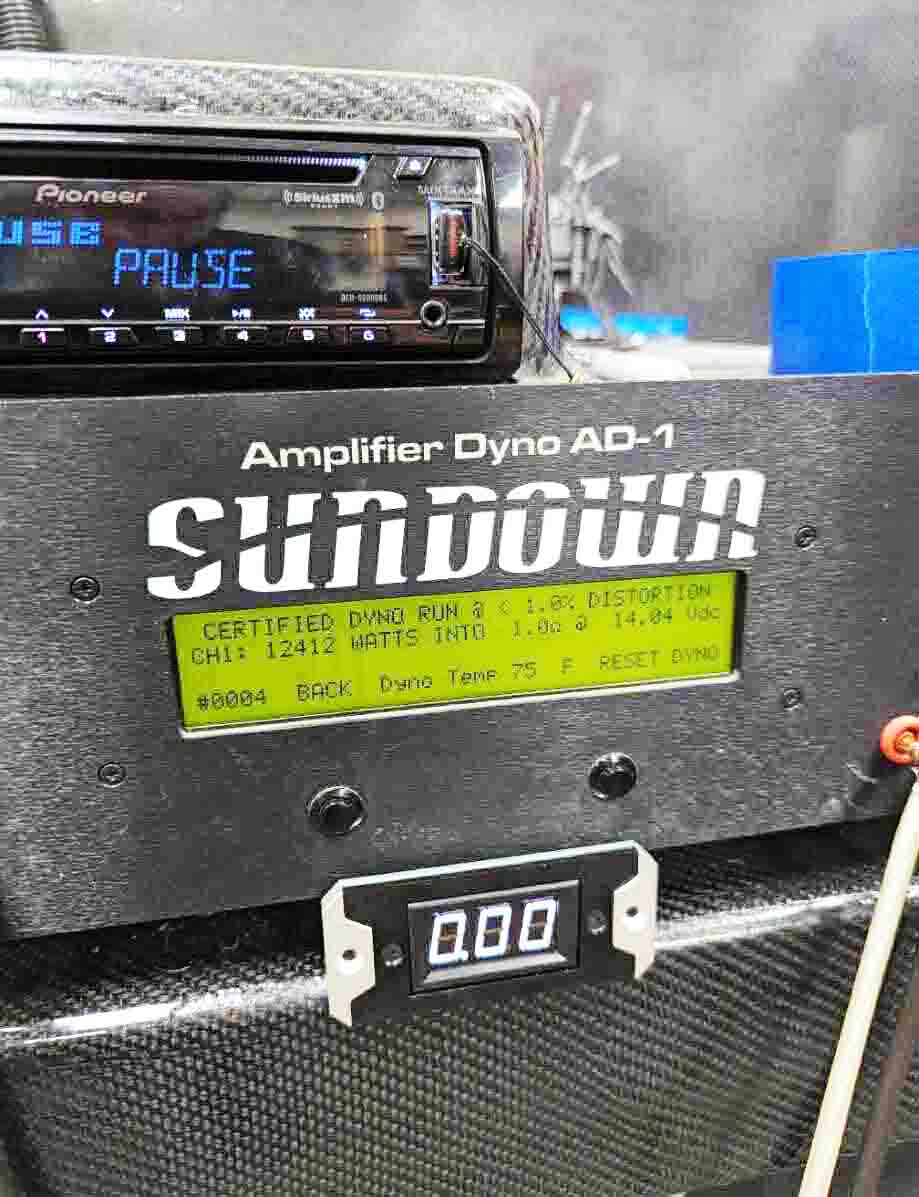

CERTIFIED DYNO RUN 12412W @1OHM (14.04 VDC)

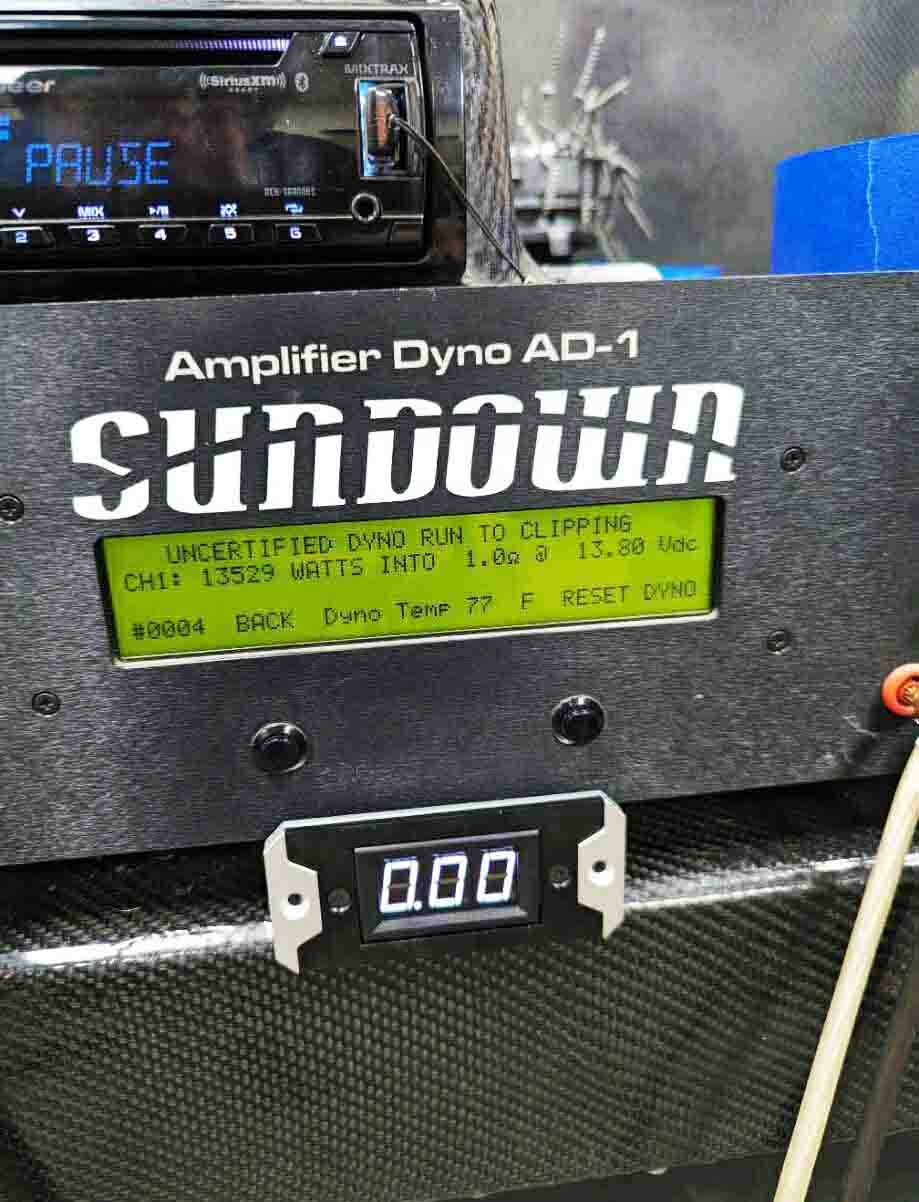

UNCERTIFIED DYNO RUN TO CLIPPING 13529W (13.8 VDC)

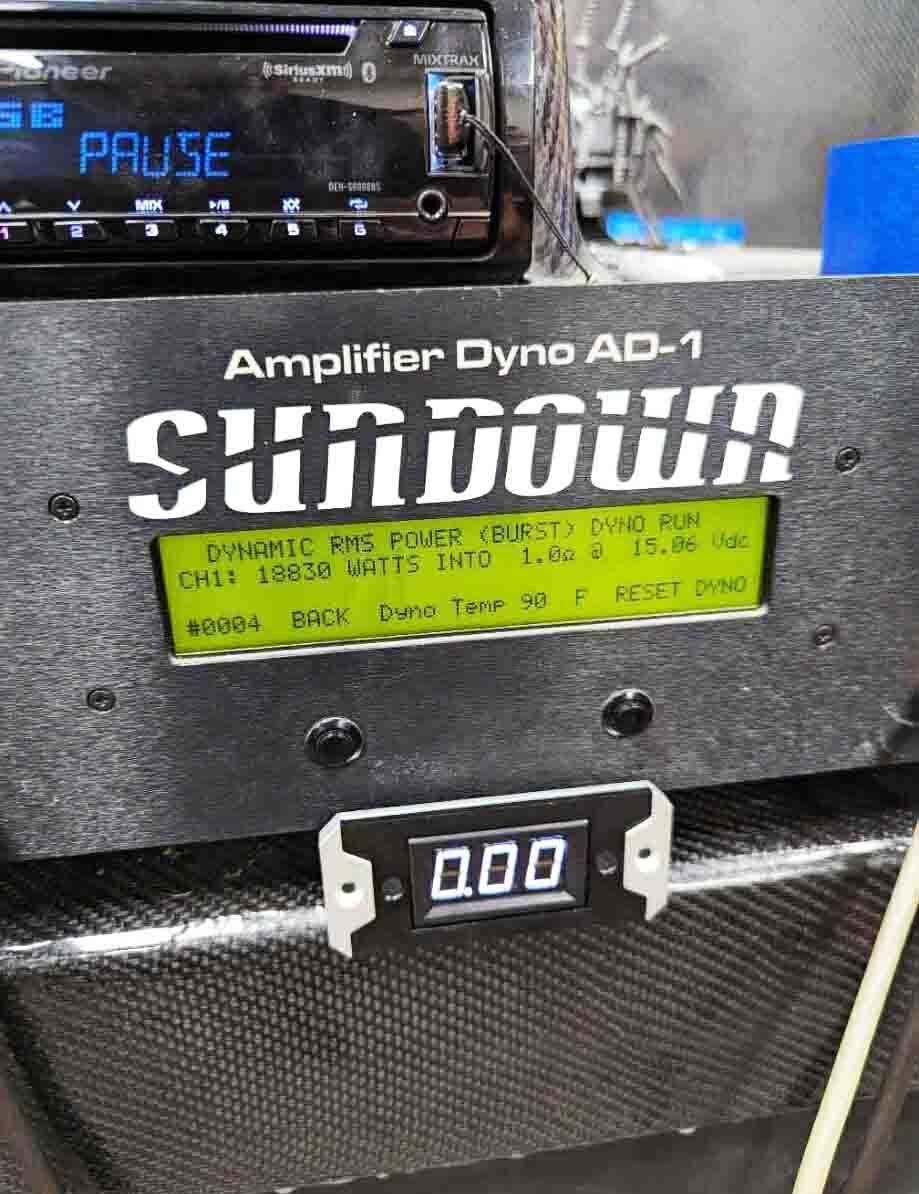

DYNAMIC RMS POWER 18830W @ 1OHM (15.06 VDC)

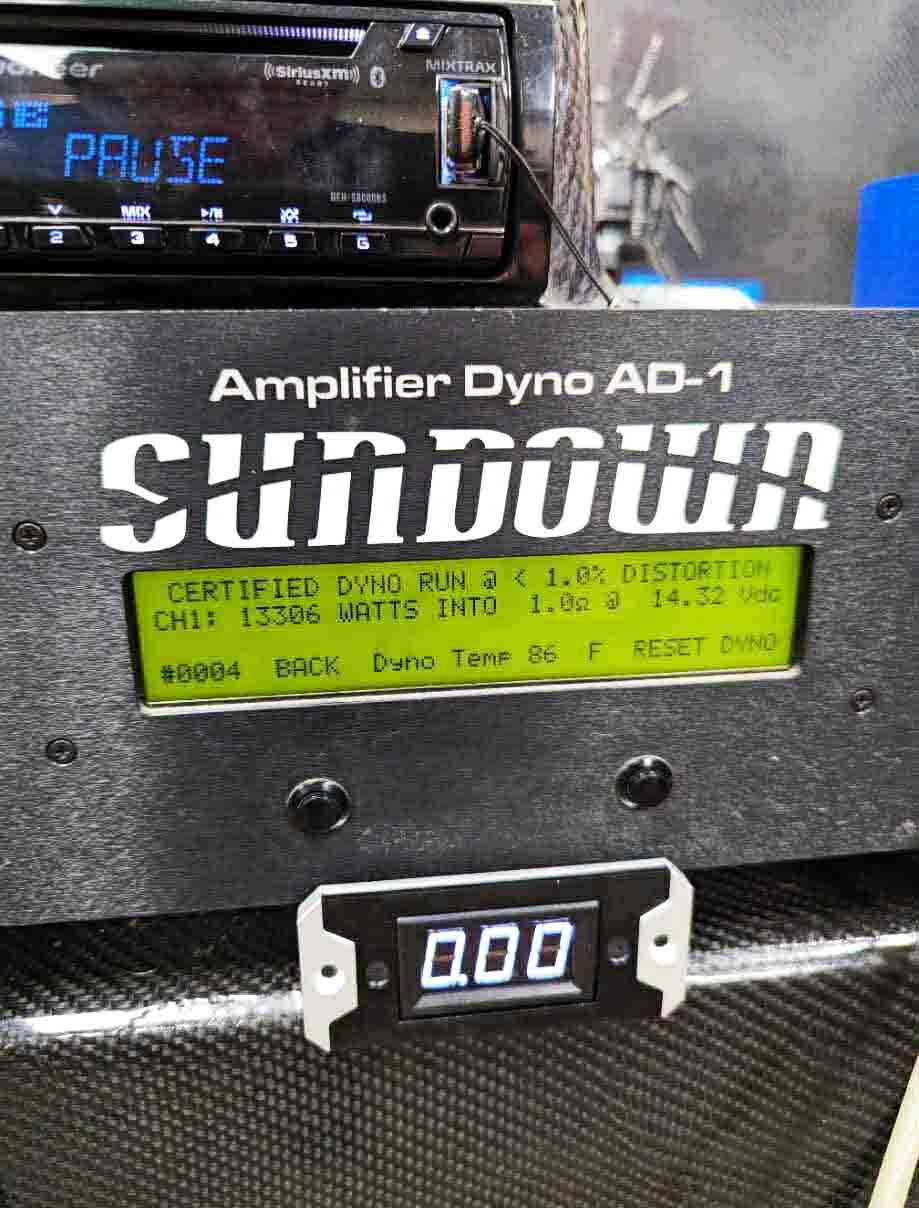

DYNAMIC RMS POWER 13306W @ 1OHM (14.32 VDC)
Technical Specifications:
Power Output (RMS @ 14.4V):
- 1 Ohm Mono: 10,000W
- 2 Ohm Mono: 7,000W
- 4 Ohm Mono: 4,000W
- 2 Ohm Strapped (Linked): 20,000W
General:
- Class D Digital Monoblock Design
- Dual MOSFET PWM Power Supply
- Efficiency: > 97% (at 4 Ohms)
- Input Sensitivity: 6V – 0.2V
- Frequency Response: 15Hz – 264Hz
- Signal-to-Noise Ratio: 91 dB
- Damping Factor: > 400
- THD: < 0.1%
- Working Voltage: 9V – 16.5V

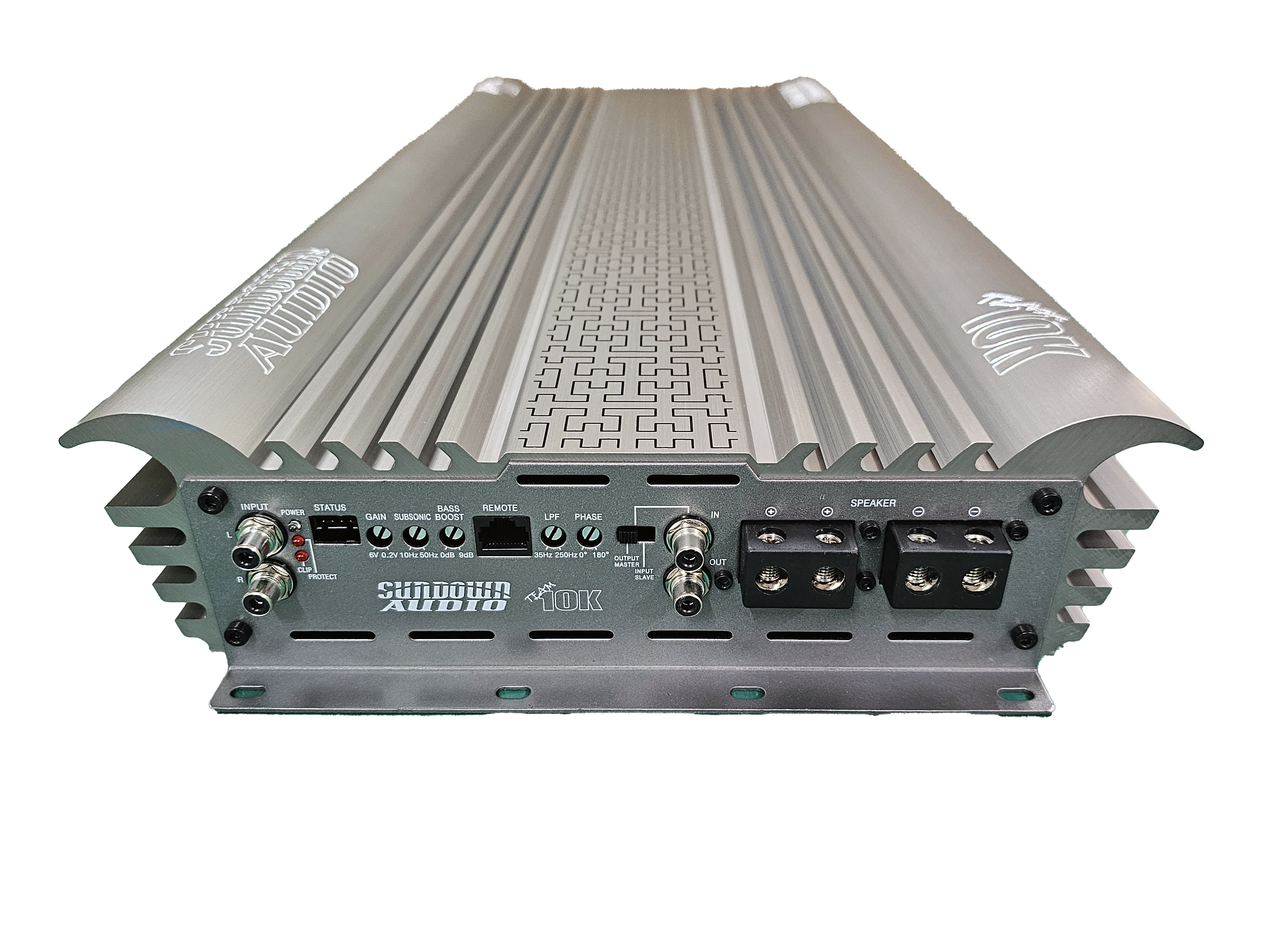

Controls & Filters:
- Low Pass Filter: 35Hz – 250Hz (24 dB/Oct)
- Subsonic Filter: 10Hz – 50Hz (24 dB/Oct)
- Bass Boost: 0 – 9 dB @ 45Hz
- Phase Shift: 0 – 180°
Connectivity & Extras:
- RCA Inputs/Outputs (for Master/Slave Linking)
- Wired Remote Control with:
- Voltage Display
- Temperature Display
- Clipping Indicator
Protection Features:
- Thermal
- Voltage
- Speaker Short
- DC Offset
Fuse Rating:
- 1000A (External – not built-in)
Dimensions:
- 27.55" (L) x 11.82" (W) x 3.06" (H)
