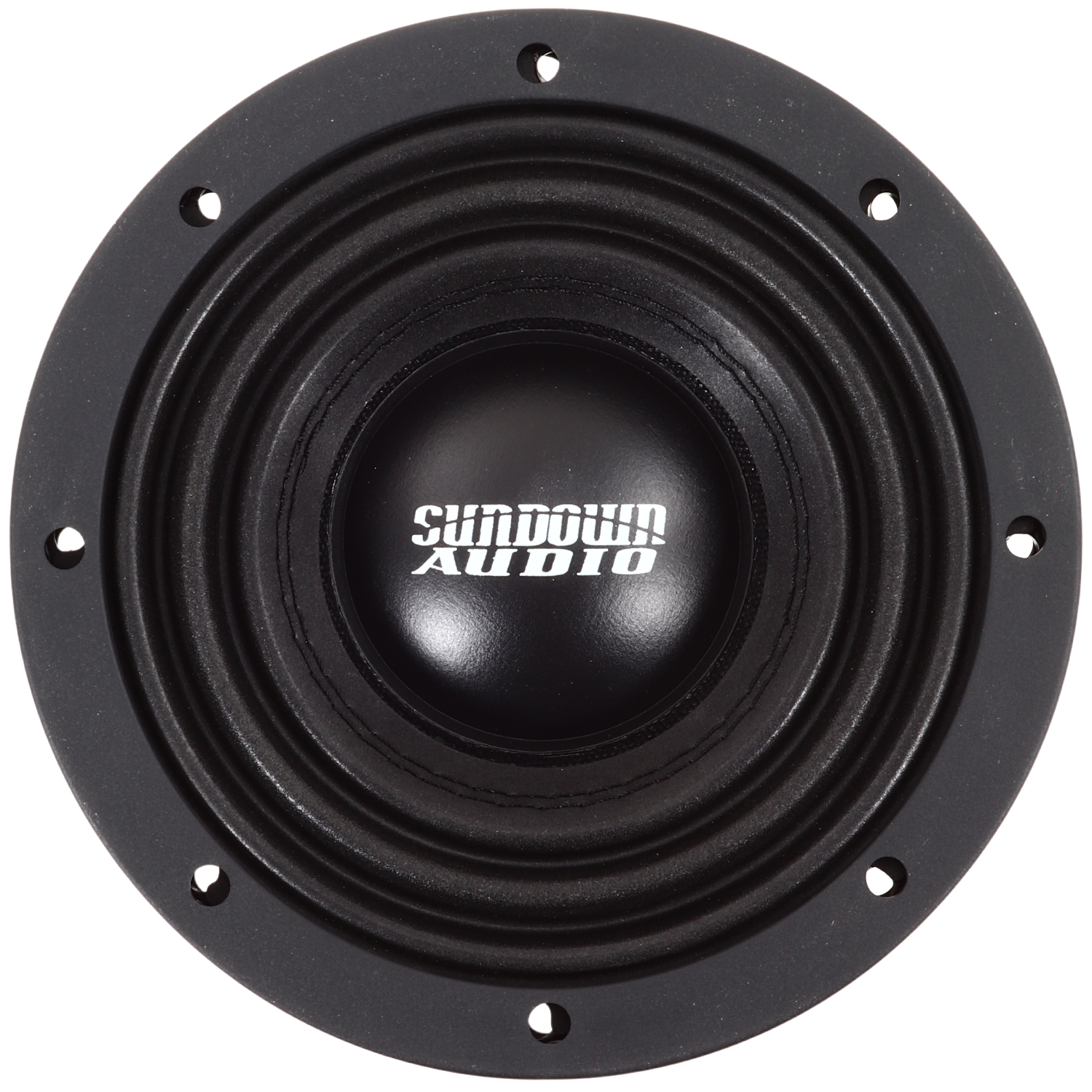

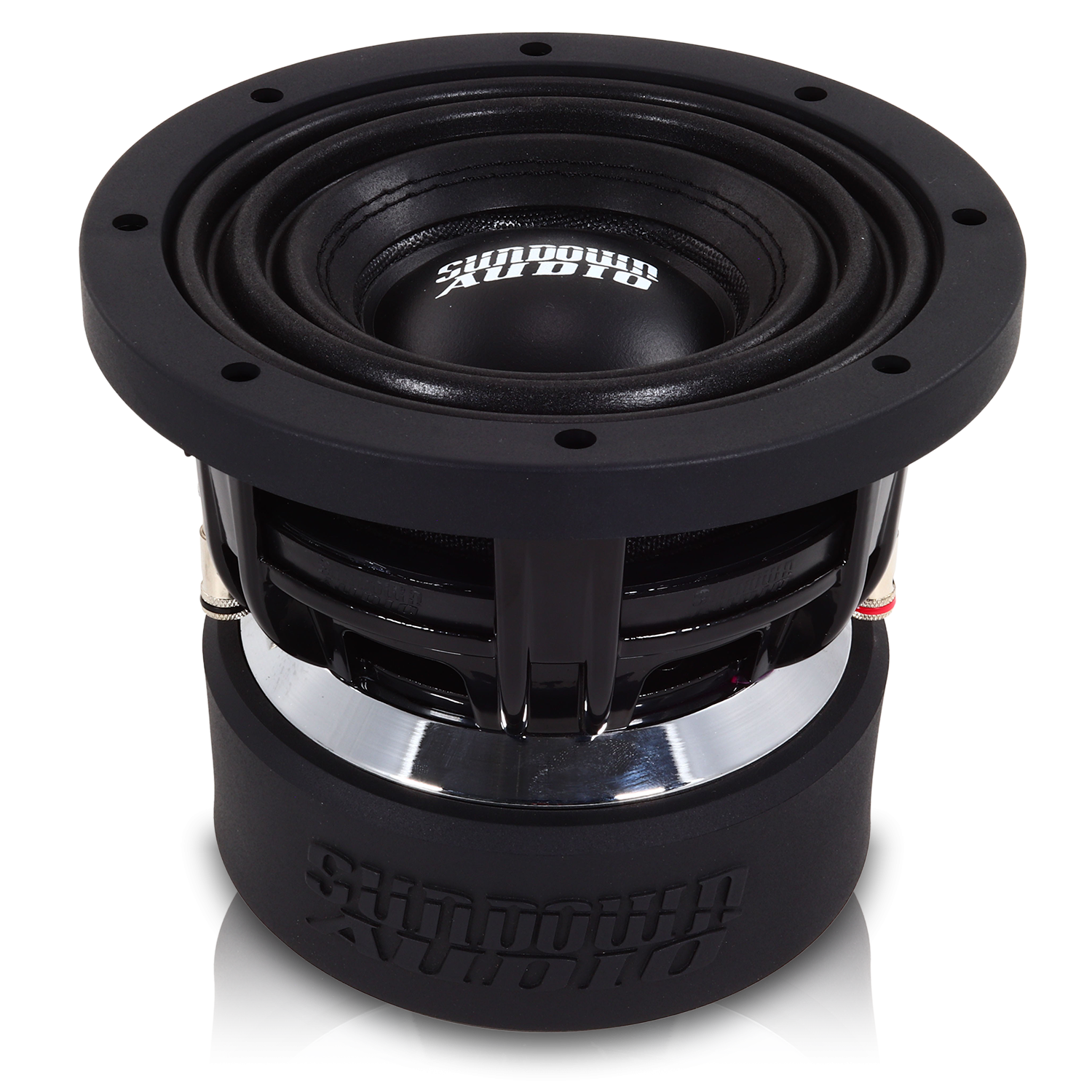

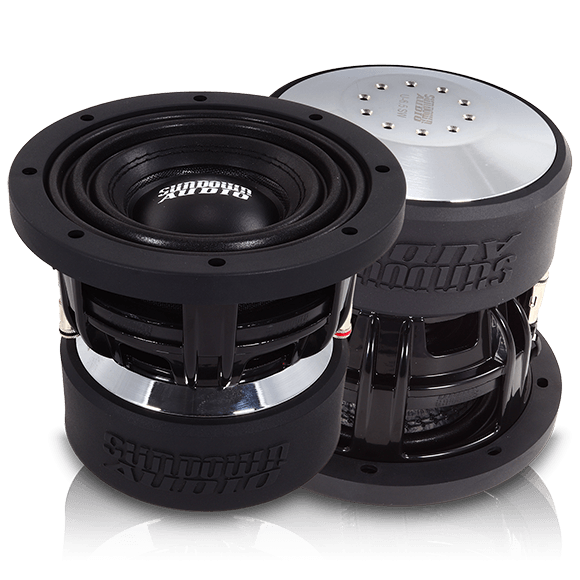

U-Series 6.5" v.1 Subwoofer
Regular price
$199.99 USD
Regular price
Shipping calculated at checkout.
- 500 Watts RMS/1000 Watts Peak
- Dual 2 or 4 ohm voice coils
- Optimized for small ported enclosures
- Aluminum 1.75” voice coil former for superior heat dissipation
- High-temperature copper voice coil
- Double stitched surround
- Heavy-duty cast basket
- Spring-loaded terminals accept up to 8-gauge wire
- Stitched-on heavy-duty tinsel leads
- Solid pole with vent channels and aluminum shorting ring cap
- Rear gap-venting
- Top-Plate Cooling Channels
Specifications
| RE (Ohms) | 4.0586 | 6.6274 |
| FS (Hz) | 41.9533 | 38.6925 |
| VAS (L) | 2.9053 | 3.7701 |
| Qes | 0.5238 | 0.5005 |
| Qms | 8.5834 | 7.2470 |
| Qts | 0.4937 | 0.4681 |
| Le (mH) | 4.0112 | 5.5892 |
| BL (NA) | 16.7428 | 20.0082 |
| Mms (Grams) | 137.2546 | 124.3518 |
| Cms (uM/N) | 104.8528 | 136.0613 |
| Sens (dB @ 1w/1m) | 77.8706 | 78.1460 |
| Xmax | 19mm | 19mm |
| T/S SPECS | U-6.5SW" D2 | U-6.5SW" D4 |
|---|
Enclosure Specifications
-
Ported Enclosure
-
Size: .25-.35 cu. ft. net
-
Port Area: 4-5 sq. in.
-
Port Tuning: 35hz -40hz
-
Size: .25-.35 cu. ft. net
-
Sealed Enclosure
-
Size: 0.125-0.2 cu. ft. net
-
Displacement: .04 cu. ft.
-
Size: 0.125-0.2 cu. ft. net
-
Depth: 5.71"
-
Outside Diameter: 7.17"
- Cutout: 5.94"
Specifications
| T/S Specs | |
|---|---|
RMS Power (D4) |
|
RMS Power (D2) |
|
Peak Power (D2) |
|
Peak Power (D4) |
|
RE D2 (Ohms) |
|
RE D4 (Ohms) |
|
FS D2 (Hz) |
|
FS D4 (Hz) |
|
VAS D2 (L) |
|
VAS D4 (L) |
|
Qes D2 |
|
Qes D4 |
|
Qms D2 |
|
Qms D4 |
|
Qts D2 |
|
Qts D4 |
|
Xmax D2 |
|
Xmax D4 |
|
| Subwoofer Measurements | |
Documentation |
|
Displacement (Inches) |
|
Depth (Inches) |
|
Cutout (Inches) |
|
Motor Diameter (Inches) |
|
| Ported Enclosure Specs | |
Ported Enclosure Size |
|
Recommended Port Area |
|
Recommended Port Tuning |
|
| Sealed Enclosure Specs | |
Sealed Enclosure Size |
|
| 4th Order Enclosure Specs | |
4th Order Sealed Side |
|
4th Order Ported Side |
|
4th Order Port Area |
|
4th Order Port Length |
|
