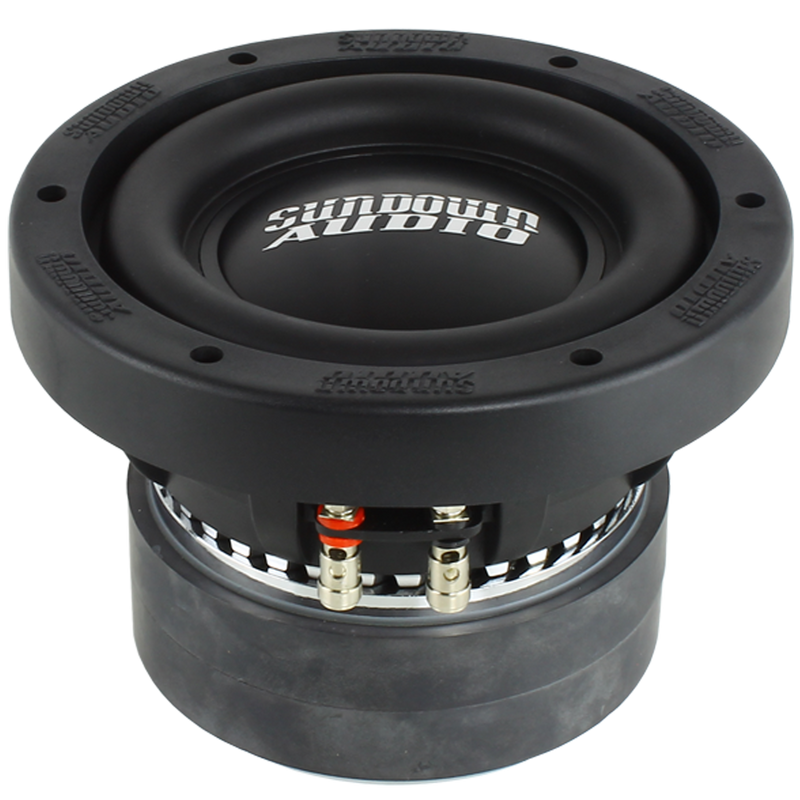

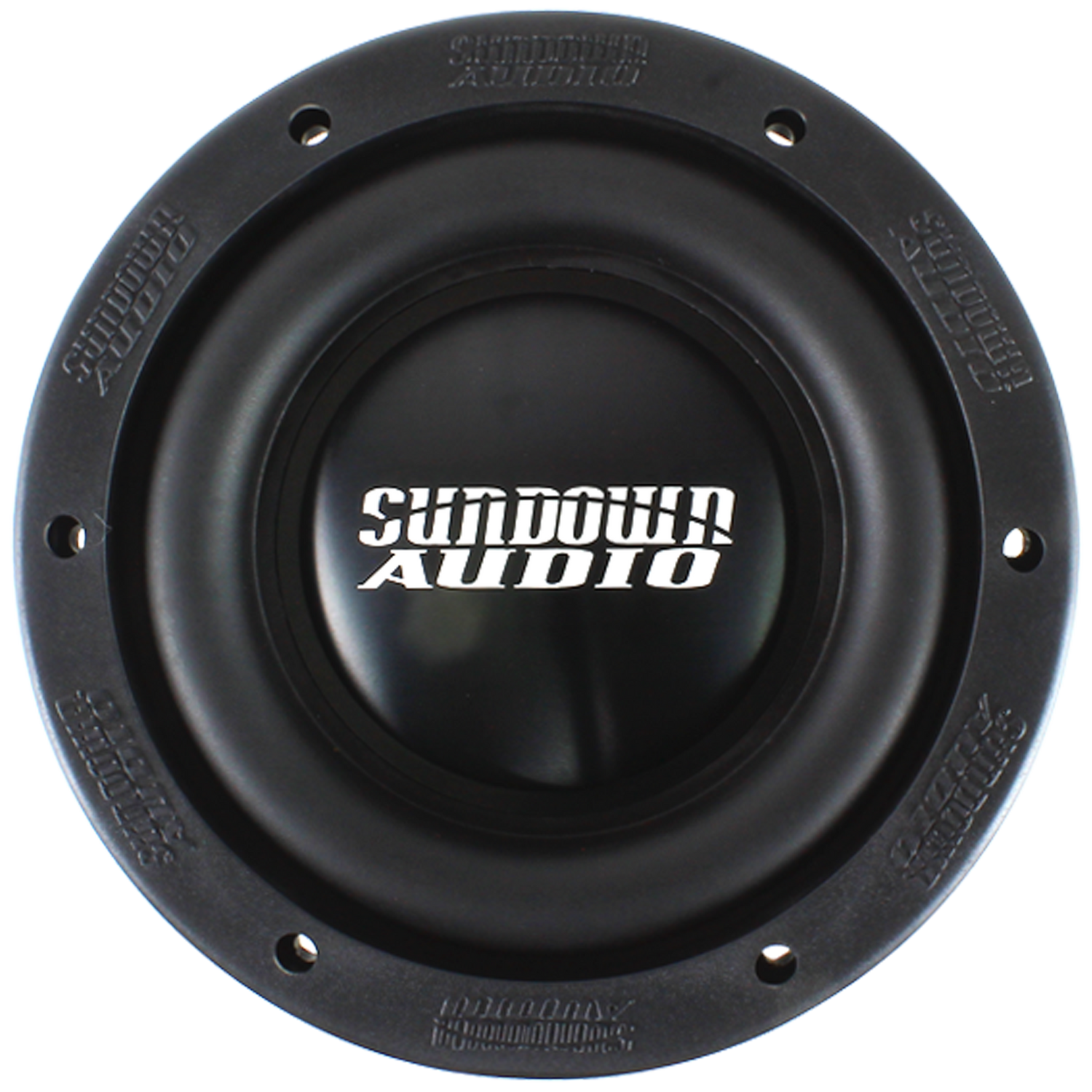

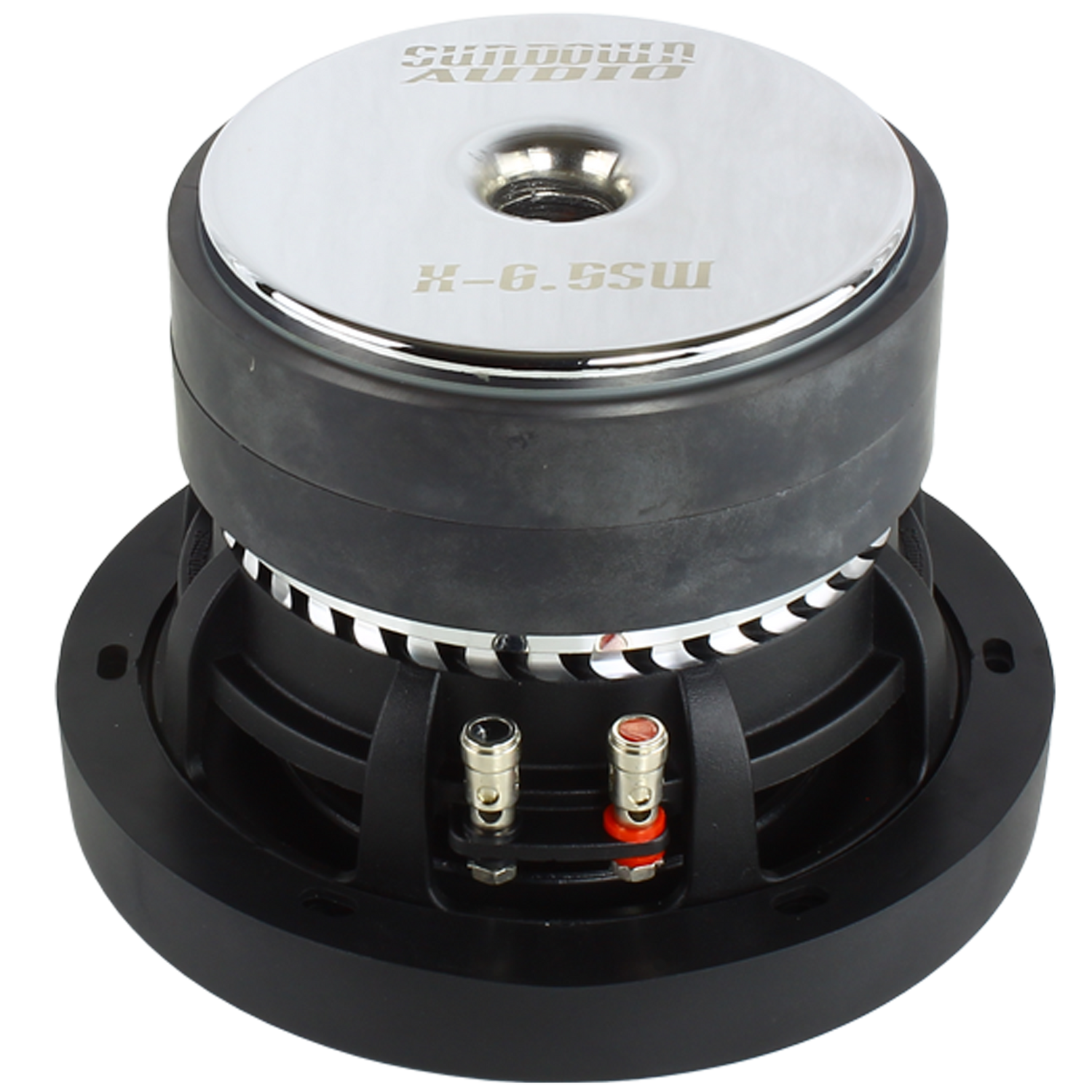

X-Series v.2 6.5" Subwoofer

Regular price $149.99 USD
Regular price $239.99 USD Sale price $149.99 USD
Shipping calculated at checkout.

  • RMS 400 watts
  • 4 ohm voice coil
  • Made for extremely deep bass
  • Triple-stacked magnet
  • 2.25” voice coil
  • Hyper-extended pole
  • Vented top plate
  • Built to order

Designed with an extended pole piece and an incredible four inches of peak-to-peak excursion, the X v.2 is engineered for ultra-deep bass and high power handling. Engineered to set a new standard in the low-frequency/small-ported-box subwoofer category, the X Series can also work in up to a 50% larger enclosure if you desire even more low-end extension.

The X v.2 series differentiates itself with its incredibly linear suspension, ensuring the lowest level of bass extension in a small enclosure while maintaining extremely low levels of distortion. Notably, the v.2 series features a much larger motor structure (220mm vs. 190mm on the V.1 series), improved motor ventilation, and an all-new Mega-Roll v.2 surround, providing a more linear and rugged update to the world-famous Mega-Roll v.1 surround design.

Specifications

RE (Ohms) 2.9
FS (Hz) 55.778
VAS (L) 1.657
Qes 0.619
Qms 9.255
Qts 0.581
Le (mH) 0.60
BL (NA) 11.702
Mms (Grams) 83.452
Cms (uM/N) 97.561
Sens (dB @ 1w/1m) 78.5db
Xmax 16mm
T/S SPECS X 6.5″ S4

Enclosure Specifications

X 6.5″ S4
Sealed Enclosure .15 cu. ft.
Ported Enclosure 0.25cuft – 0.4 cu. ft. NET
Recommended Tuning 35-45hz
Recommended Port Area 3.5-6 sq in
Displacement 0.03 cu ft
Depth
Outside Diam.
Cutout

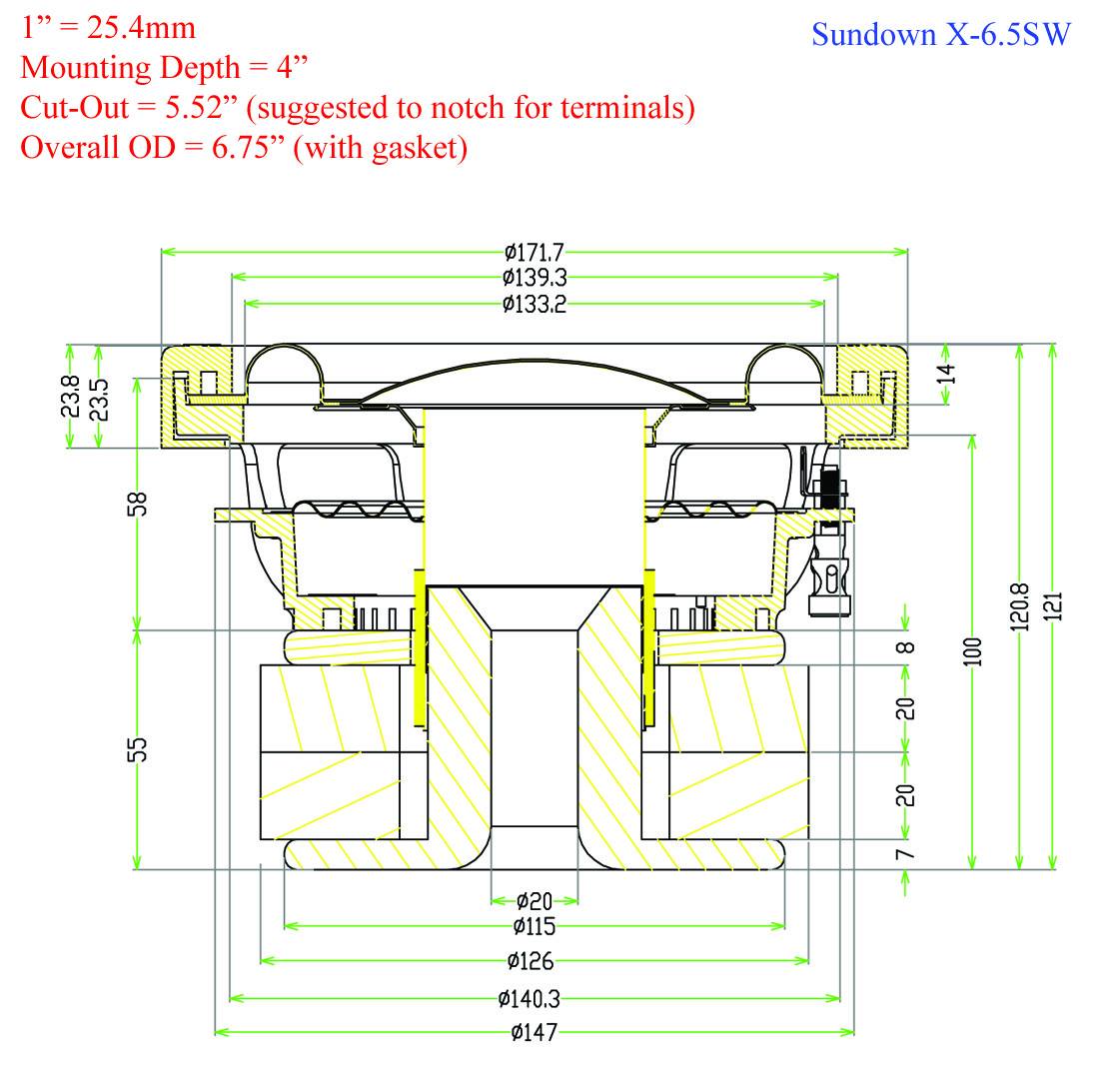

Physical Dimensions Download



Specifications
