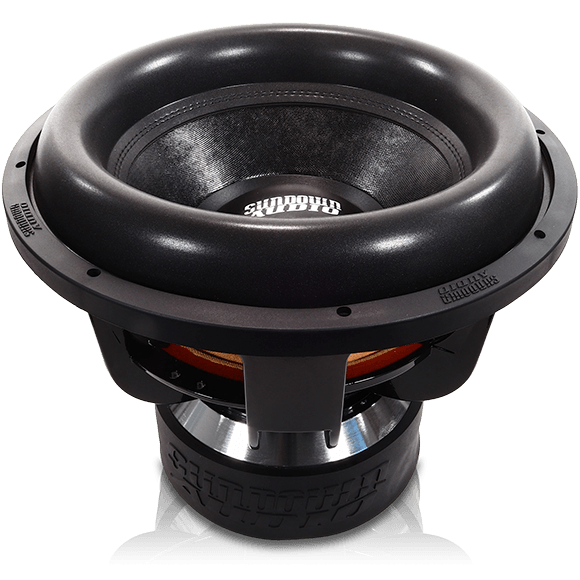

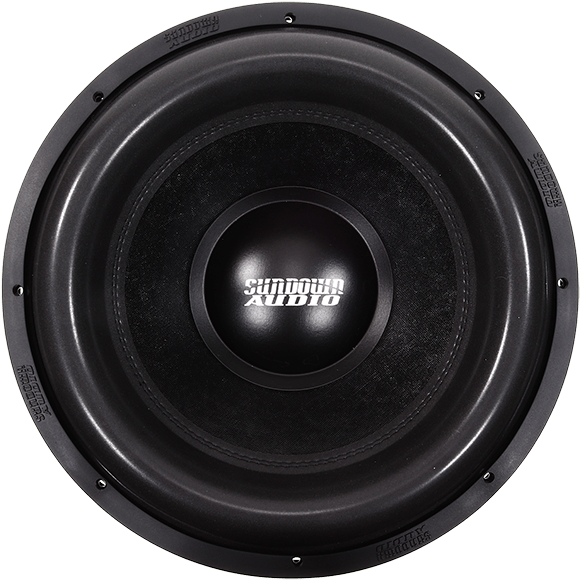

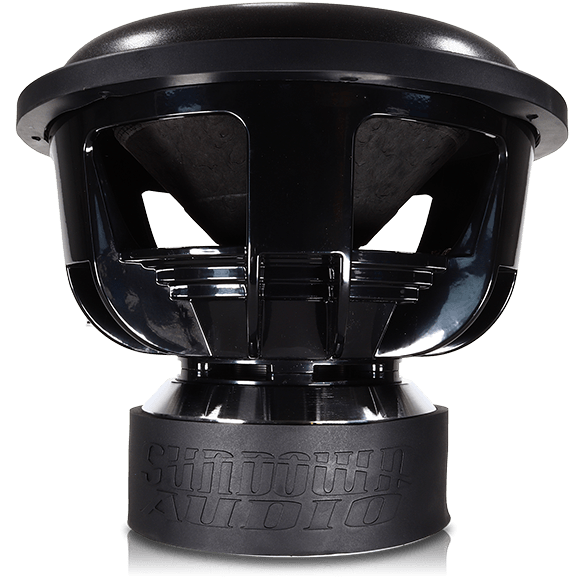

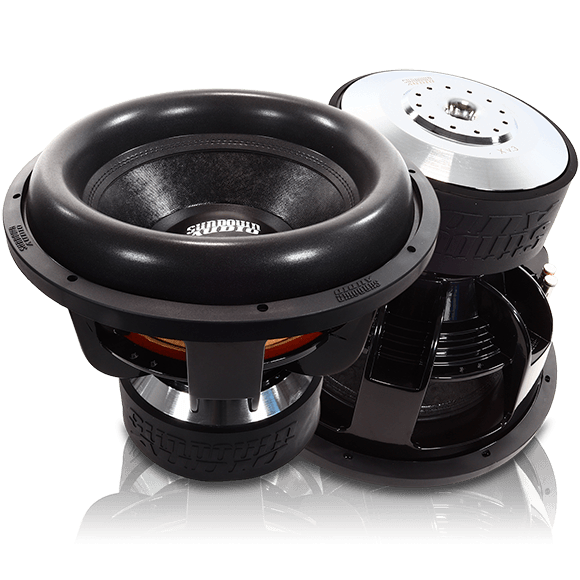

X-Series v.3 15" Subwoofer

• 2500 Watts RMS / 5000 Watts Peak

• Dual 1 or 2 ohm voice coil
• Made for extremely deep bass
• Triple-stacked magnet
• 3” voice coil
• Hyper-extended pole
• Built to order

Designed with an extended pole piece and an incredible four inches of peak-to-peak excursion, the X v.3 is engineered for ultra-deep bass and high power handling. Engineered to set a new standard in the low-frequency/small-ported-box subwoofer category, the X Series can also work in up to a 50% larger enclosure if you desire even more low-end extension.

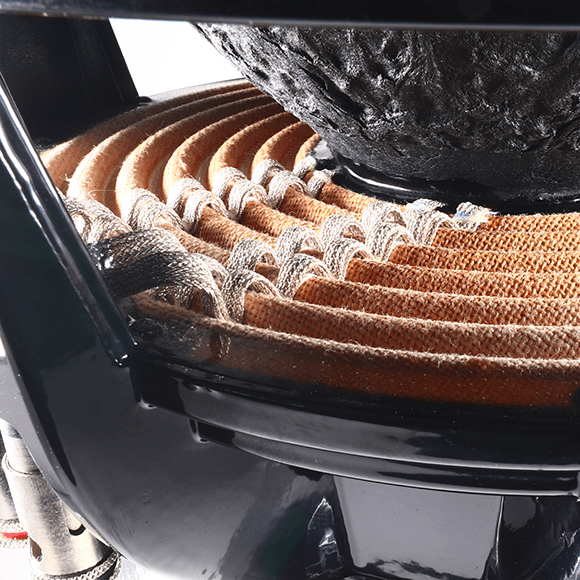

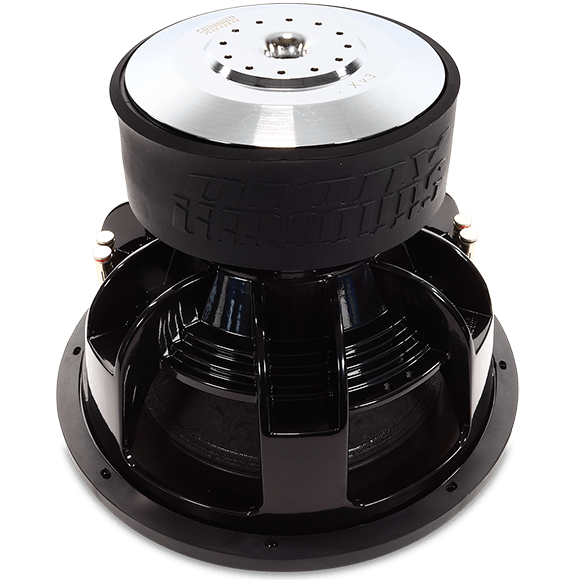

The X v.3 series differentiates itself with its incredibly linear suspension, ensuring the lowest level of bass extension in a small enclosure while maintaining extremely low levels of distortion. Notably, the v.3 series features a much larger motor structure (220mm vs. 190mm on the V.1 series), improved motor ventilation, and an all-new Mega-Roll v.2 surround, providing a more linear and rugged update to the world-famous Mega-Roll v.1 surround design.

Specifications

T/S SPECS	X V.3 15″ D1	X V.3 15″ D2
RE (Ohms)	1.4	3.2
FS (Hz)	31.418	31.423
VAS (L)	45.907	45.924
Qes	0.486	0.561
Qms	2.562	2.801
Qts	0.409	0.468
Le (mH)
BL (NA)	15.518	21.831
Mms (Grams)	423.721	423.436
Cms (uM/N)	60.563	60.585
Sens (dB @ 1w/1m)	86.5dB	85.9dB
Xmax	30mm	30mm

Enclosure Specifications

	X v.3 15
Sealed Enclosure	N/A
Ported Enclosure	4.25 cu ft
Recommended Tuning	32hz
Recommended Port Area	68 sq in
Displacement	0.22 cu ft
Depth	11.6"
Outside Diam.	15.51"
Cutout	13.83"
Physical Dimensions	Download

Enclosure Designs

.Zip File
