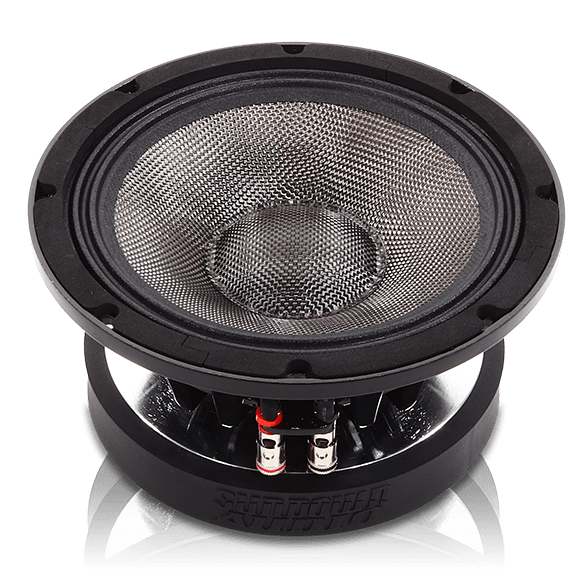

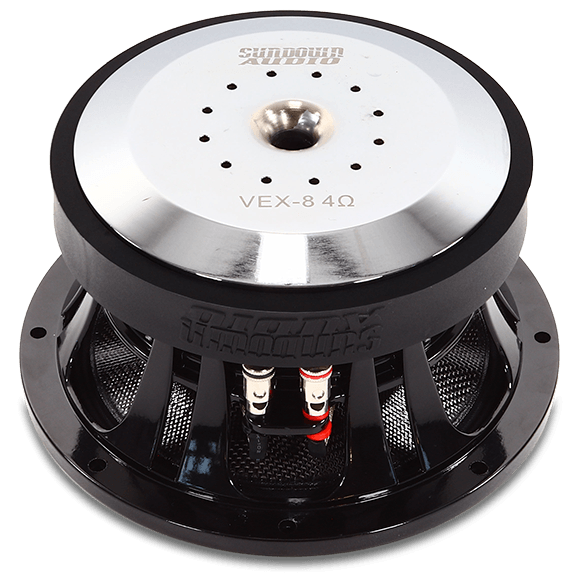

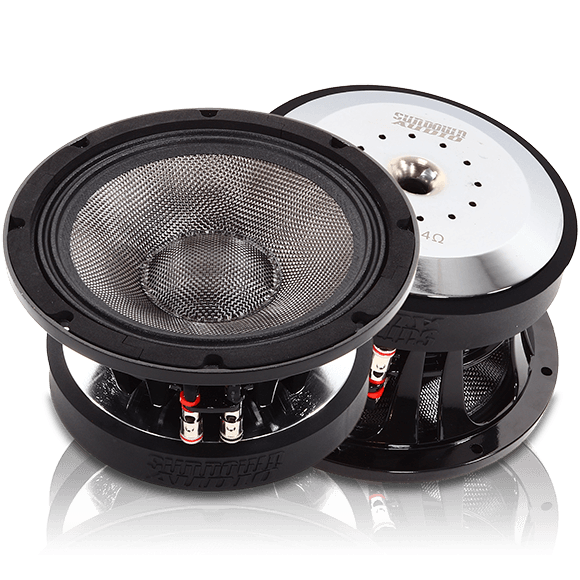

VEX-8 300 Watt Pro Audio Midrange Speaker
- Power Handling: 300 Watts RMS
- Impedance: 4/8-ohm SVC
- Vented cast frame
- 2.5-inch voice coil
- X-Max: 9mm
- Carbon fiber cone
- Excellent for Mid-bass
- High strength ferrite motor
- Dual shorting rings for smooth response
- Mounting depth : 4"
- Rear Vented

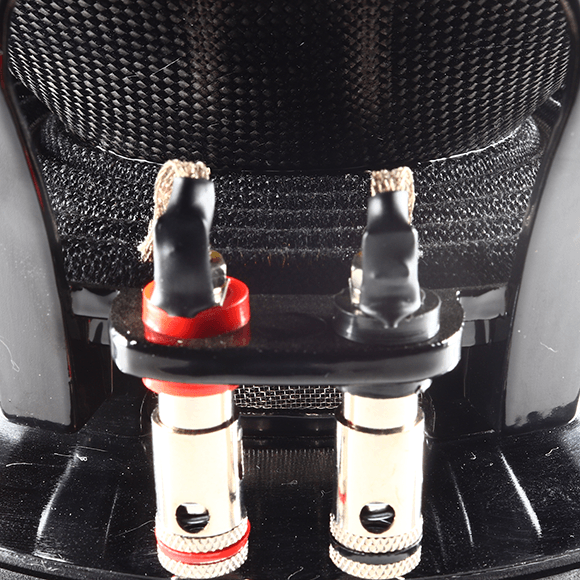

- Spring Loaded Terminals
With an enormous 2.5” voice coil and a super-efficient cooling system, the VEX handles 300 watts of power with ease. We went with real carbon-fiber cone to handle high SPL systems without breakup, and achieved a 94.3dB sensitivity by combining a large diameter, high strength ferrite motor with a neodymium pole-cap magnet! A sturdy cast-aluminum frame features extensive spider cavity vents to further increase thermal power handling. The Sundown Audio VEX is one of the loudest, best sounding high-efficiency midrange drivers in existence.
Specifications
| T/S SPECS | VEX-8 S8 OHM |
|---|---|
| RE (Ohms) | 6.000 |
| FS (Hz) | 90.592 |
| VAS (L) | 5.861 |
| Qes | 0.249 |
| Qms | 3.539 |
| Qts | 0.232 |
| BL (NA) | 22.995 |
| Mms (Grams) | 38.524 |
| Cms (uM/N) | 80.119 |
| Sens (dB @ 1w/1m) |
94.3dB |
Frequency Response
Specifications
| Specifications | |
|---|---|
RE (Ohms) |
|
FS (Hz) |
|
VAS (L) |
|
Qes |
|
Qms |
|
Qts |
|
BL (NA) |
|
Mms (Grams) |
|
CMS (uM/N) |
|
Sens (dB @ 1w/1m) |
|
