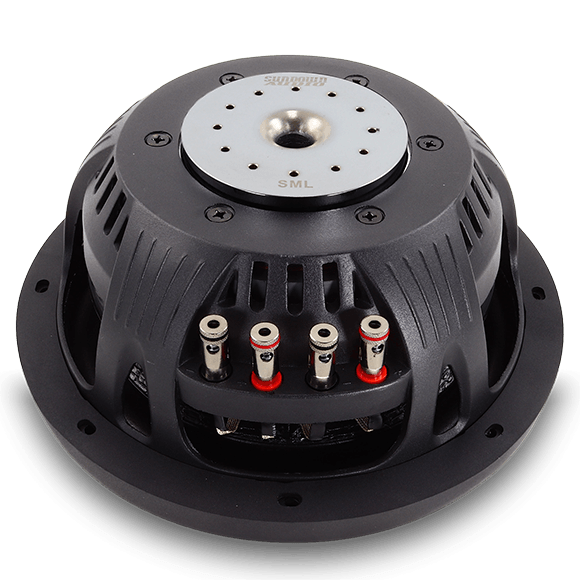

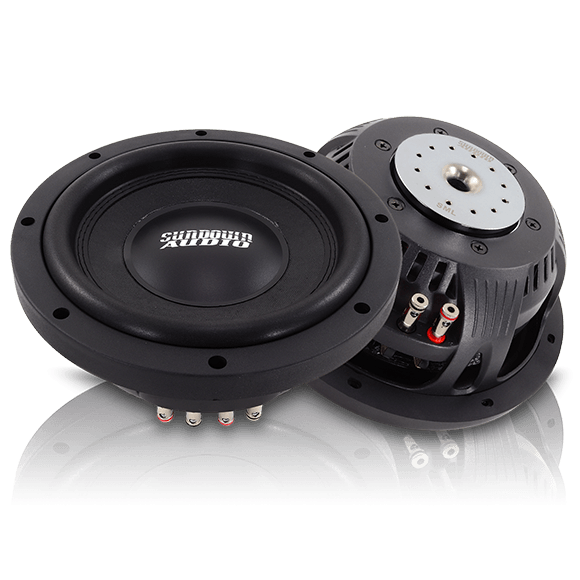

SML-Series 10” Thin Subwoofer
Regular price
$239.99 USD
Regular price
Shipping calculated at checkout.
- 600 Watts RMS/1200 Watts Peak
- Dual 2 or 4 ohm voice coils
- Black Aluminum 2.5” voice coil former for superior heat dissipation
- High temperature 4-layer copper voice coil wire

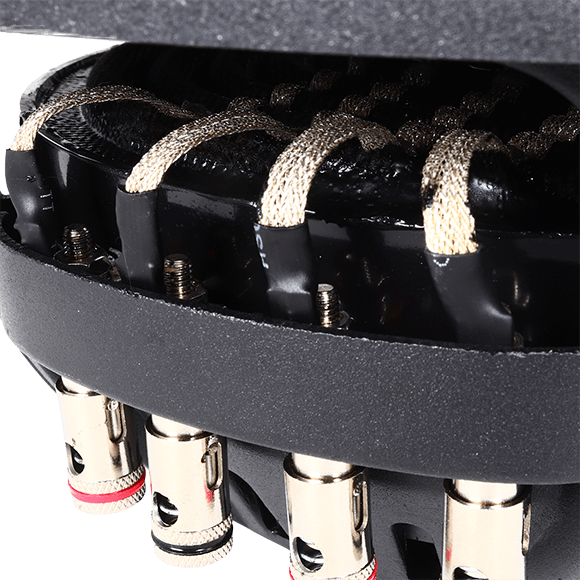

- Stitched-on “Mini-XL” tinsel Leads to prevent fatigue and failure
- Vented pole-piece and vented magnetic gap
- Dual-magnet design for smooth acoustic response
- Custom tooled cone shape for reduced mechanical noise over high excursion
- Bolt-through motor design to ensure maximum longevity and ruggedness
The SML series is a revolutionary line of subwoofers offered by Sundown Audio. An inch shallower than our SLD series, it delivers nearly the excursion, making it an ideal choice for customers seeking an extremely shallow driver with deep bass. Designed to fit under or behind your seat, the SML series performs exceptionally well in small enclosures.
Specifications
| RE (Ohms) | 3.650 | 6.850 |
| FS (Hz) | 35.210 | 36.116 |
| VAS (L) | 23.679 | 24.828 |
| Qes | 0.931 | 0.469 |
| Qms | 2.703 | 2.766 |
| Qts | 0.341 | 0.401 |
| BL (NA) | 17.431 | 21.022 |
| Mms (Grams) | 146.986 | 133.242 |
| Cms (uM/N) | 139.003 | 145.749 |
| Sens (dB @ 1w/1m) | 86.1dB | 85.8dB |
| Xmax | 14mm | 14mm |
| T/S SPECS | SML 10" D2 | SML 10" D4 |
|---|
Specifications
| T/S Specs | |
|---|---|
RMS Power (D4) |
|
RMS Power (D2) |
|
Peak Power (D2) |
|
Peak Power (D4) |
|
RE D2 (Ohms) |
|
RE D4 (Ohms) |
|
FS D2 (Hz) |
|
FS D4 (Hz) |
|
VAS D2 (L) |
|
VAS D4 (L) |
|
Qes D2 |
|
Qes D4 |
|
Qms D2 |
|
Qms D4 |
|
Qts D2 |
|
Qts D4 |
|
Le D4 (mH) |
|
BL D2 (NA) |
|
BL D4 (NA) |
|
Mms D2 (Grams) |
|
Mms D4 (Grams) |
|
Cms D2 (uM/N) |
|
Cms D4 (uM/N) |
|
Sens D2 (dB @ 1w/1m) |
|
Sens D4 (dB @ 1w/1m) |
|
Xmax D2 |
|
Xmax D4 |
|
| Subwoofer Measurements | |
Documentation |
|
Displacement (Inches) |
|
Depth (Inches) |
|
Motor Diameter (Inches) |
|
| Ported Enclosure Specs | |
Ported Enclosure Size |
|
Recommended Port Area |
|
Recommended Port Tuning |
|
| Sealed Enclosure Specs | |
Sealed Enclosure Size |
|
| 4th Order Enclosure Specs | |
4th Order Sealed Side |
|
4th Order Ported Side |
|
4th Order Port Area |
|
4th Order Port Length |
|
