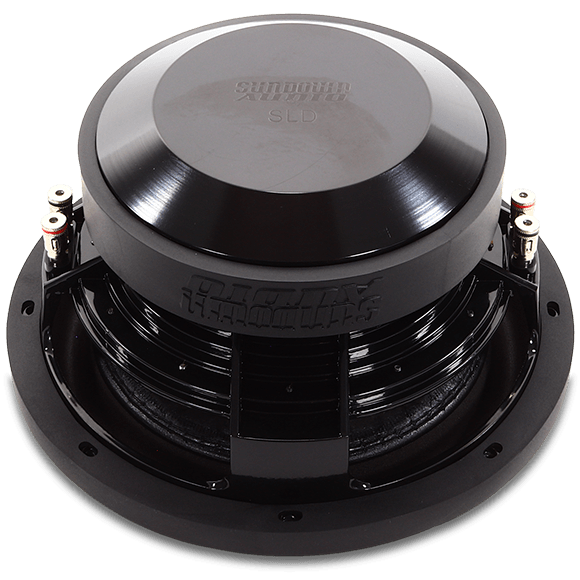

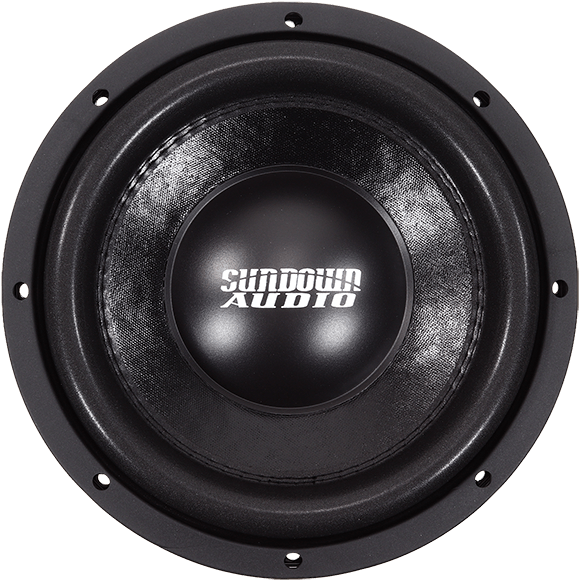

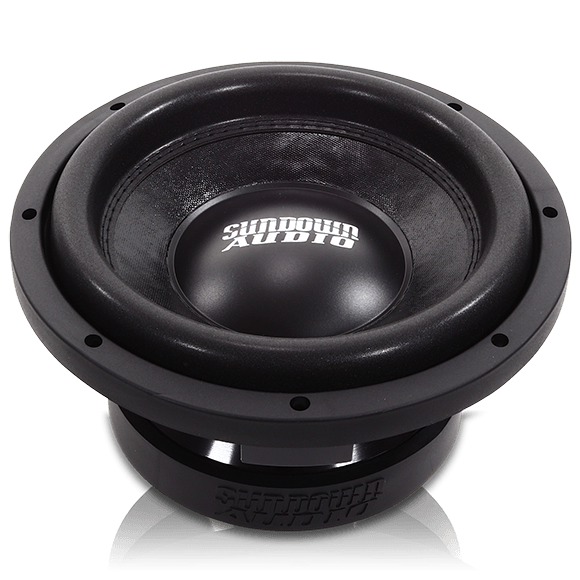

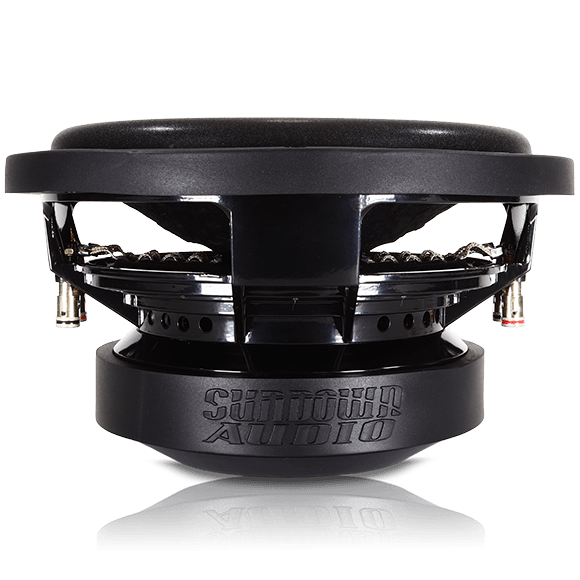

SLD-Series SD-2 10" Shallow Subwoofer
Notice On Packaging For Subwoofers
Sundown Audio has led the industry in quality and performance for over a decade. To improve accuracy and transparency, we have updated our subwoofer power ratings to reflect true real-world performance.
During this transition, some packaging may show previous ratings. Performance fully aligns with our current published specifications. If you have any questions about authenticity or ratings, please contact directly for confirmation.
- 600 Watts RMS/1200 Watts Peak
- Dual 2 or 4 ohm voice coils
- Black Aluminum 2.5” voice coil for superior heat dissipation
- High-temperature 4-layer copper voice coil wire

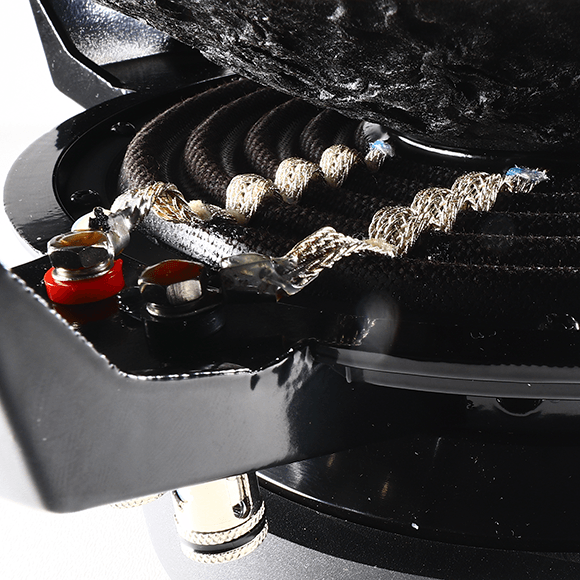

- Stitched-on “Mini-XL” tinsel leads to prevent fatigue and failure
- Solid pole-piece and multi-vent magnetic gap
- Dual-magnet design for smooth acoustic response
- Custom tooled cone shape for reduced mechanical noise over high excursion
- Bolt-through motor design to ensure maximum longevity and ruggedness
Sundown’s highest-power slim subwoofers, the SLD takes incredibly high volume by introducing numerous important upgrades: pole-piece channels for reduced air noise & increased cooling, top-plate “slits” for better cooling and less distortion, and a magnet shorting ring. Sundown also bolted down the spider, bolted the motor together, bolted on the aluminum pole cap, and added “mini-XL” lead wires for years of flawless service.
| Specification | SLD-10 D2 | SLD-10 D4 |
|---|---|---|
| Fs | 44.90 Hz | 46.82 Hz |
| Re | 3.65 Ω | 6.85 Ω |
| Qms | 2.2120 | 2.2460 |
| Qes | 0.4500 | 0.5470 |
| Qts | 0.3760 | 0.4400 |
| Mms | 146.25 g | 162.82 g |
| Cms | 85.88 µm/N | 70.98 µm/N |
| Sd | 506.6 cm² | 506.6 cm² |
| Vas | 14.63 L | 12.09 L |
| Sensitivity | 86.5 dB | 85.4 dB |
| BL | 18.247 T·m | 24.492 T·m |
| X-Max | 12 mm | 12 mm |
| RMS Power | 600 W | 600 W |
| Peak Power | 1200 W | 1200 W |
| Specification | SLD-10 D2/D4 |
|---|---|
| Overall Diameter | 10.5" |
| Cutout Diameter | 9.4" |
| Motor Diameter | 7.4" |
| Mounting Depth | 4.9" |
| Displacement | 0.05 Cu. Ft. |
| Sealed Volume | 0.5 cu ft |
| Ported Volume | 1 cu ft |
| Port Tuning | 35 Hz |
| Port Area | 15 sq in |
| 4th Order Sealed | 0.4 cu ft |
| 4th Order Ported | 1.2 cu ft |
| 4th Order Port Area | 24 sq in |
| 4th Order Port Length | 6" |
