SA-Classic 10" Subwoofer

$319.99 USD
$319.99 USD
Shipping calculated at checkout.

Impedance: D4
  • 1000 Watt RMS/ 2000 Watt Peak
  • Dual 2 or 4 ohm voice coils
  • Optimized for small ported, sealed, & band-pass enclosures
  • Large aluminum Faraday ring for smooth acoustic response
  • High strength cast aluminum frame
  • Low distortion motor construction
  • High-temperature voice coil wire
  • Spring-loaded terminals

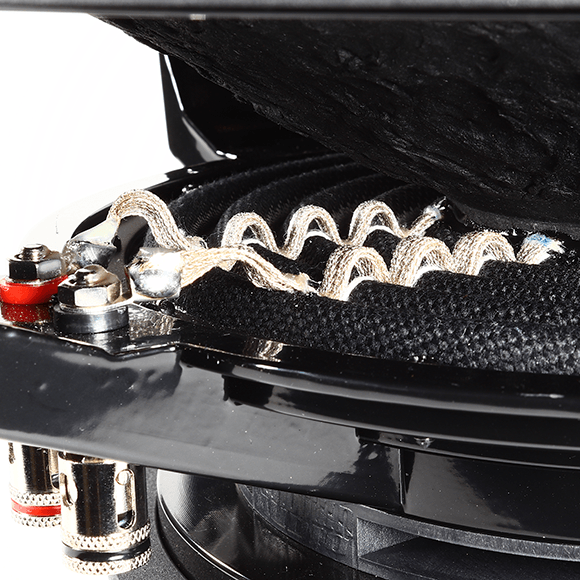

  • Stitched-on “XL” tinsel lead wires



The SA Classic sub is the perfect combination of power handling and deep excursion. A cast aluminum frame houses a bulletproof custom 2.5-inch voice coil, robust double-layered Nomex spider, and SPL competition-grade paper cone, all built into a flexible design that works in any kind of enclosure.

Specifications

RE (Ohms) 4.29 7.08
FS (Hz) 35.4 36.6
VAS (L) 10.13 10.66
Qes 0.52 0.54
Qms 5.41 5.30
Qts 0.48 0.49
Le (mH) 3.41 4.71
BL (NA) 20.40 24.82
Mms (Grams) 230 205
Cms (uM/N) 87.8 92.4
Sens (dB @ 1w/1m) 81.0 81.6
Xmax 19mm 19mm
T/S SPECS SA CLASSIC 10" D2 SA CLASSIC 10" D4

Enclosure Specifications

SA CLASSIC 10"

Sealed Enclosure 0.5 cu ft
Ported Enclosure 1.0 cu ft
Recommended Tuning 35Hz
Recommended Port Area 15 sq in
Displacement 0.1 cu ft
Depth 6″
Outside Diameter 10.5″
Cut-Out 9.25″
Physical Dimensions Download

Enclosure Designs
.Zip File
Specifications
