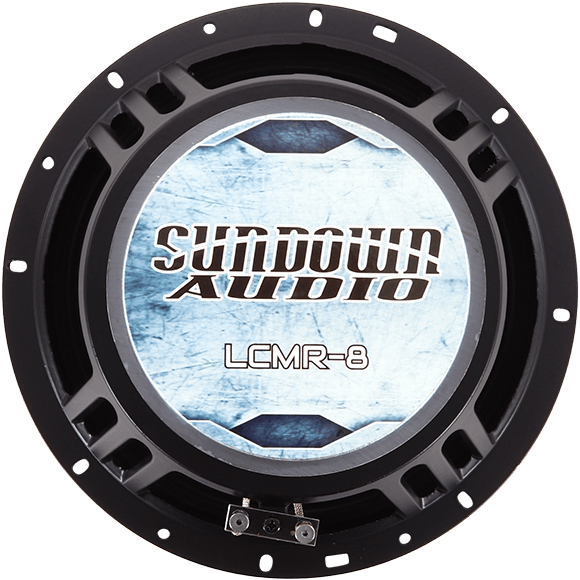

Product image 1, can be opened in a modal.

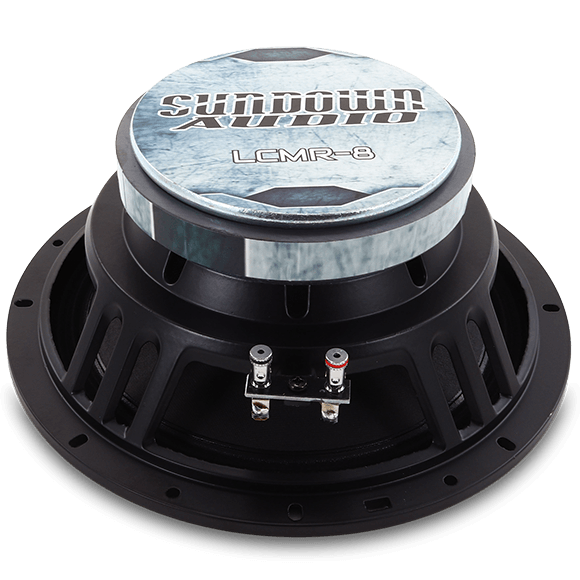

Product image 2, can be opened in a modal.

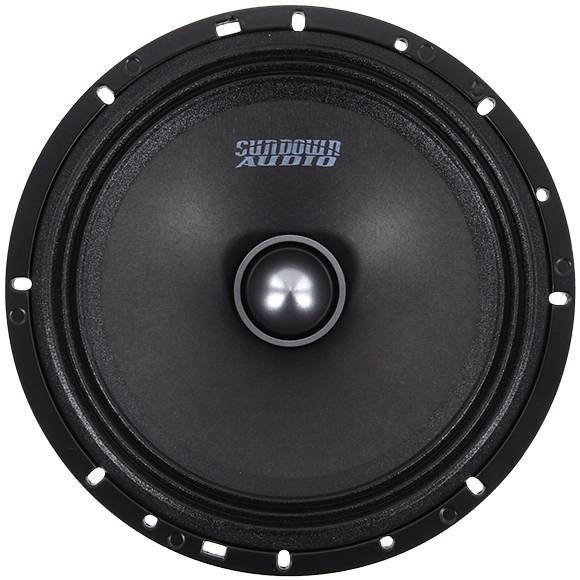

Product image 3, can be opened in a modal.

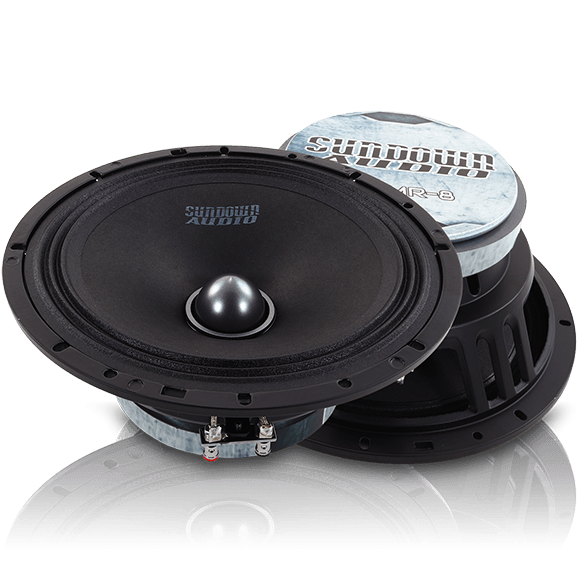

Product image 4, can be opened in a modal.

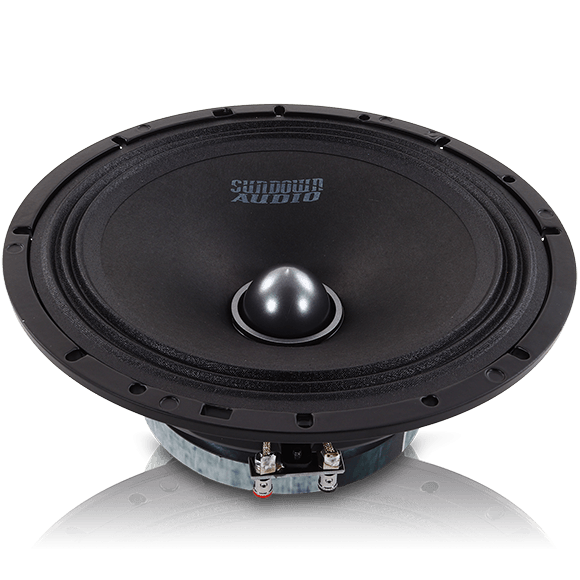

Product image 5, can be opened in a modal.
LCMR-8 100 Watt Pro Audio Midrange Speaker
Regular price
$69.99 USD
Regular price
Shipping calculated at checkout.
Features
- Sold Individually
- Power Handling: 100 Watts RMS
- Impedance: 4/8 Ohm
- Frequency Range: 120Hz - 6kHz
- Phase Plug
- Outside Diameter: 8.25"
- Cutout Diameter: 7.125"
- Mounting Depth: 3.50"
- Effective surface area,Sd: 12.469Mm*
| Specification | LCMR-8 4 Ω | LCMR-8 8 Ω |
|---|---|---|
| Fs | 81.18 Hz | — |
| Re | 3.2 Ω | — |
| Qms | 9.46 | — |
| Qes | 0.55 | — |
| Qts | 0.52 | — |
| Vas | 24.84 L | — |
| Outer Diameter | 8.25" | 8.25" |
| Cutout Diameter | 7.125" | 7.125" |
| Mounting Depth | 3.50" | 3.50" |
| Voice Coil Diameter | 1.51" | 1.51" |
| X-Max | 1 mm | 1 mm |
| Nominal Impedance | 4 Ω | 8 Ω |
| Sensitivity | 94 dB | 94 dB |
| Frequency Range | 120 Hz – 6 kHz | 120 Hz – 6 kHz |
| Cone Material | Paper | Paper |
| Surround Material | Cloth | Cloth |
| Basket Material | Die Alum. | Die Alum. |
| Magnet Material | Ferrite | Ferrite |
| Voice Coil Former | Kapton | Kapton |
| Voice Coil Winding | Copper | Copper |
| Power (RMS) | 100W | 100W |
