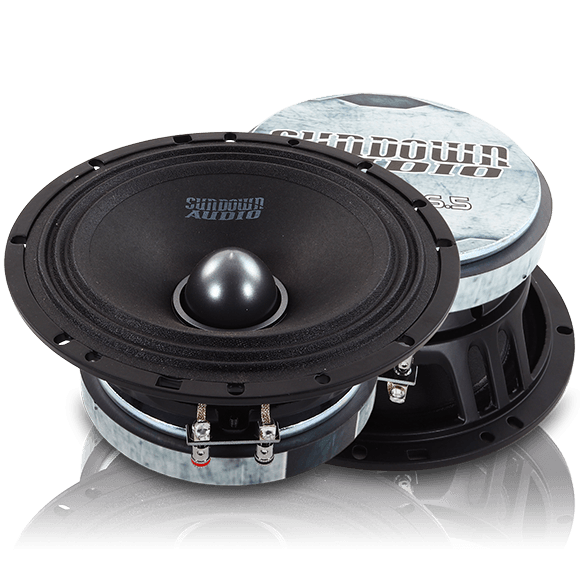

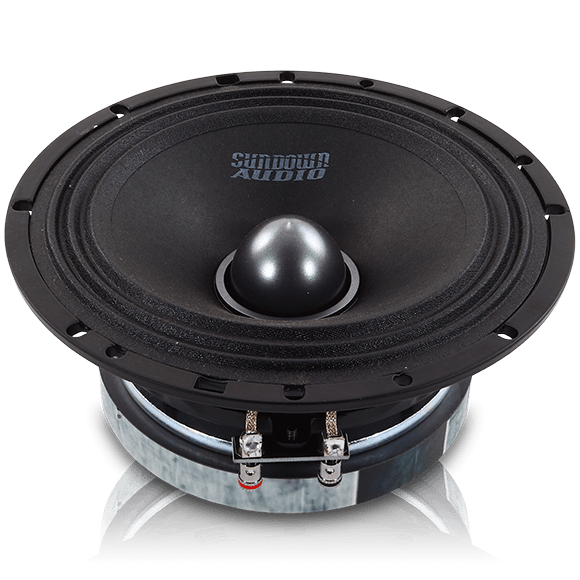

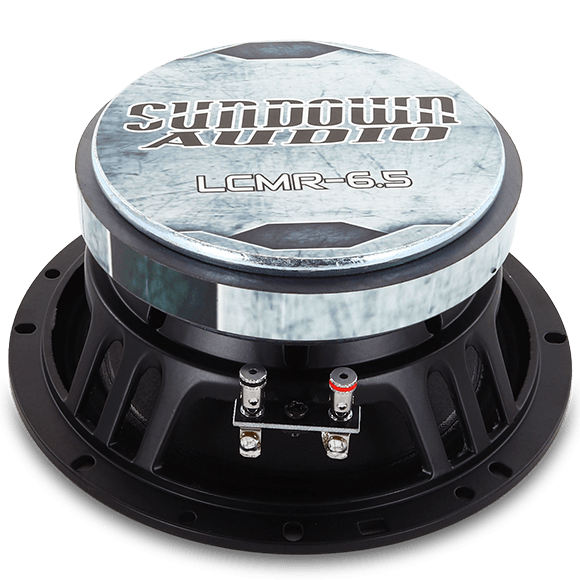

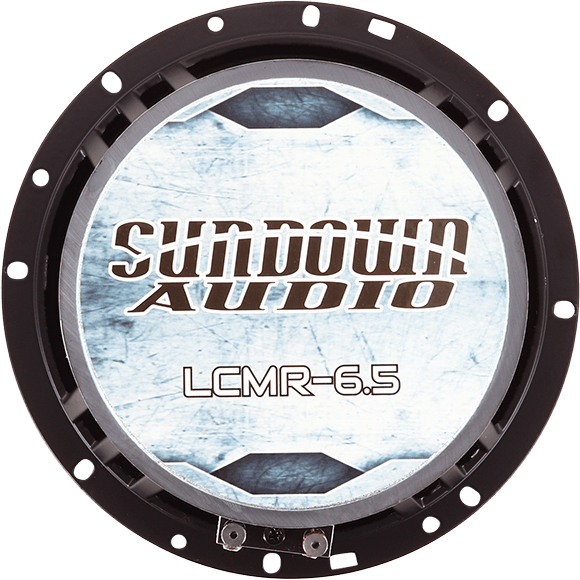

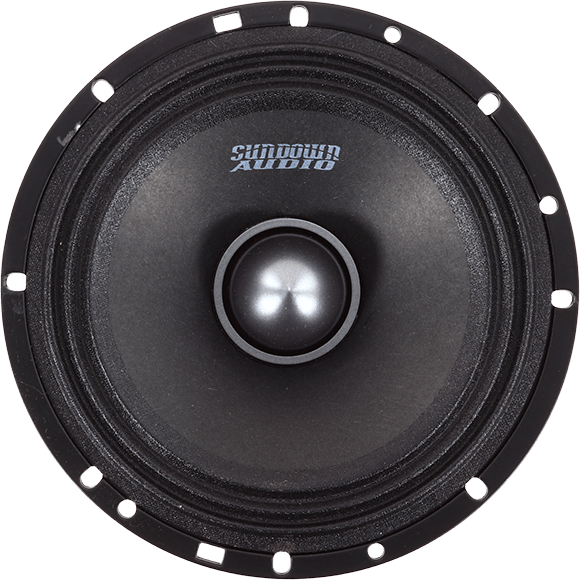

LCMR-6.5 100 Watt Pro Audio Midrange Speaker
Regular price
$59.99 USD
Regular price
Shipping calculated at checkout.
Features
- Sold Individually
- Power Handling: 100 Watts RMS
- Impedance: 4/8 Ohm
- Frequency Range: 120Hz - 6kHz
- Phase Plug
- Outer Diameter: 6.51"
- Cutout Diameter: 5.82"
- Mounting Depth: 3.50"
- VC Diamete: 1.51"
- Magnet Material: Ferrite
- Resonant Frequency, FS: 83.27Hz
- D.C.Voice coil resistance, Re: 3.2
- Mechanical quality factor, Qms: 4.1
- Electrical quality factor, Qes: 0.43
- Total quality factor, Qts: 0.409
- Equivalent air volume to Cms. Vas: 7.5L
- Mechanical compliance, Cms: 0.24MM/N
- BL factor, Bl: 6.3N/A
- Effective surface area,Sd: 12.469*
- Sensitivitv(1w/1m): 92dB +/- 2dB
Specifications
| Specifications | |
|---|---|
RE (Ohms) |
|
FS (Hz) |
|
VAS (L) |
|
Qes |
|
Qms |
|
Qts |
|
BL (NA) |
|
CMS (uM/N) |
|
Sens (dB @ 1w/1m) |
|
