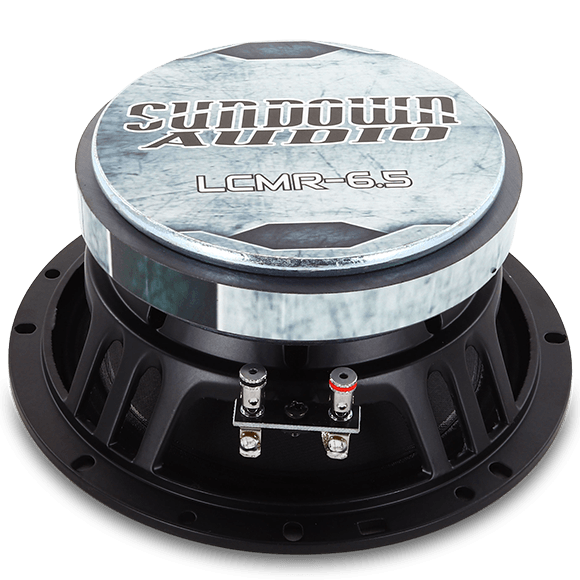

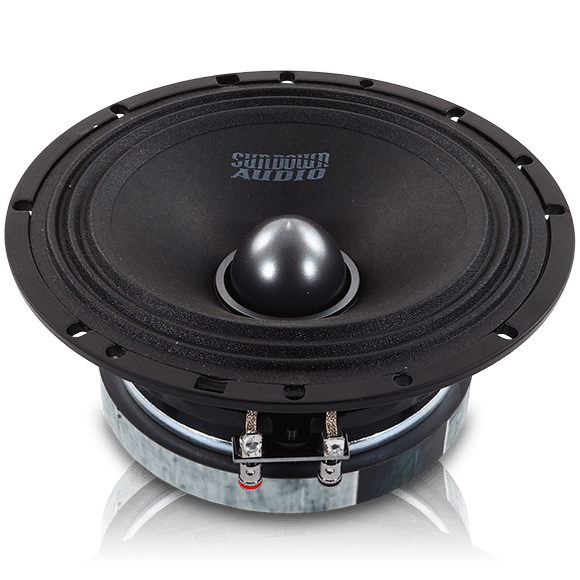

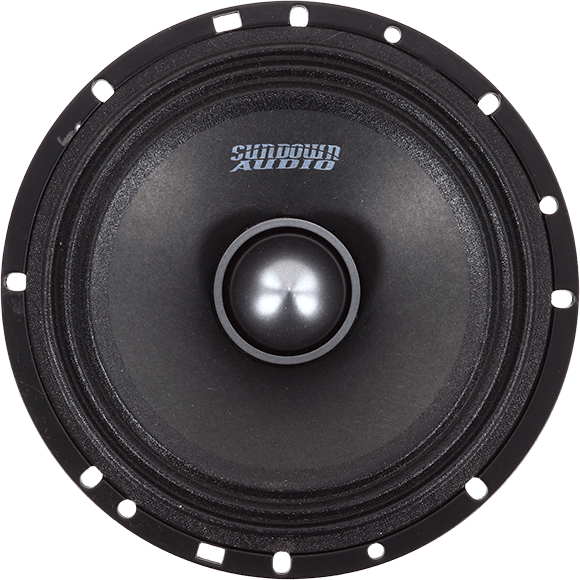

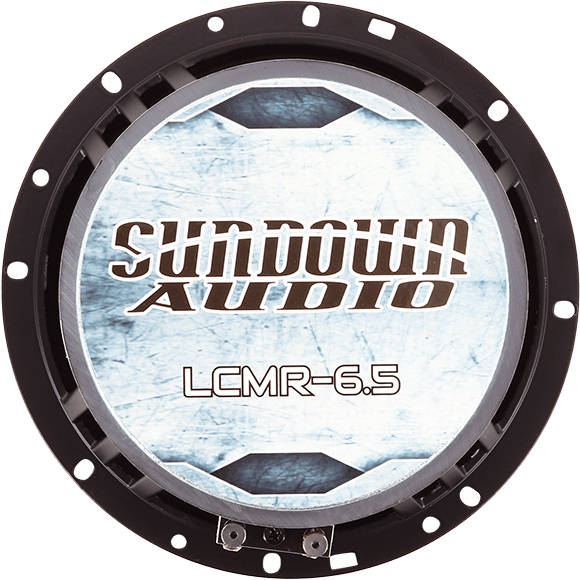

LCMR-6.5 100 Watt Pro Audio Midrange Speaker

$59.99 USD
$59.99 USD
Shipping calculated at checkout.

Title: 4 Ohm

Features

  • Sold Individually
  • Power Handling: 100 Watts RMS
  • Impedance: 4/8 Ohm
  • Frequency Range: 120Hz - 6kHz
  • Phase Plug
  • Outer Diameter: 6.51"
  • Cutout Diameter: 5.82"
  • Mounting Depth: 3.50"
  • VC Diamete: 1.51"
  • Magnet Material: Ferrite
  • Effective surface area,Sd: 12.469*
SpecificationLCMR-6.5 4 ΩLCMR-6.5 8 Ω
Fs83.27 Hz—
Re3.2 Ω—
Qms8.25—
Qes0.43—
Qts0.409—
Vas13.24 L—
Outer Diameter6.51"6.51"
Cutout Diameter5.82"5.82"
Mounting Depth3.50"3.50"
Voice Coil Diameter1.51"1.51"
X-Max1 mm1 mm
Nominal Impedance4 Ω8 Ω
Sensitivity92 dB92 dB
Frequency Range120 Hz – 6 kHz120 Hz – 6 kHz
Cone MaterialPaperPaper
Surround MaterialClothCloth
Basket MaterialDie Alum.Die Alum.
Magnet MaterialFerriteFerrite
Voice Coil FormerKaptonKapton
Voice Coil WindingCopperCopper
Power (RMS)100W100W
