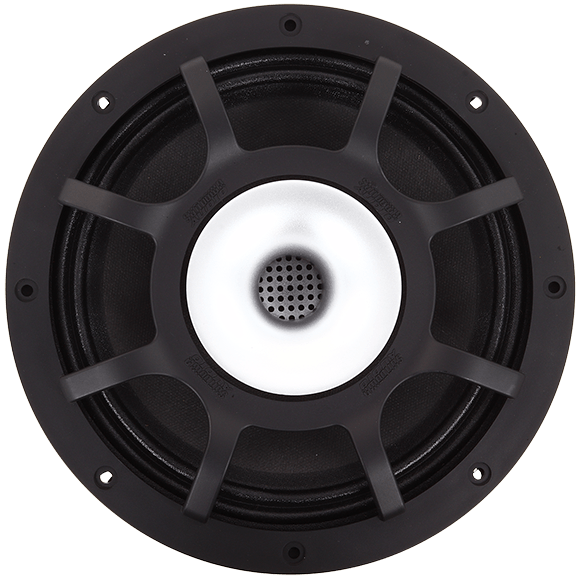

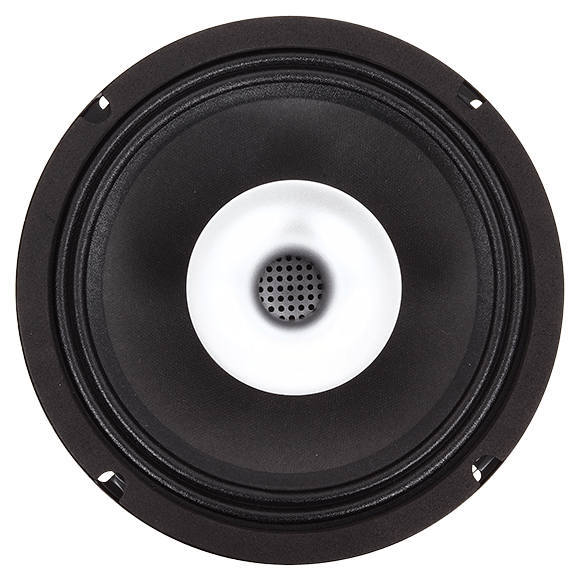

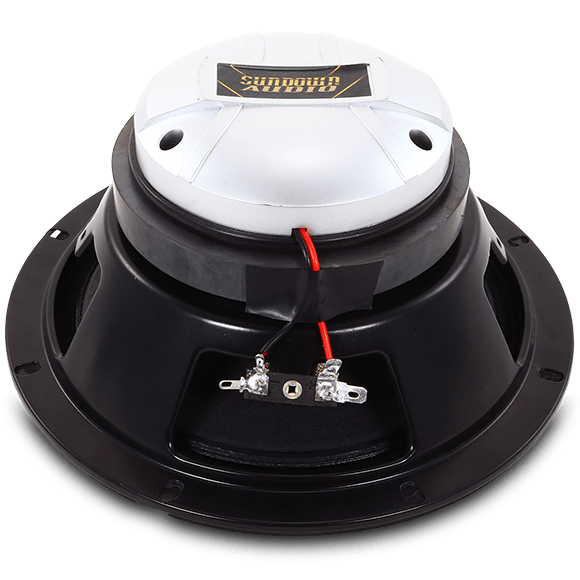

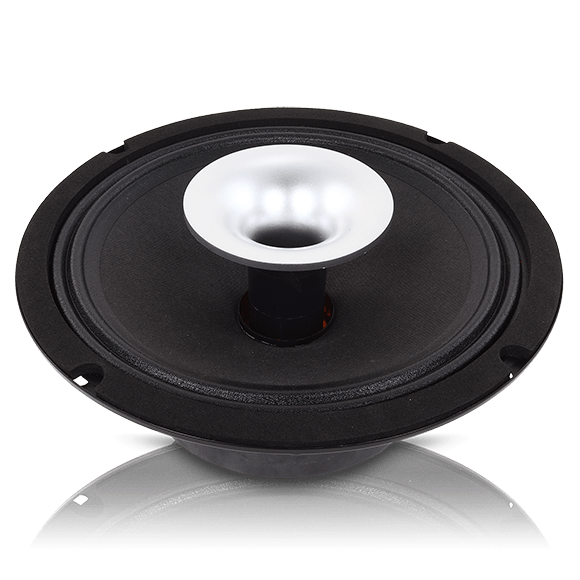

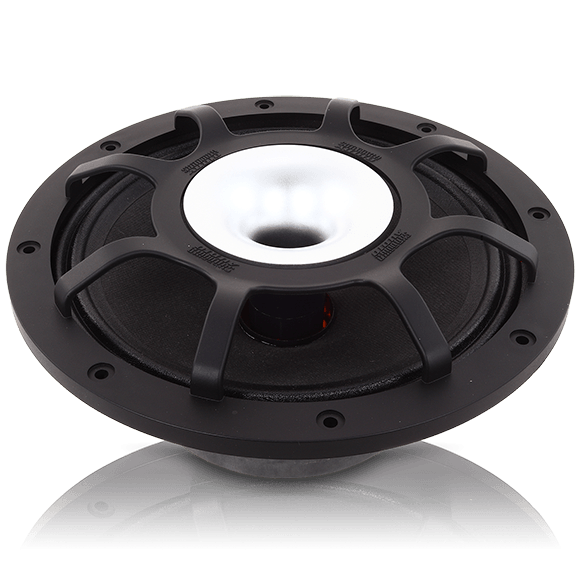

Sundown Audio ECX-8 8" Pro Sound Coaxial Car Audio Speakers

$69.99 USD
$69.99 USD
Shipping calculated at checkout.



Features

  • Sold Individually
  • Power Handling: 60 Watts RMS
  • Impedance: 4 ohms
  • Frequency Range: 60Hz - 20kHz
  • Sensitivity: 94dB
SpecificationECX-8
Fs87.3 Hz
Re3.12 Ω
Qms3.69
Qes0.76
Qts0.63
Vas29.85 L
Outer Diameter7.99"
Cutout Diameter7.24"
Mounting Depth4.13"
Voice Coil Diameter1.51"
X-Max1 mm
Nominal Impedance4 Ω
Sensitivity94 dB
Frequency Range60 Hz – 20 kHz
Cone MaterialPaper
Surround MaterialFoam
Basket MaterialIron
Magnet MaterialFerrite
Voice Coil FormerAluminium
Voice Coil WindingCopper
Power (RMS)60W
