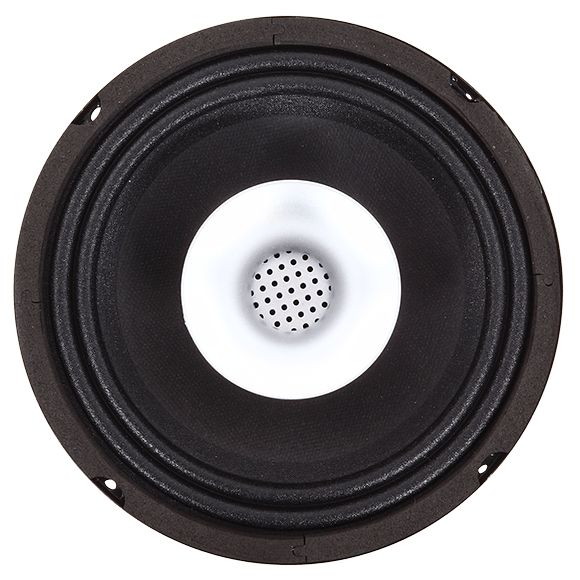

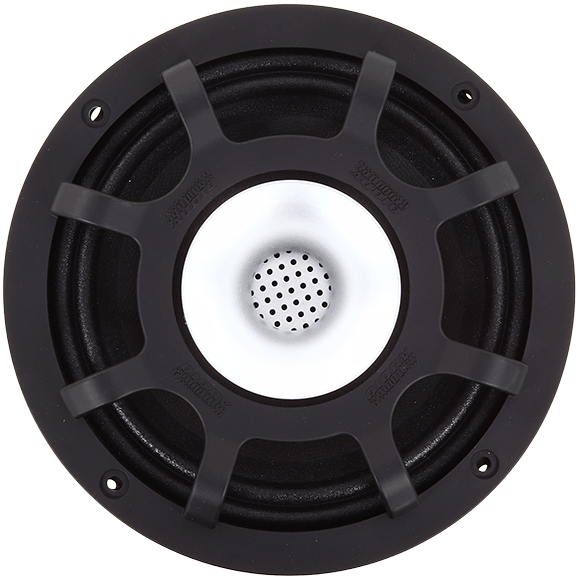

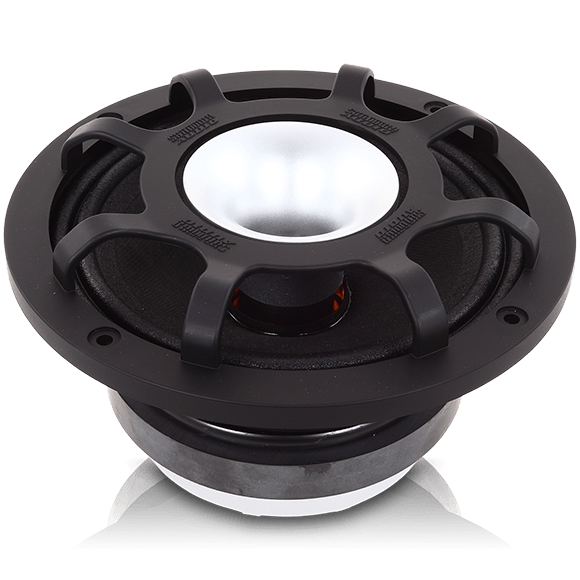

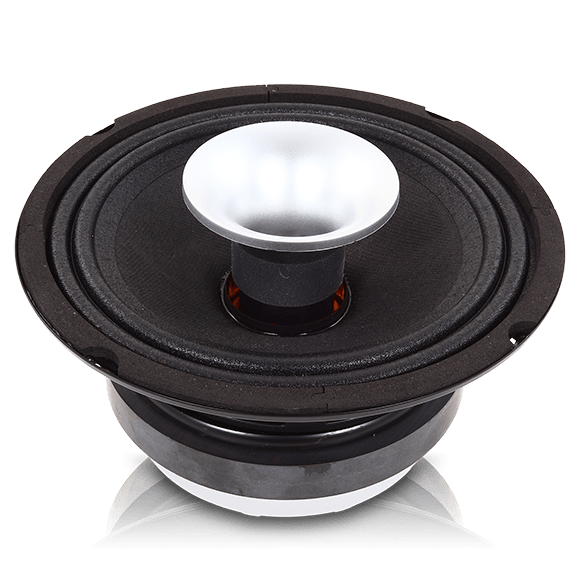

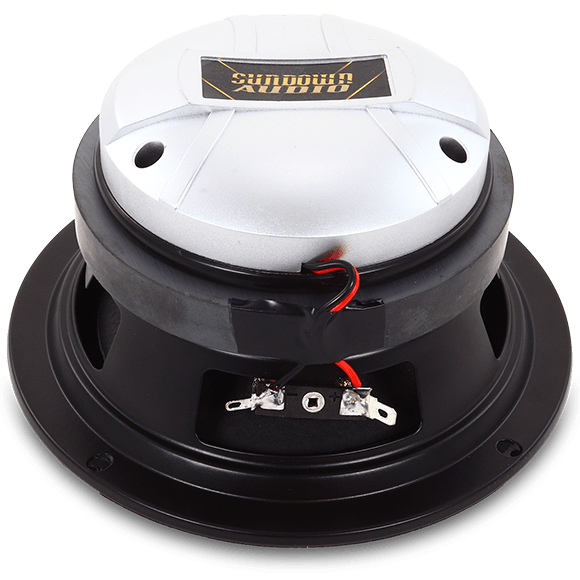

ECX-6.5 6.5" 6-1/2 Pro Sound Coaxial Speakers
Regular price
$59.99 USD
Regular price
Shipping calculated at checkout.
Features
- Sold Individually
- Power Handling: 50 Watts RMS
- Impedance: 4 ohms
- Frequency Range: 80Hz - 20kHz
- Sensitivity: 94dB
| Specification | ECX-6.5 |
|---|---|
| Fs | 120.9 Hz |
| Re | 3.12 Ω |
| Qms | 4.1 |
| Qes | 0.82 |
| Qts | 0.68 |
| Vas | 6.93 L |
| Outer Diameter | 6.89" |
| Cutout Diameter | 5.90" |
| Mounting Depth | 3.74" |
| Voice Coil Diameter | 1.51" |
| X-Max | 1 mm |
| Nominal Impedance | 4 Ω |
| Sensitivity | 94 dB |
| Frequency Range | 80 Hz – 20 kHz |
| Cone Material | Paper |
| Surround Material | Foam |
| Basket Material | Iron |
| Magnet Material | Ferrite |
| Voice Coil Former | Aluminium |
| Voice Coil Winding | Copper |
| Power (RMS) | 50W |
