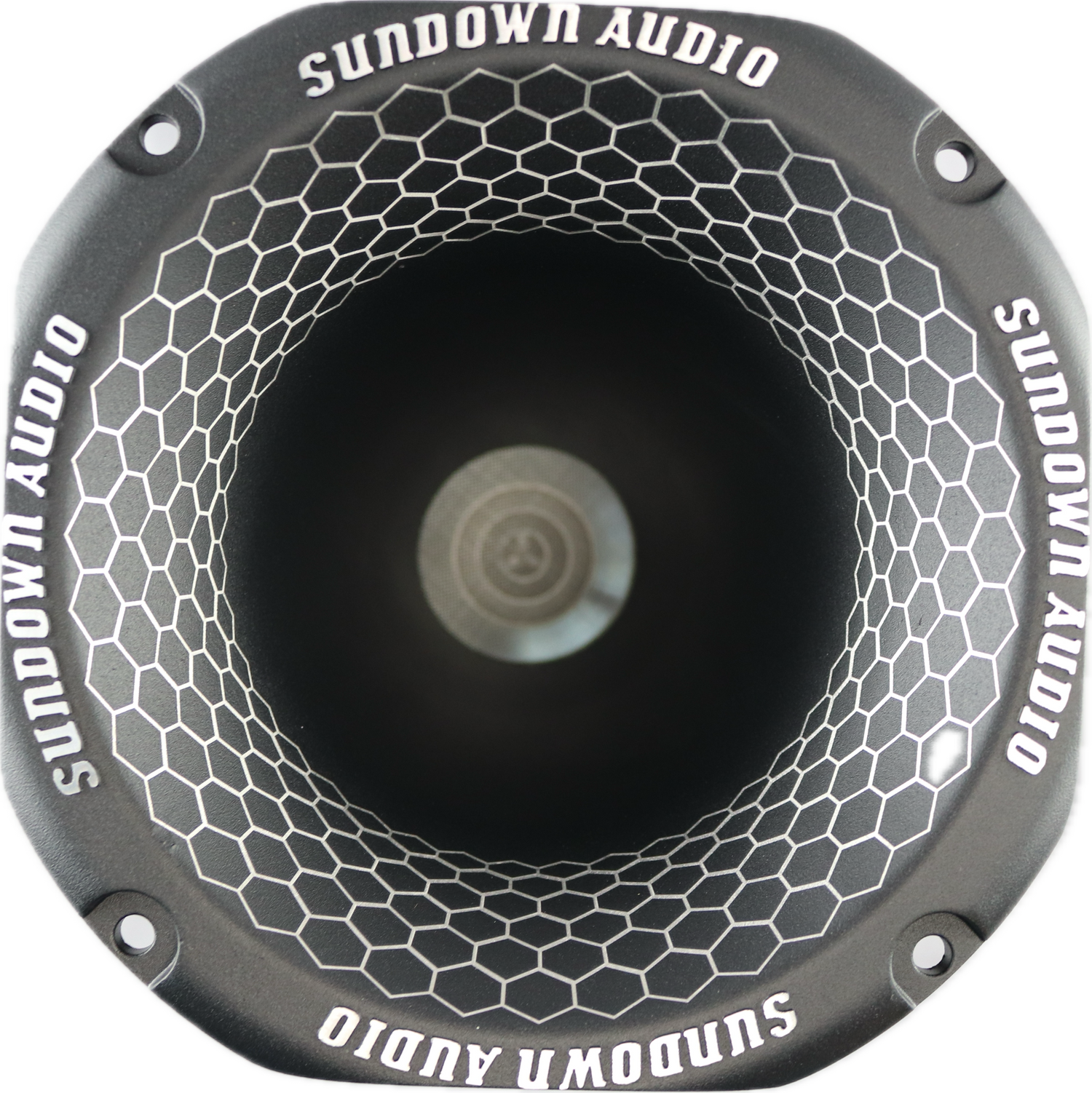

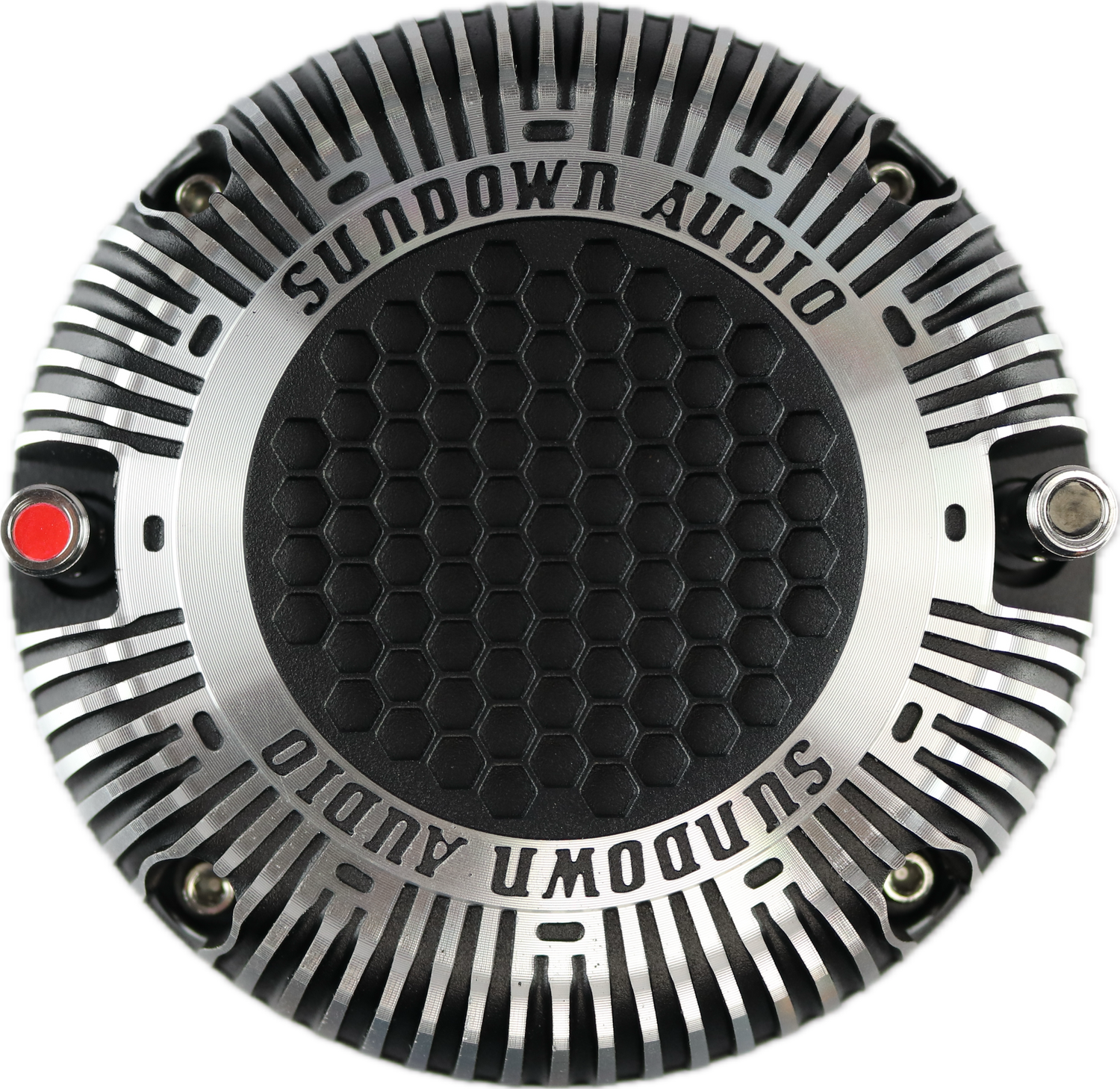

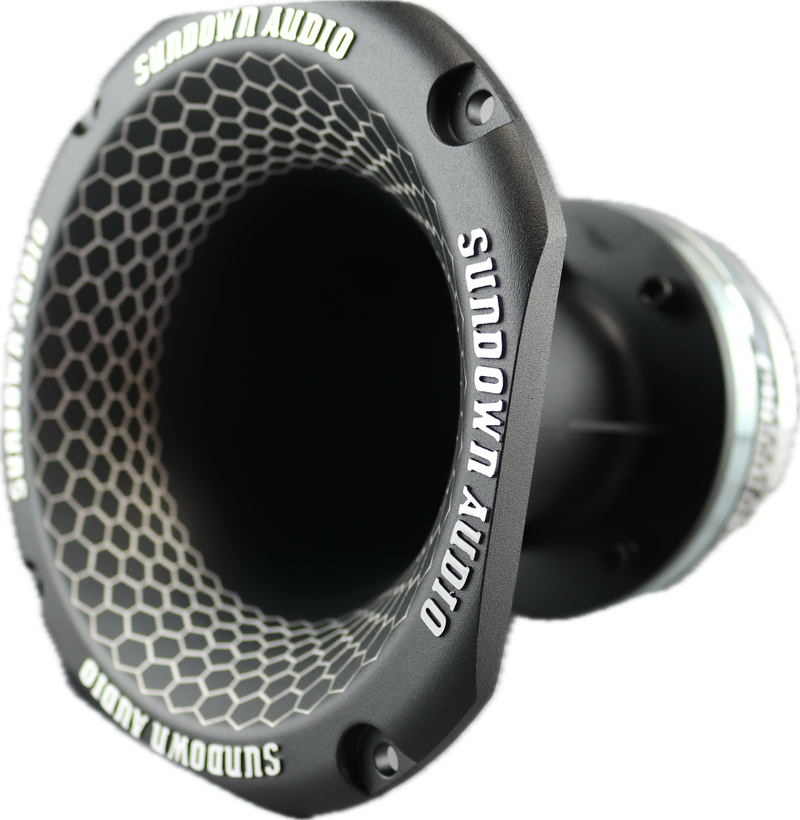

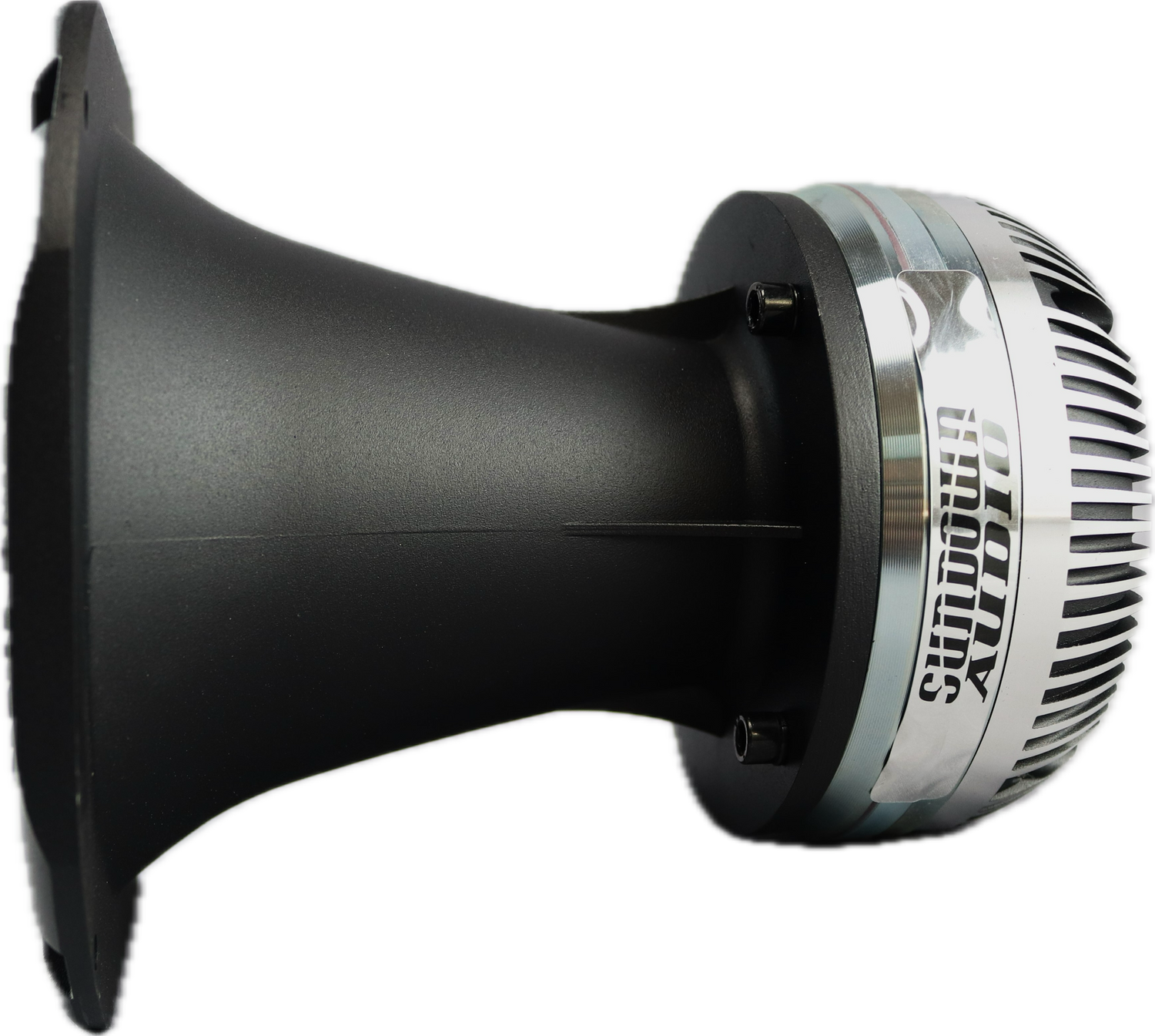

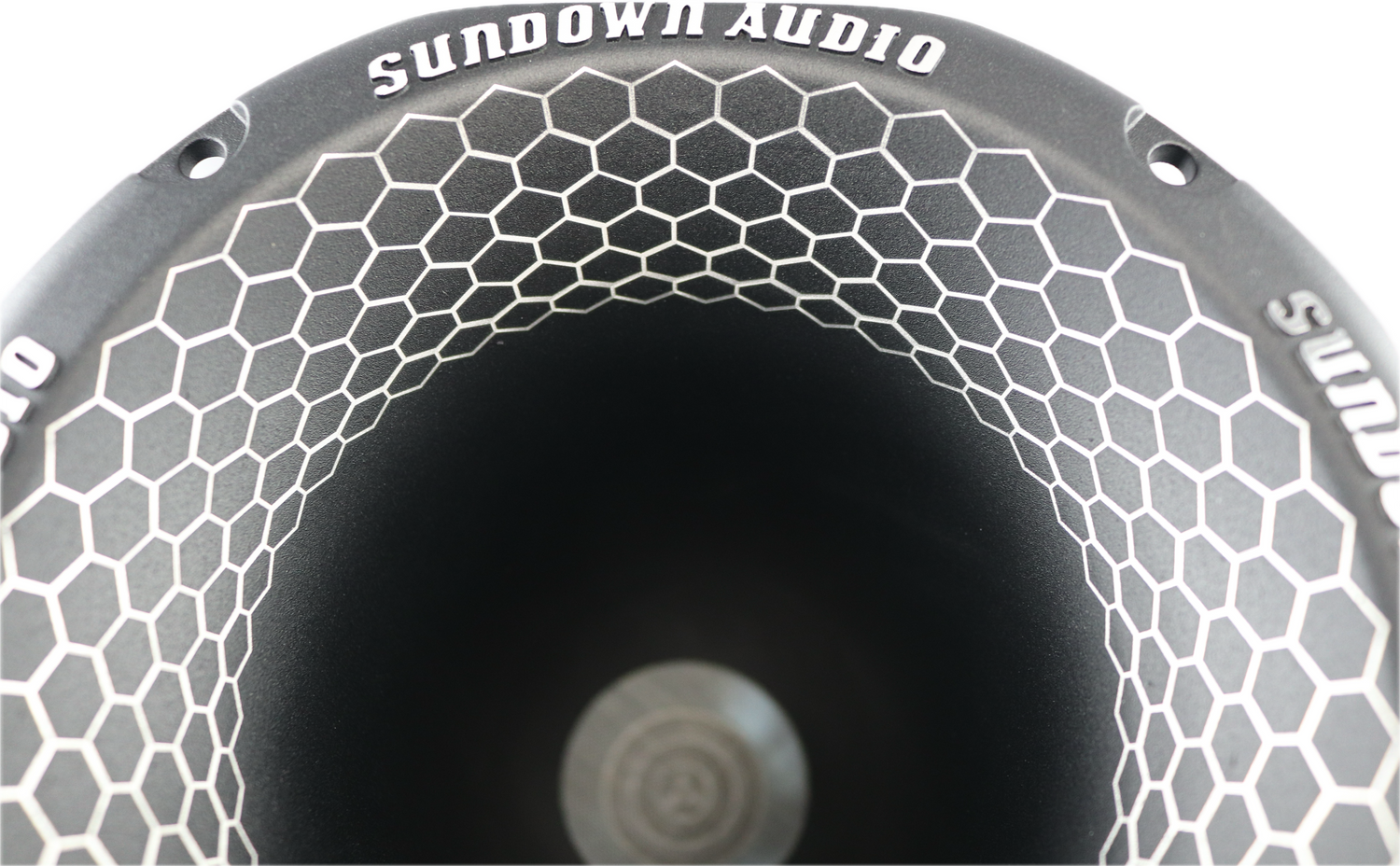

SHNMD 2" Throat NEO Super Horn
Regular price
$199.99 USD
Regular price
Sale price
$199.99 USD
Shipping calculated at checkout.
SHNMD 2" Throat Super Horn With NEO Magnet
- 2in Horn driver
- NEO Magnet
- Die-cast Aluminium Cover
- Die-cast Aluminium Horn
- Titanium Diaphragm
- 4 Ohm
- 110 Wrms
- Exit Throat Diameter @ inch – 2
- Rated Impedance @Ohm – 4
- Power Handling Capacity @ Watt – 110
- Program Power @Watt – 220
- Sensitivity(1W/1m) @ Hz – 120
- Frequency Range @ Hz - 600-20,000
- Voice Coil Diameter @ inch - 3
- Voice Coil Material - CCAR
- Voice Coil Former Material - Kapton
- Voice Coil Winding Depth @ mm - 3
- Cutout – 6”
- Mounting Depth – 6.8”
- Gap Height @ mm – 3.5
- Magnet Type - Neodymium
- Driver Size @ in 4.9*2.18”
- Back Cover Material – Die-cast Aluminium
- Diaphragm Material - Titanium
- Horn Material – Die-cast Aluminium
- Product Dimension @ in - L7.25*W7.25*H7.19”
Key Features:
- Powerful Output: Rated at 110W RMS and 220W program power, this driver provides robust sound performance suitable for demanding audio setups.
- Wide Frequency Range: Operates efficiently across 600Hz to 20,000Hz, ensuring clear and dynamic audio reproduction from mid to high frequencies.
- High Sensitivity: With a sensitivity of 120 dB (1W/1m @ Hz), it minimizes power consumption while delivering maximum sound output.
Premium Build:
- Diaphragm Material: Titanium diaphragm ensures durability and accurate sound reproduction.
- Voice Coil: Features a 3-inch CCAR (Copper Clad Aluminum Ribbon) voice coil on a Kapton former for excellent thermal and mechanical stability.
- Horn and Back Cover: Constructed with die-cast aluminum for lightweight strength and enhanced sound dispersion.
- Magnet Type: Equipped with a Neodymium magnet for high magnetic flux and reduced weight.
Specifications:
- Exit Throat Diameter: 2 inches
- Impedance: 4 Ohms
- Cutout Size: 6 inches
- Mounting Depth: 6.8 inches
- Driver Size: 4.9 x 2.18 inches
- Product Dimensions: 7.25 x 7.25 x 7.19 inches (L x W x H)
Additional Details:
- Voice Coil Winding Depth: 3 mm
- Gap Height: 3.5 mm
- Materials: Die-cast aluminum components, Kapton former, and titanium diaphragm for a robust and reliable build.
