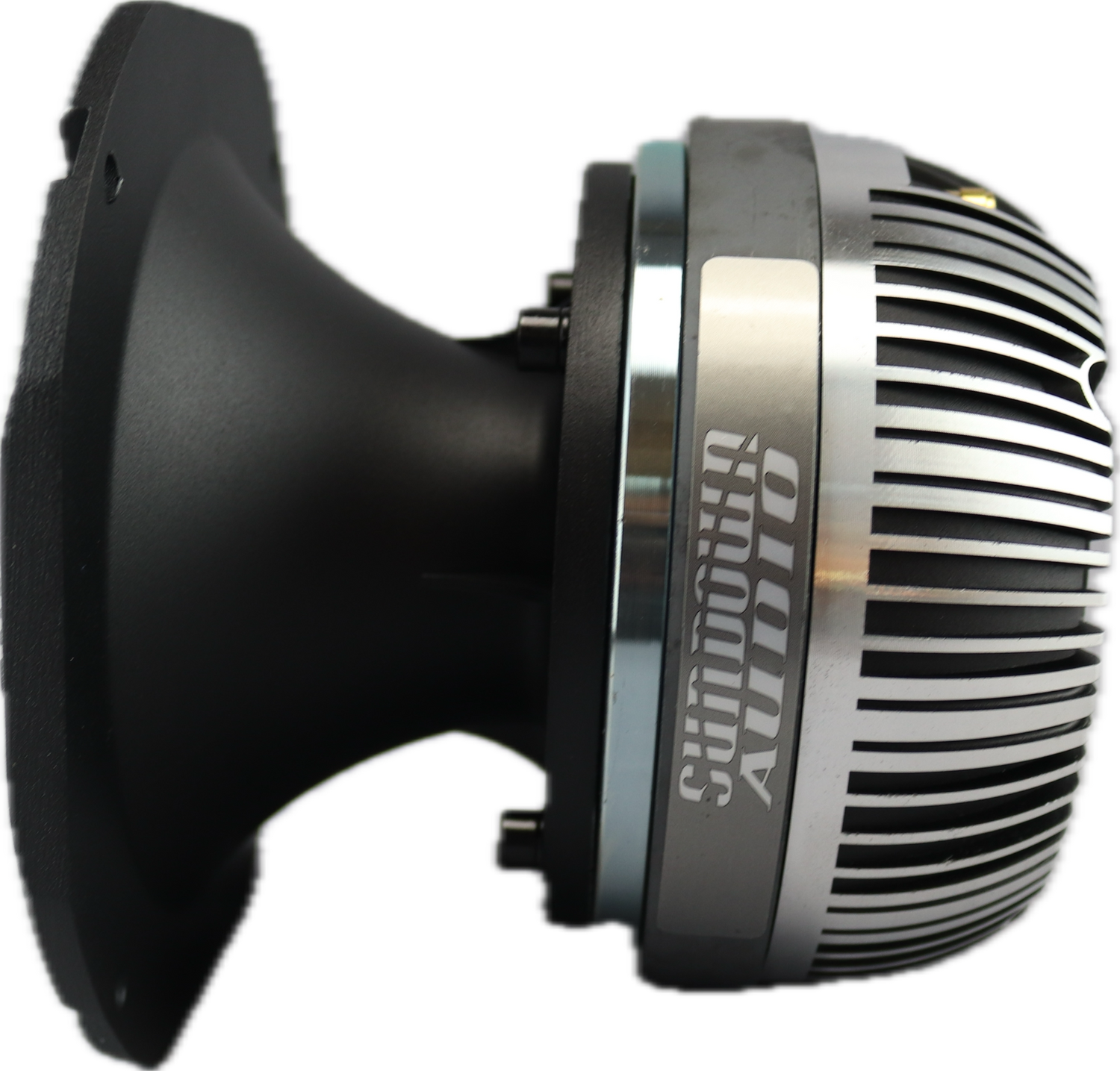

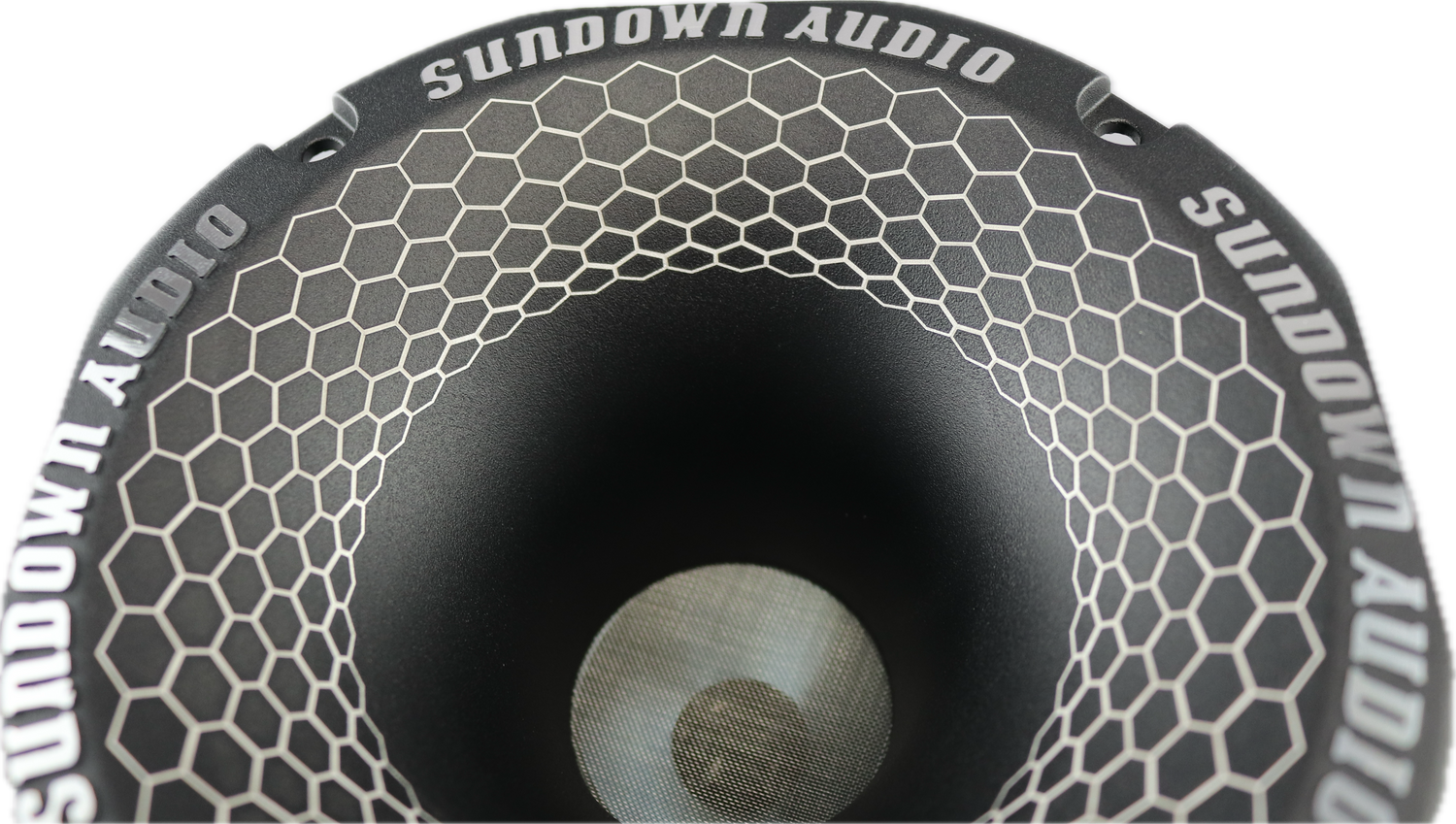

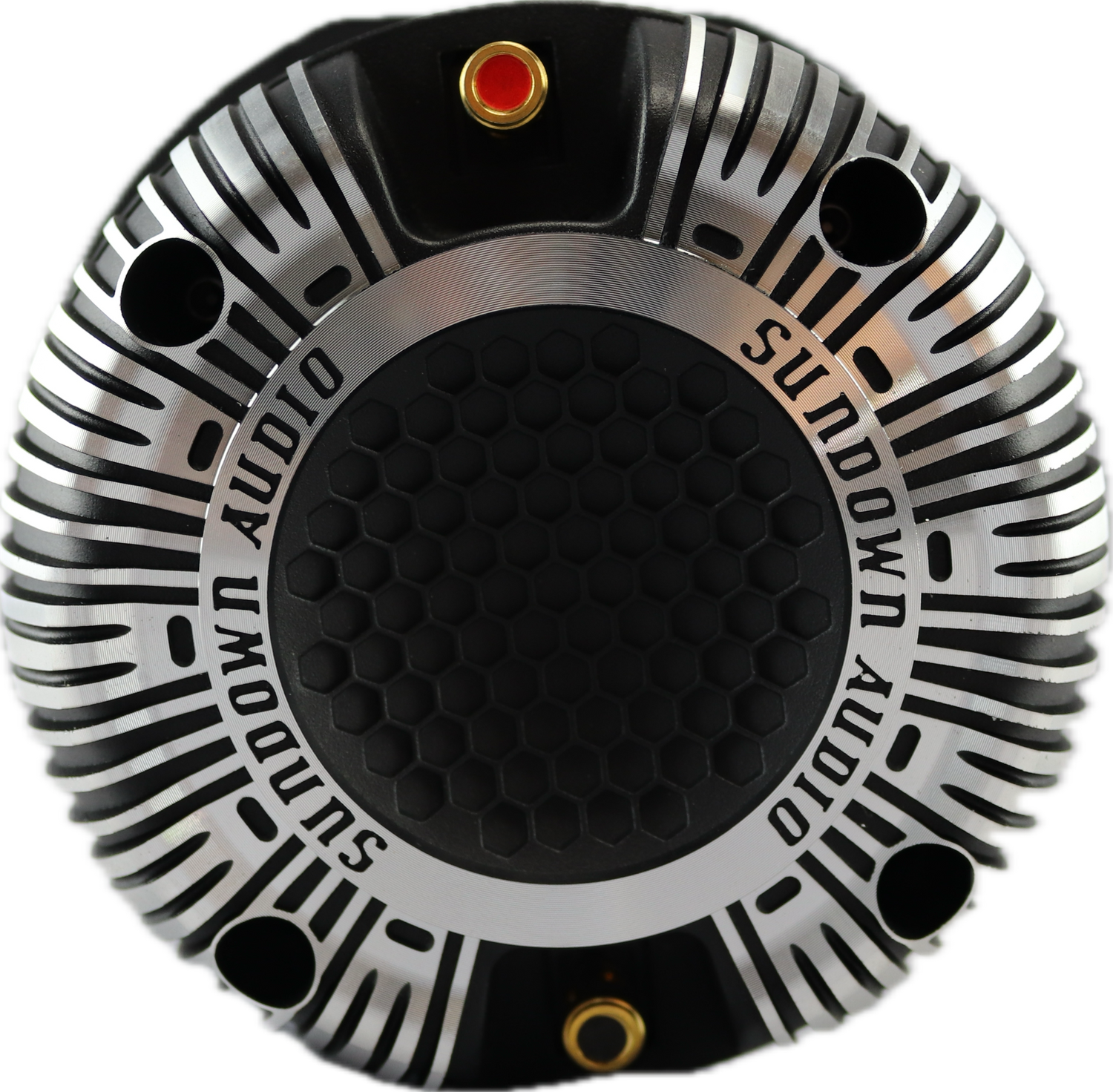

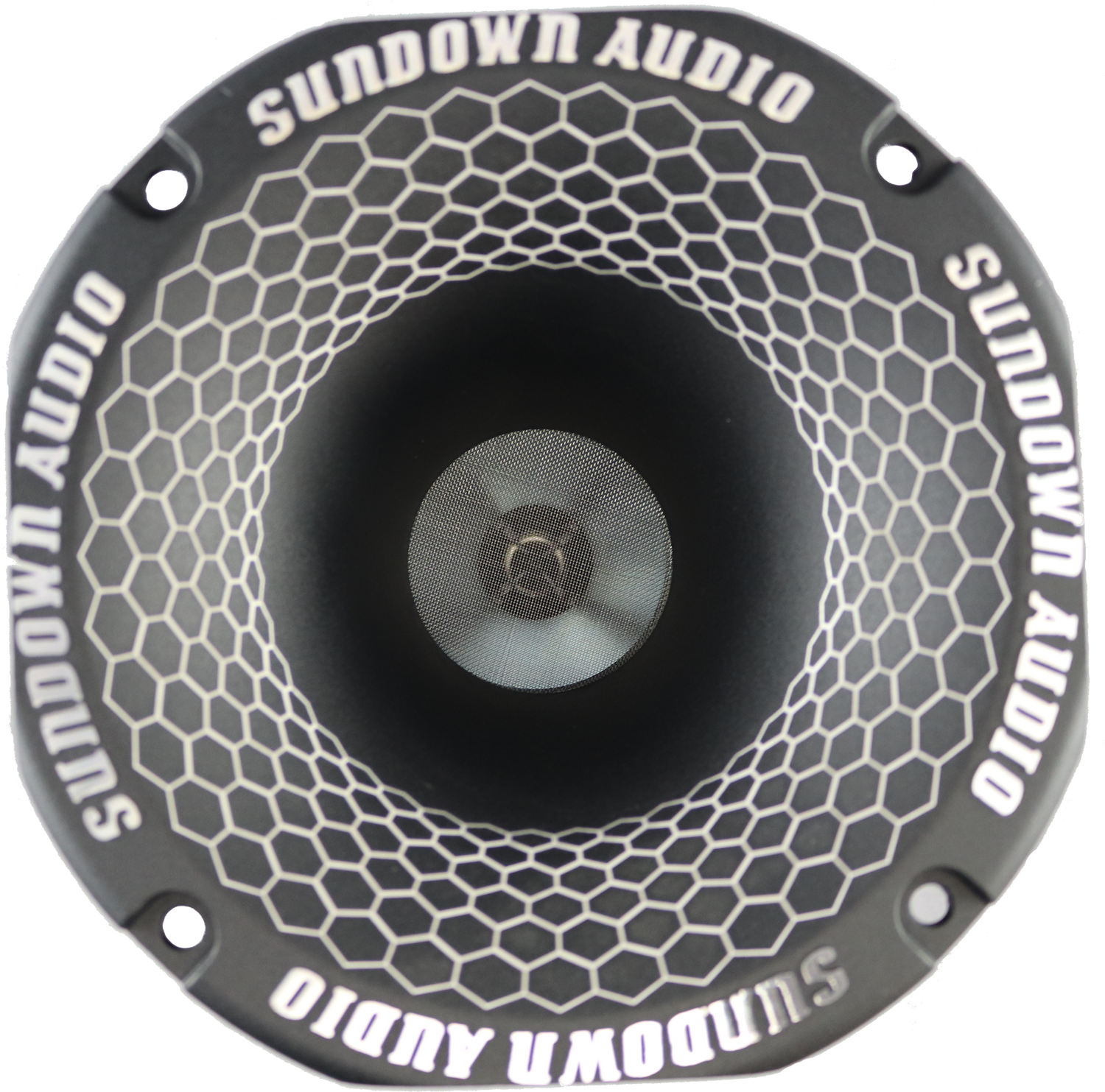

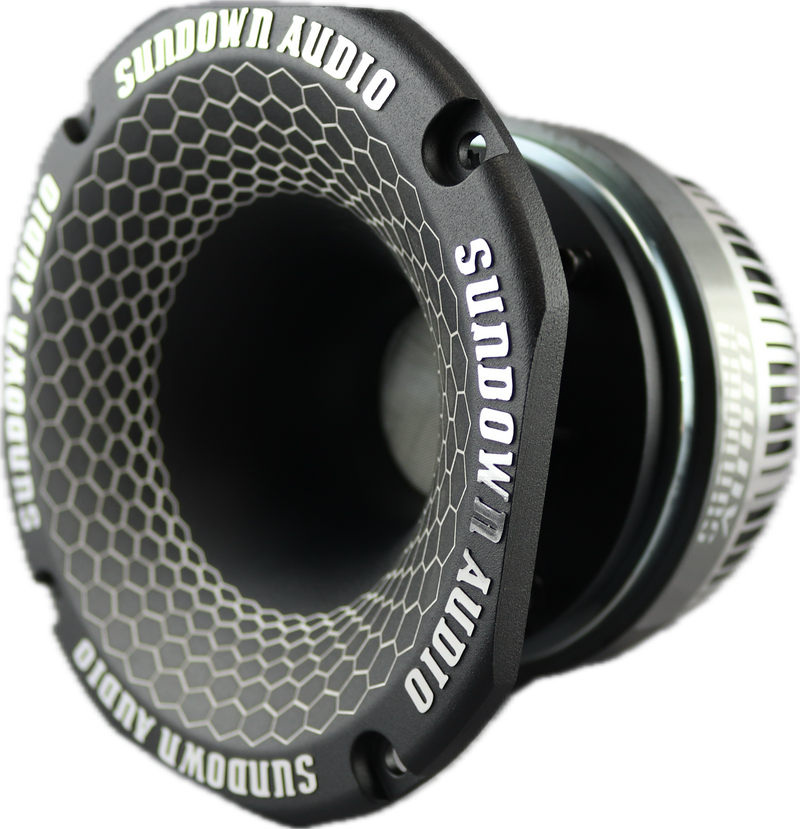

- 2in Horn driver
- Strontium Ferrite Magnet
- Die-cast Aluminium Cover
- Die-cast Aluminium Horn
- Titanium Diaphragm
- 4 Ohm
- 80 Wrms
- Exit Throat Diameter @ inch – 2
- Rated Impedance @Ohm – 4
- Power Handling Capacity @ Watt – 80
- Program Power @Watt – 160
- Sensitivity(1W/1m) @ Hz – 115
- Frequency Range @ Hz – 1,000-20,000
- Voice Coil Diameter @ inch - 2
- Voice Coil Material - CCAW
- Voice Coil Former Material - Kapton
- Voice Coil Winding Depth @ mm - 2
- Cutout – 5.5”
- Mounting Depth – 5.15”
- Gap Height @ mm – 2.5
- Driver Size @ in 5.28*2.5”
- Back Cover Material – Die-cast Aluminium
- Diaphragm Material - Titanium
- Horn Material – Die-cast Aluminium
- Product Dimension @ in – L6.75*W6.75*H5.5”
Key Features:
- Efficient Power Handling: Rated at 80W RMS and 160W program power, this driver offers a balance of power and performance for demanding setups.
- Wide Frequency Range: Covers frequencies from 1,000Hz to 20,000Hz, ensuring crisp and detailed sound.
- High Sensitivity: A sensitivity of 115 dB (1W/1m @ Hz) delivers excellent output with minimal power consumption.
Durable Construction:
- Diaphragm Material: Titanium diaphragm for reliable performance and precise audio reproduction.
- Voice Coil Design: 2-inch CCAW (Copper Clad Aluminum Wire) voice coil on a Kapton former provides thermal stability and durability.
- Robust Build: Die-cast aluminum cover and horn for lightweight strength and effective sound dispersion.
- Magnet: Strontium ferrite magnet ensures high magnetic flux and long-lasting reliability.
Specifications:
- Exit Throat Diameter: 2 inches
- Impedance: 4 Ohms
- Cutout Size: 5.5 inches
- Mounting Depth: 5.15 inches
- Driver Size: 5.28 x 2.5 inches
- Product Dimensions: 6.75 x 6.75 x 5.5 inches (L x W x H)
Additional Details:
- Voice Coil Winding Depth: 2 mm
- Gap Height: 2.5 mm
- Materials: Titanium diaphragm, Kapton former, and die-cast aluminum components provide durability and optimized performance.
