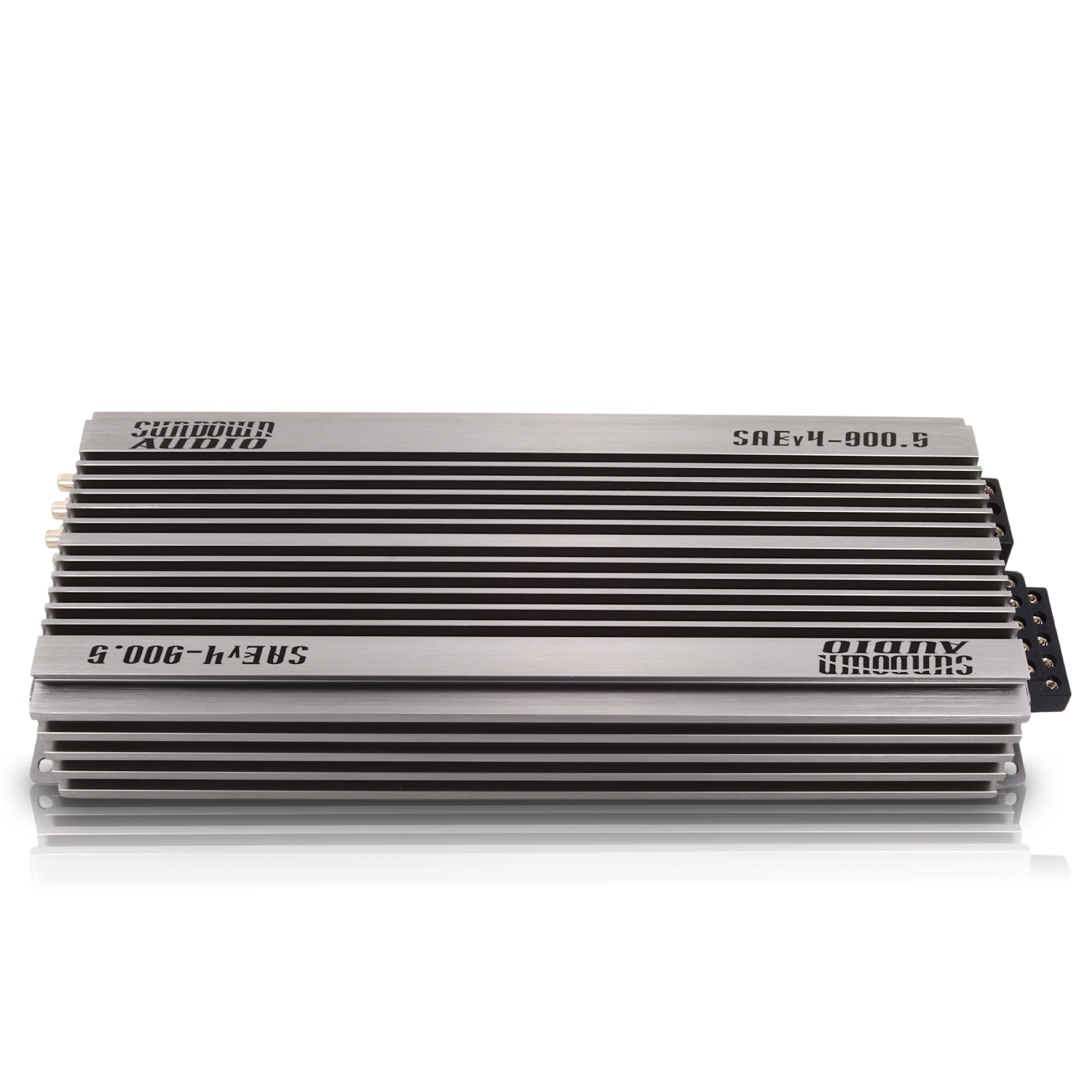

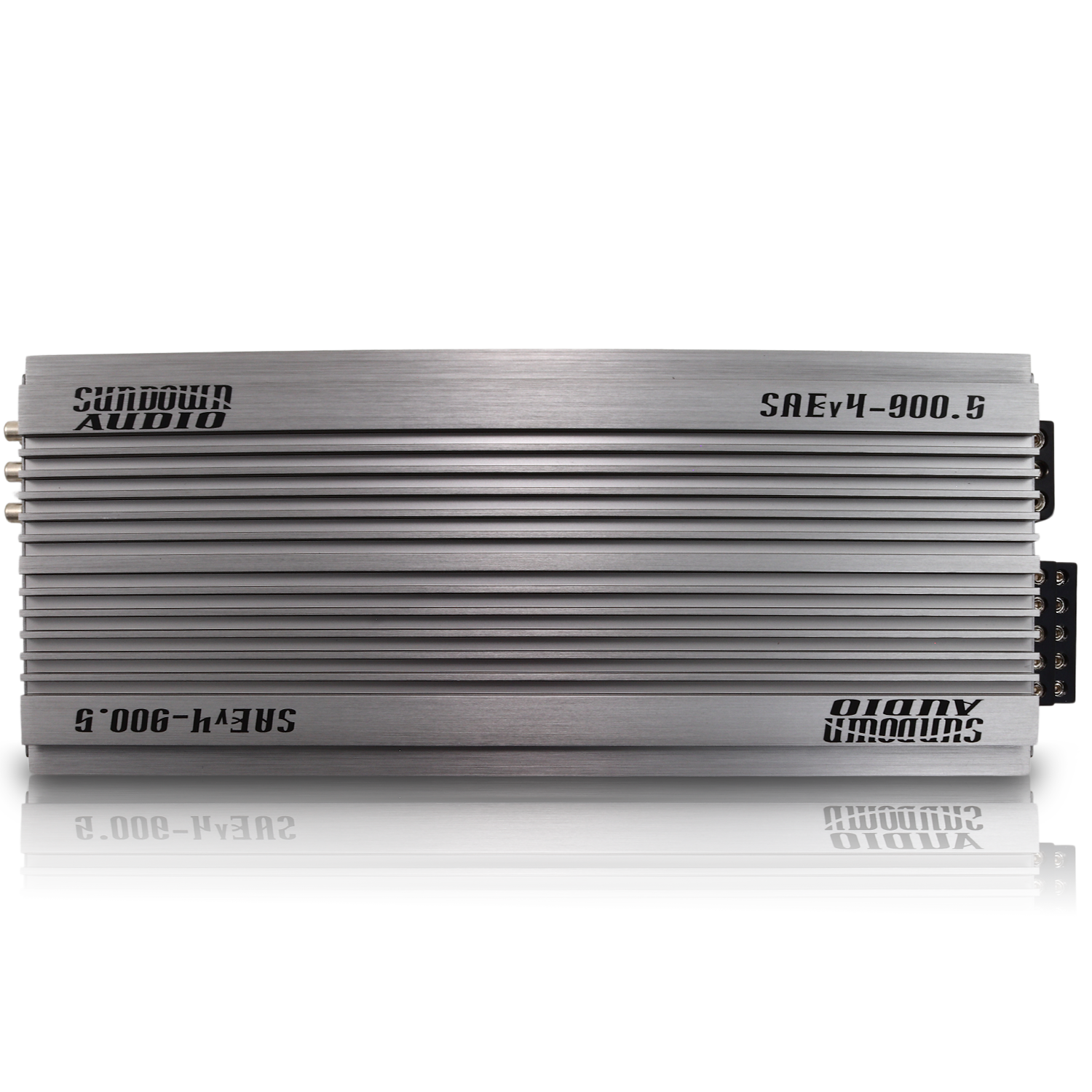

SAEv4-900.5 5-Channel Amplifier
- 120 x 4 (Ch. 1-4) + 325 x 1 @ 2 ohms RMS (Ch. 5)
- 80 x 4 (Ch. 1-4) + 225 x 1 @ 2 ohms RMS (Ch. 5)
- 500 x 1 @ 1 ohms RMS (Ch. 5)
- Hi-fidelity Class A/B+D design

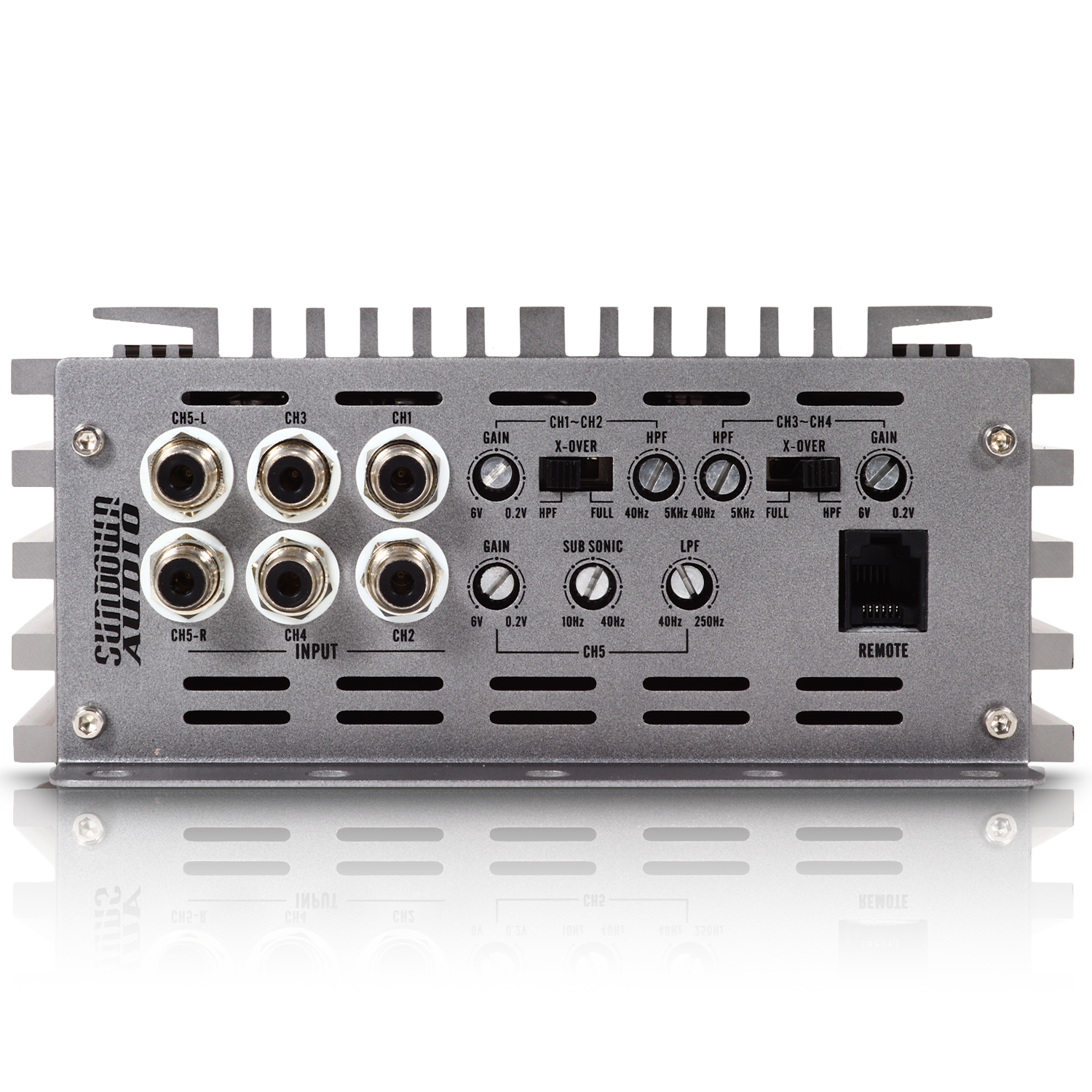

- Variable 12dB low & high pass filters: 40Hz-5kHz (Ch. 1-4)
- Variable 12dB low pass filter: 40Hz-250Hz (Ch. 5)
- Variable 12dB subsonic filter: 10Hz-40Hz (Ch.5)
- Power and protection indicators included
- Thermal, voltage, speaker short, and dc-offset protection circuitry
- Optional wired remote control with clipping indicator

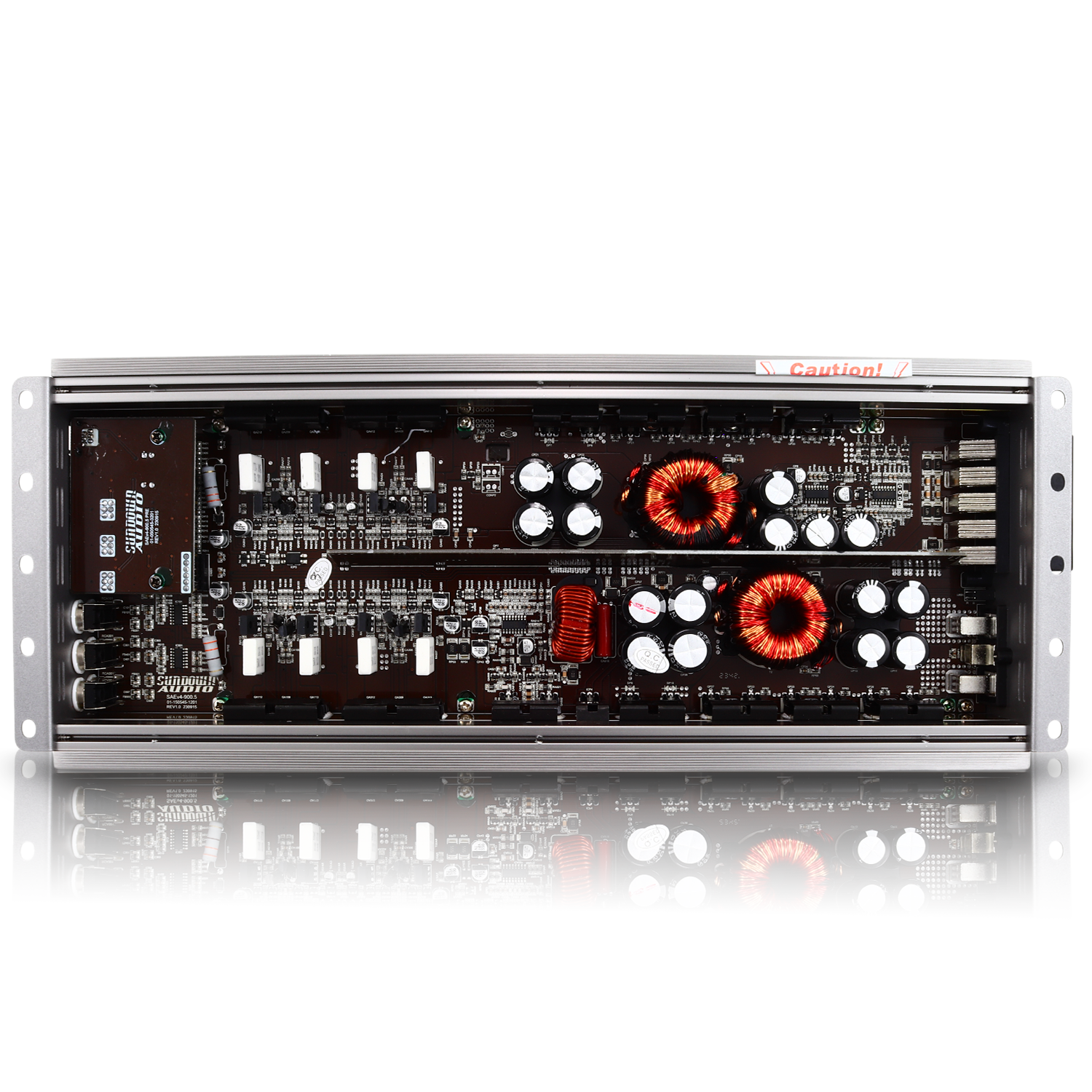

Power your entire system with a single Sundown amp! The SAEv4 is engineered with high-fidelity Class A/B+D multi-channel architecture, providing an ideal balance between performance and affordability. Leveraging the latest half-bridge technology, these amplifiers deliver clean, powerful signals in a compact design.

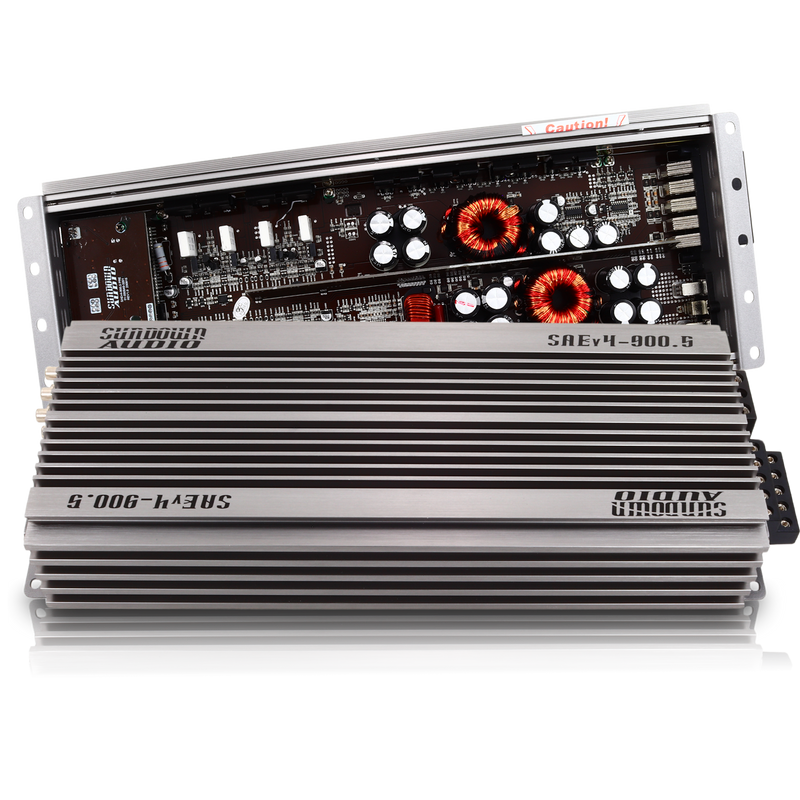

Featuring an all-new chassis and heatsink design with 33% more aluminum, this SAEv4 keeps your system cool, even when the music is cranked. The amp is packed with a variable subsonic, high pass and low pass filters, plus a 4-way protection circuit (thermal, voltage, speaker short, and DC offset).
With an input sensitivity of 6V max and 980 watts of RMS power at your fingertips, the SAEv4-900.5 is designed to drive your entire car audio system with precision and clarity!
| Specification | SAEv4-900.5 |
|---|---|
| Power CH 1–4 @ 2Ω | 120W × 4 |
| Power CH 1–4 @ 4Ω | 80W × 4 |
| Sub Channel (CH 5) @ 1Ω | 500W |
| Sub Channel (CH 5) @ 2Ω | 325W |
| Amplifier Class | A/B+D |
| Operating Voltage | 10.5V – 15.5V |
| Signal-to-Noise Ratio | 92 dB |
| Input Sensitivity | 6V max |
| High/Low Pass Filter (CH 1–4) | 40 Hz – 5 kHz (12 dB variable) |
| Low Pass Filter (CH 5) | 40 Hz – 250 Hz (12 dB variable) |
| Subsonic Filter (CH 5) | 10 Hz – 40 Hz (12 dB) |
| Fuse Rating | 100A |

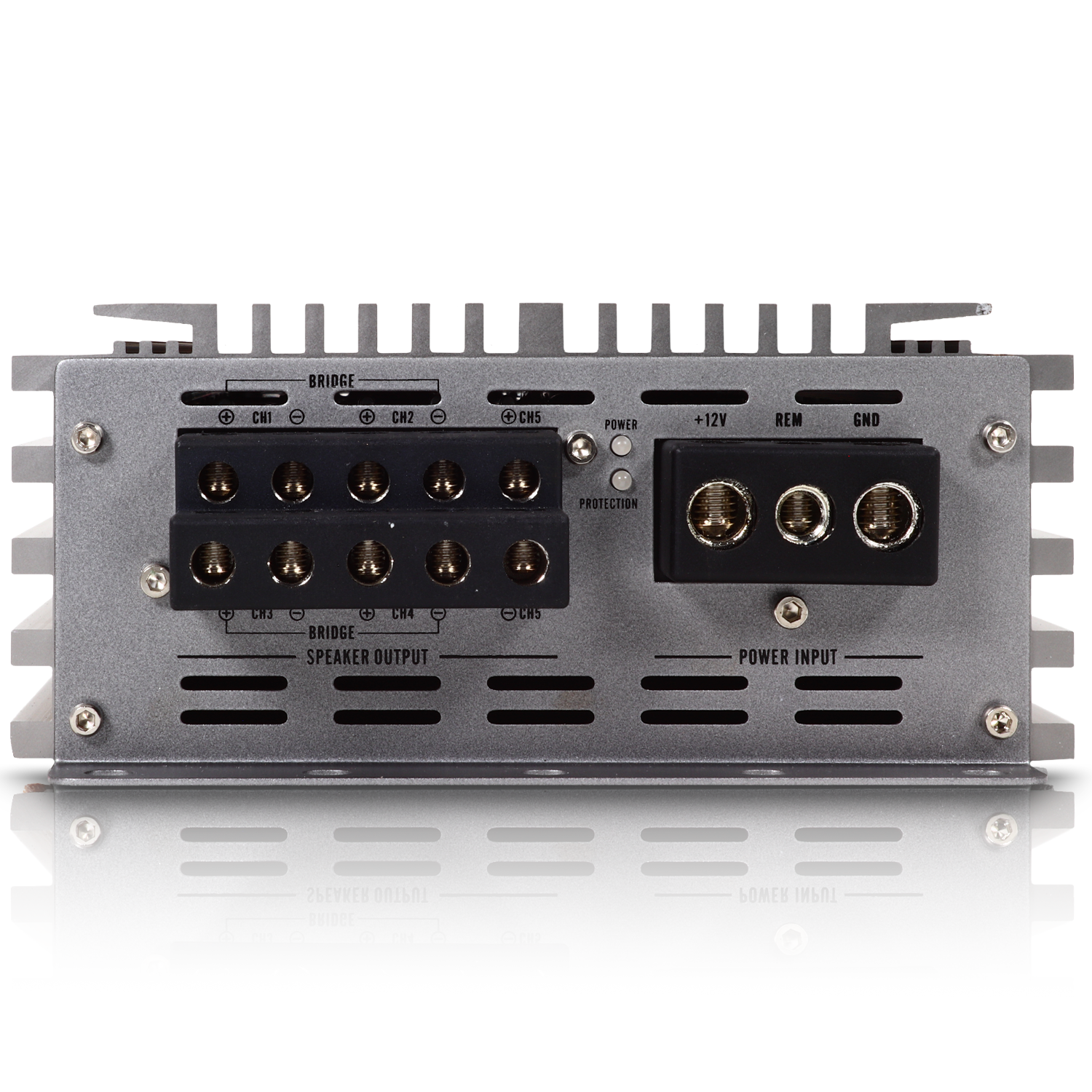

| Input Wire Size | 4 Ga |
| Dimensions (L × W × H) | 17.36" × 6.3" × 2.75" |
