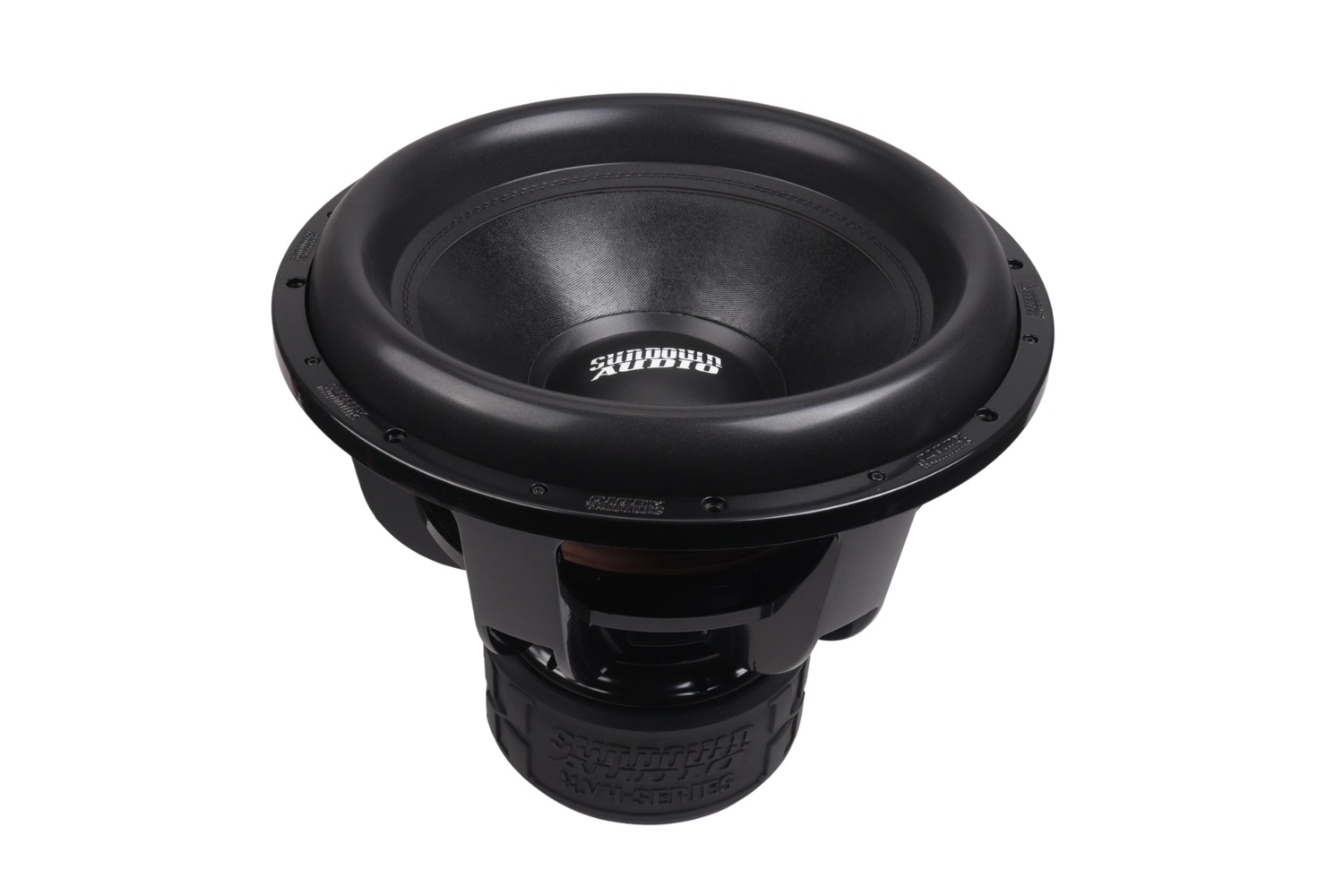

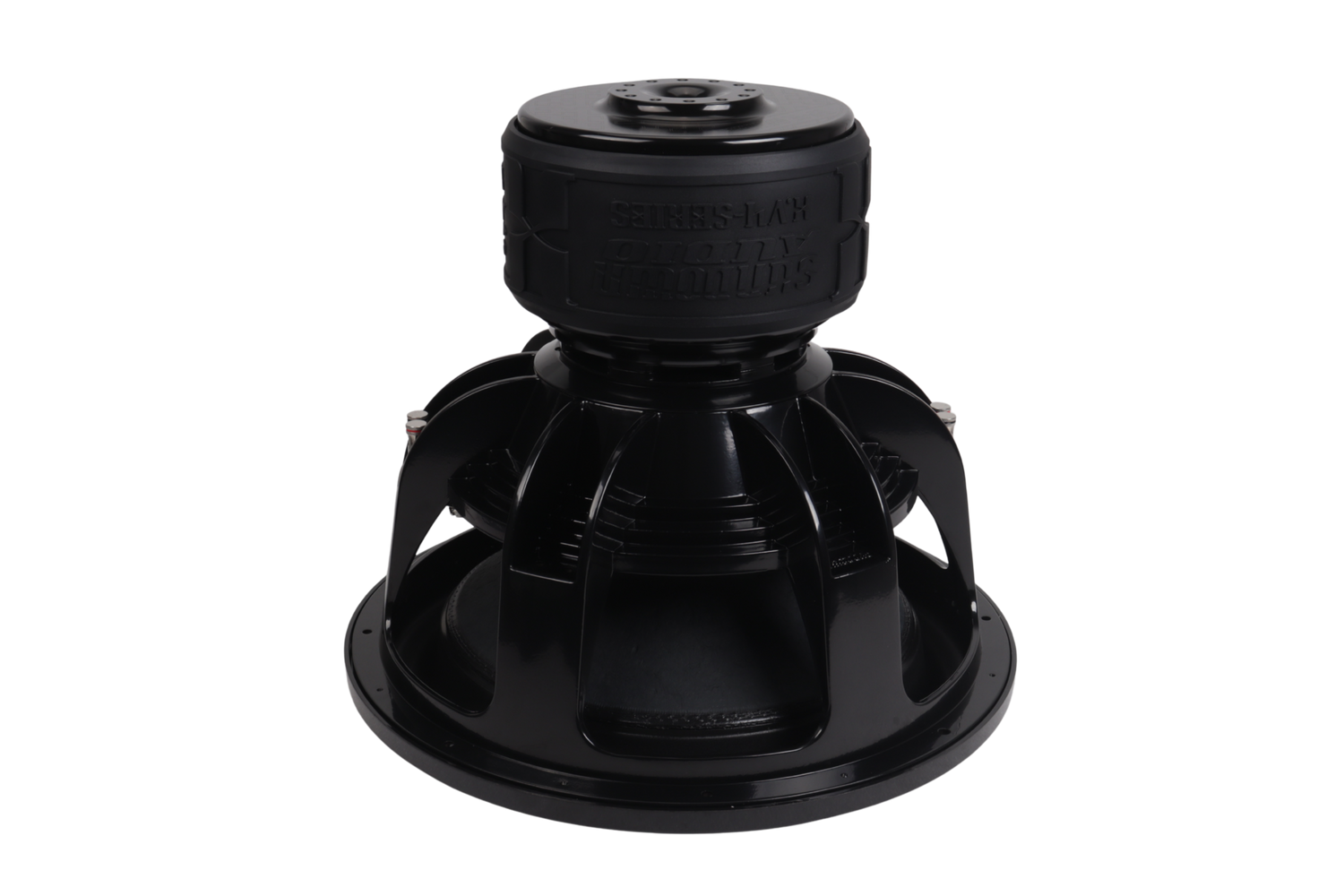

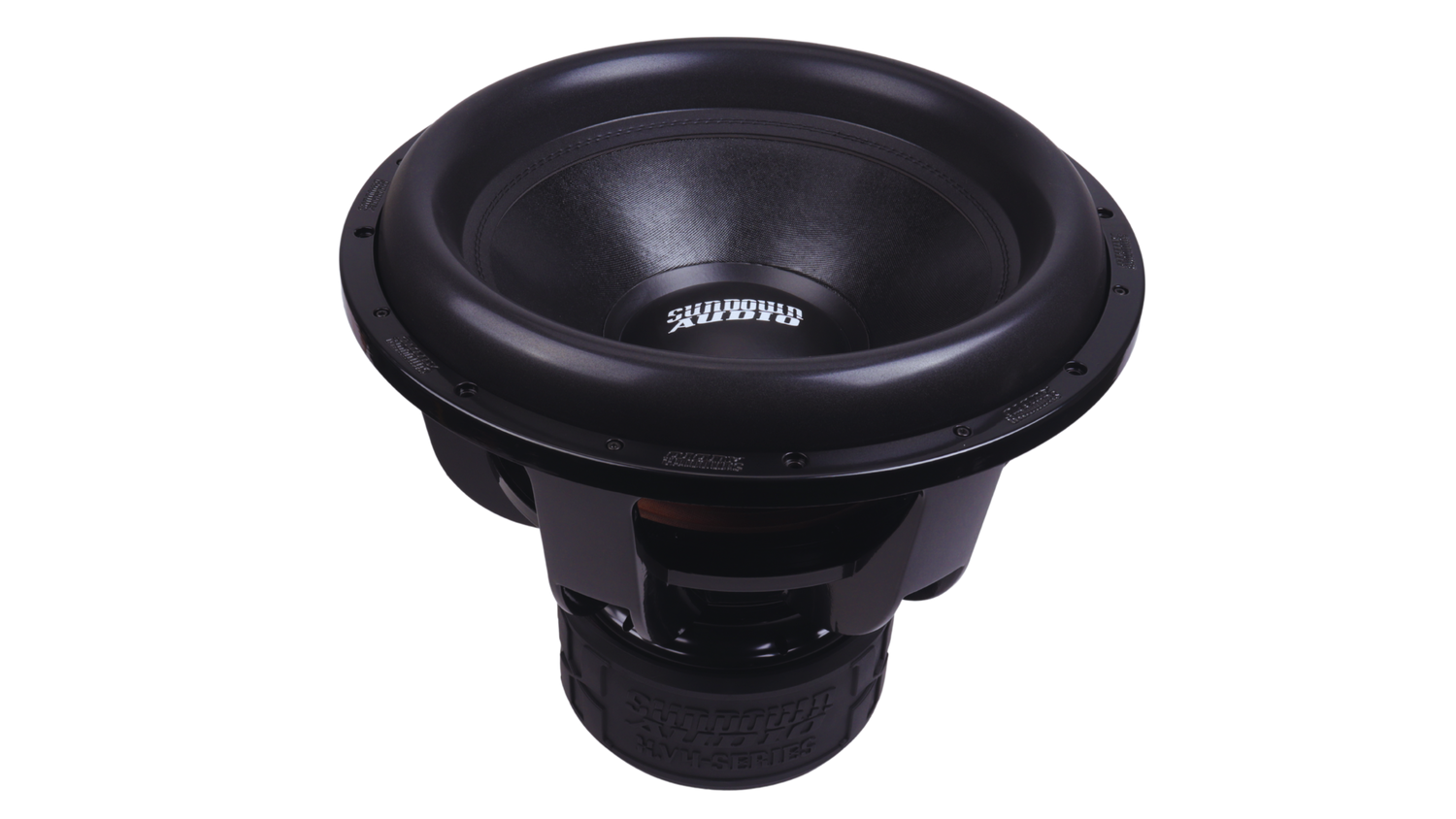

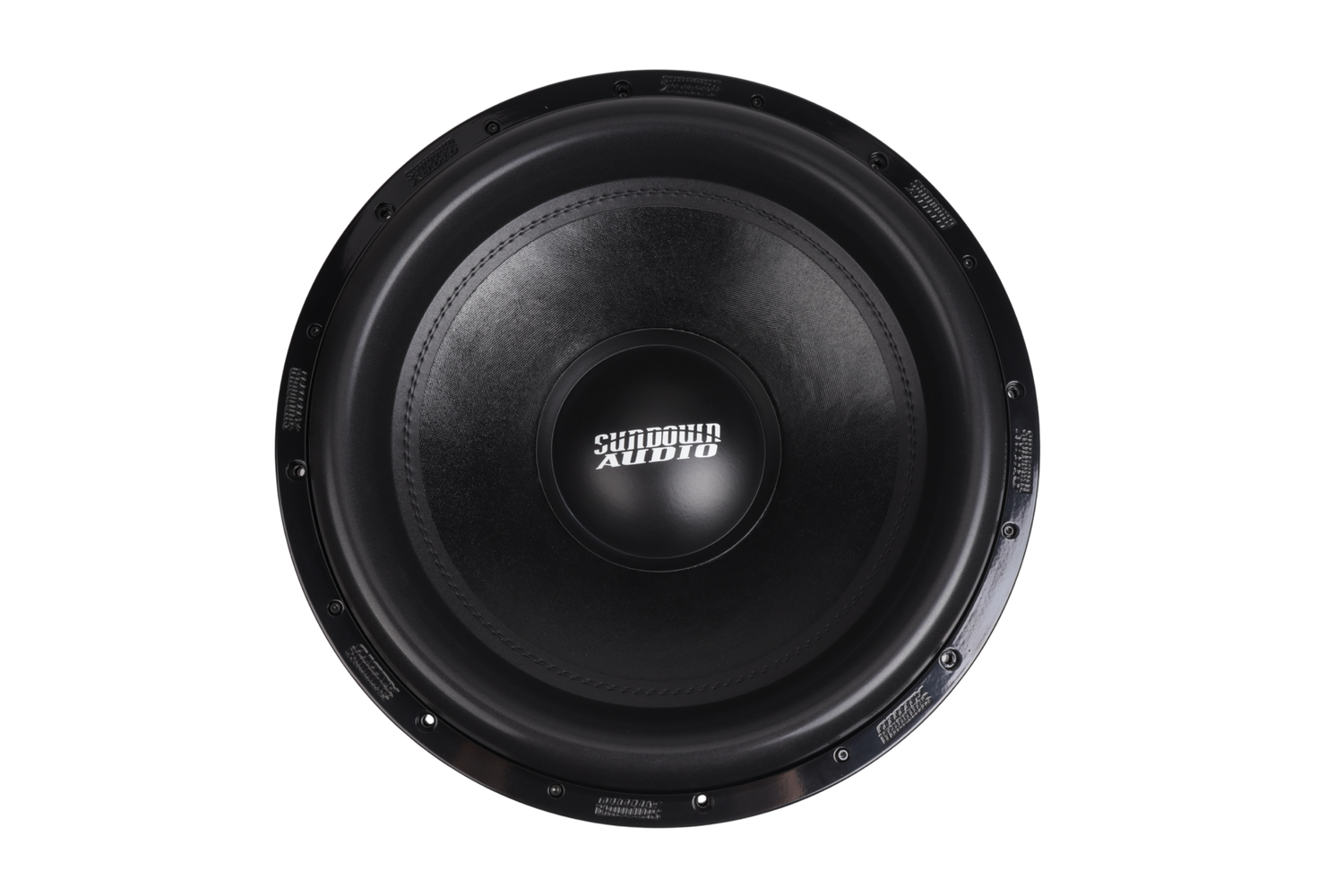

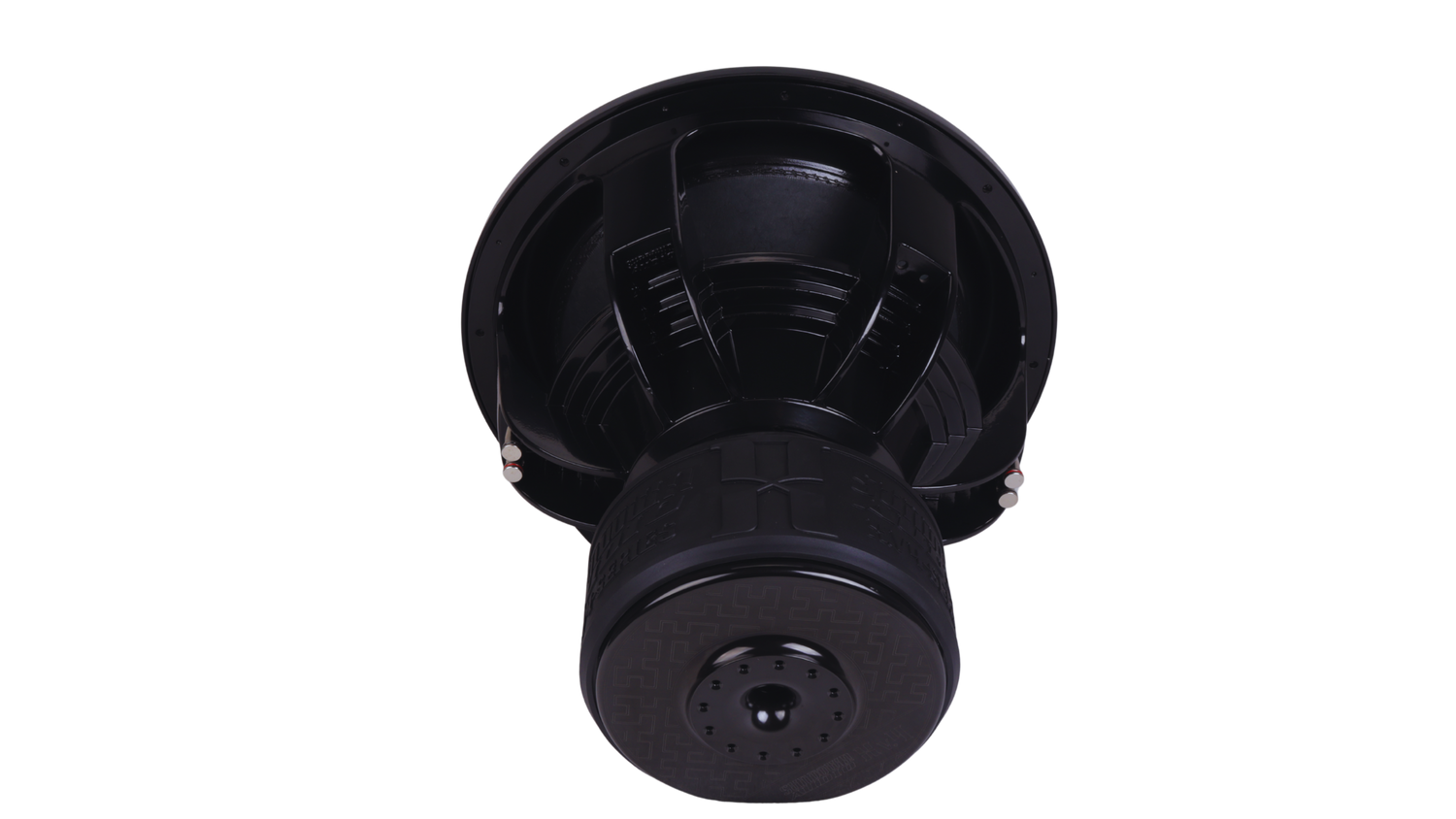

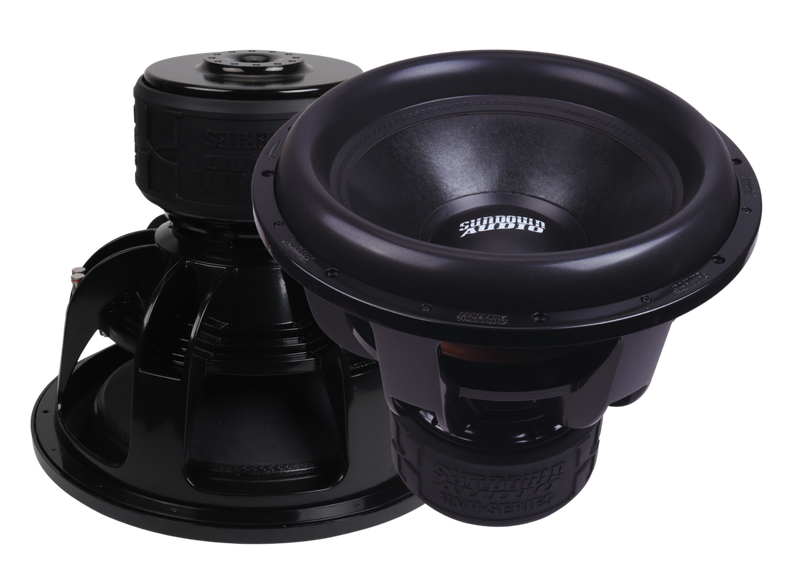

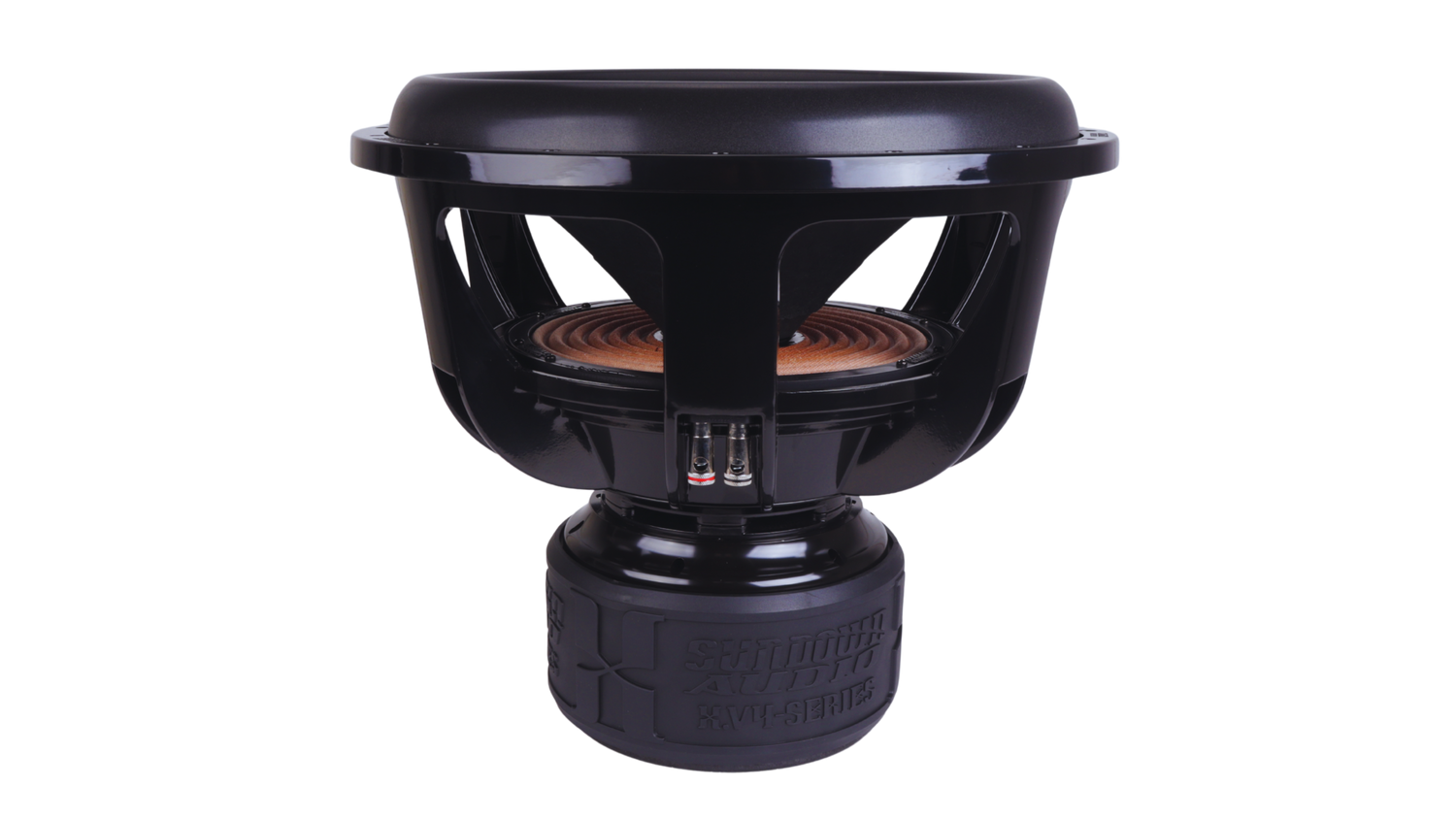

X-Series XV4 18" 3000W RMS Subwoofer
The Sundown Xv4 18″ Subwoofer delivers unmatched power and control for serious bass enthusiasts. Built with high-grade X v.4 coils, this subwoofer is designed to handle up to 2750W RMS and 5500W peak power, ensuring maximum output without distortion.
Its optimized design enhances air movement and cooling, providing long-lasting performance even under heavy use. The advanced motor structure and large cone area (SD 113.41) create powerful low-frequency response and clean sound reproduction.
Perfect for sealed or ported enclosures, the Xv4 18″ gives you flexibility in setup and tuning — whether for SPL competition or everyday high-quality listening.
Durable, reliable, and beautifully crafted, this subwoofer is the next-level upgrade your sound system deserves.
Key Features
-
18″ Xv4 Series Subwoofer
-
2750W RMS / 5500W Peak Power
-
Dual 1-Ohm or Dual 2-Ohm Voice Coil Options
-
Precision-engineered X v.4 Coils for stability
-
Heavy-duty motor with 9.25″ diameter
-
Deep bass response with 30 mm Xmax
-
Sealed or ported enclosure compatibility
-
Recommended Port Tuning: 32 Hz
-
Built for extreme durability and clean sound
Technical Specifications
Specification | Value |
---|---|
RMS Power | 2750 W |
Peak Power | 5500 W |
Displacement | 0.28 cu ft |
Mounting Depth | 15″ |
Outside Diameter | 18.42″ |
Cutout Diameter | 16.69″ |
Motor Diameter | 9.25″ |
Sealed Enclosure | Not Recommended |
Ported Enclosure | 7.00 cu ft |
Recommended Port Tuning | 32 Hz |
Recommended Port Area | 112 sq in |
4th Order Sealed Side | 3.0 cu ft |
4th Order Ported Side | 9.0 cu ft |
4th Order Port Area | 180 sq in |
4th Order Port Length | 8″ |
Xmax | 30 mm |
SD (Cone Area) | 113.41 |
RE (Ohms) | 2.05 / 3.74 |
FS (Hz) | 25.87 / 25.58 |
VAS (L) | 93.67 |
Qes | 0.63 / 0.55 |
Qms | 4.13 / 4.03 |
Qts | 0.54 / 0.84 |
BL (NA) | 19.74 / 26.8 |
Mms | 737.81 / 656.74 |
Sensitivity | 86 / 87 dB |
Specifications
T/S Specs | |
---|---|
RMS Power (D2) |
|
RMS Power (D1) |
|
Peak Power (D1) |
|
Peak Power (D2) |
|
RE D1 (Ohms) |
|
RE D2 (Ohms) |
|
FS D1 (Hz) |
|
FS D2 (Hz) |
|
VAS D1 (L) |
|
VAS D2 (L) |
|
Qes D1 |
|
Qes D2 |
|
Qms D1 |
|
Qms D2 |
|
Qts D1 |
|
Qts D2 |
|
BL D1 (NA) |
|
BL D2 (NA) |
|
Mms D1 (Grams) |
|
Mms D2 (Grams) |
|
Cms D1 (uM/N) |
|
Cms D2 (uM/N) |
|
Sens D1 (dB @ 1w/1m) |
|
Sens D2 (dB @ 1w/1m) |
|
Xmax D1 |
|
Xmax D2 |
|
Subwoofer Measurements | |
Displacement (Inches) |
|
Depth (Inches) |
|
Cutout (Inches) |
|
Motor Diameter (Inches) |
|
Ported Enclosure Specs | |
Ported Enclosure Size |
|
Recommended Port Area |
|
Recommended Port Tuning |
|
4th Order Enclosure Specs | |
4th Order Sealed Side |
|
4th Order Ported Side |
|
4th Order Port Area |
|
4th Order Port Length |
|
