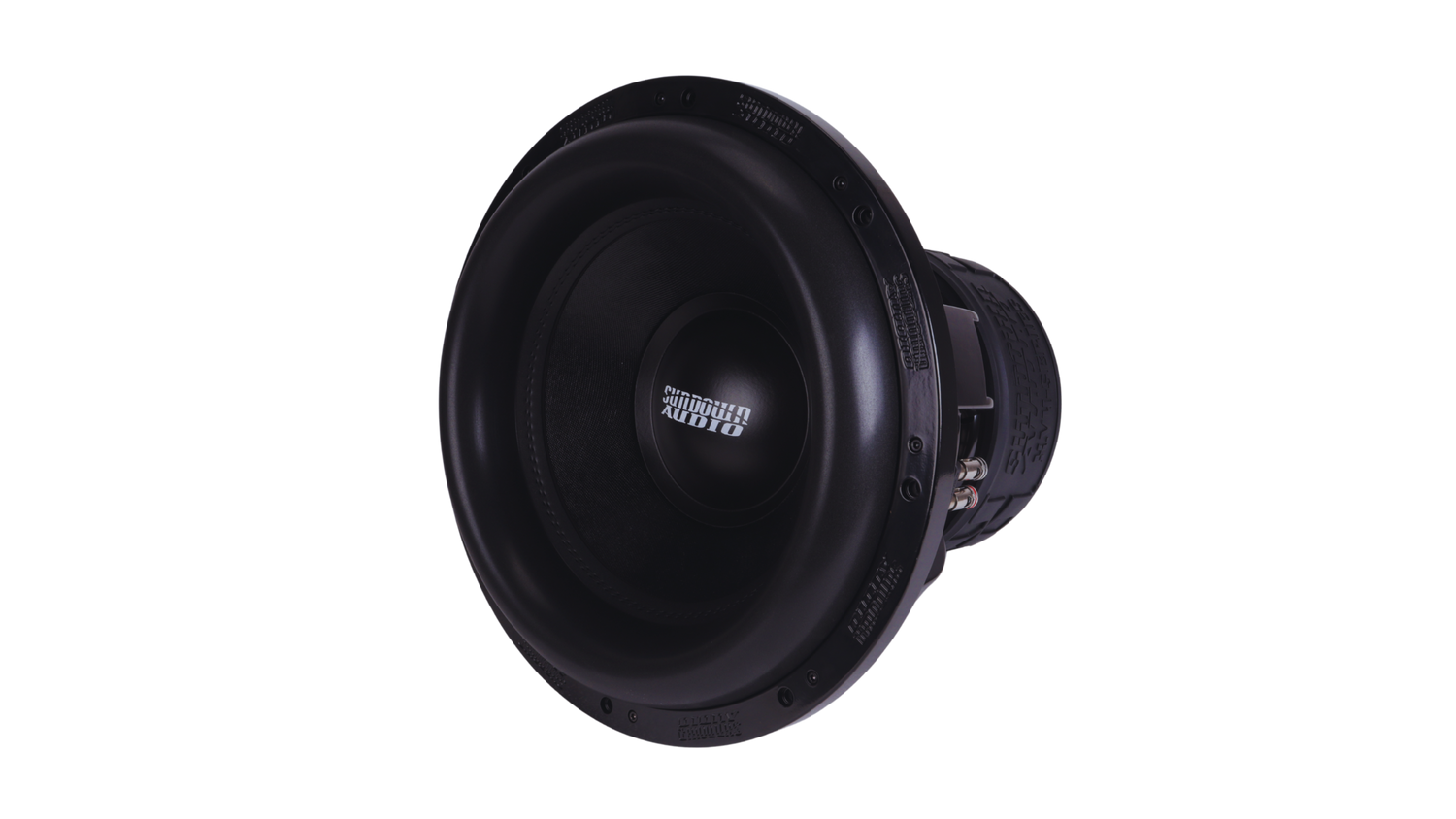

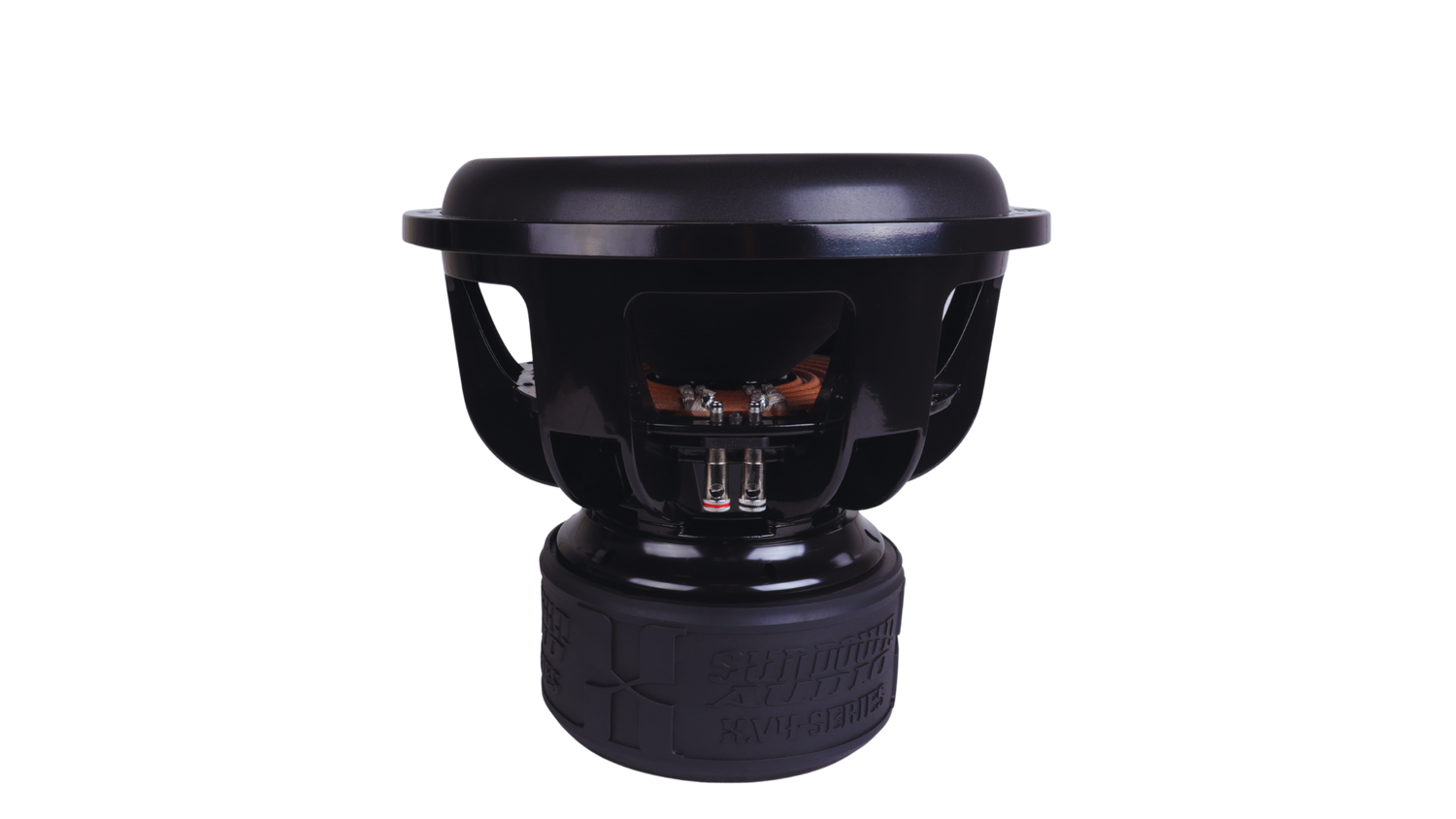

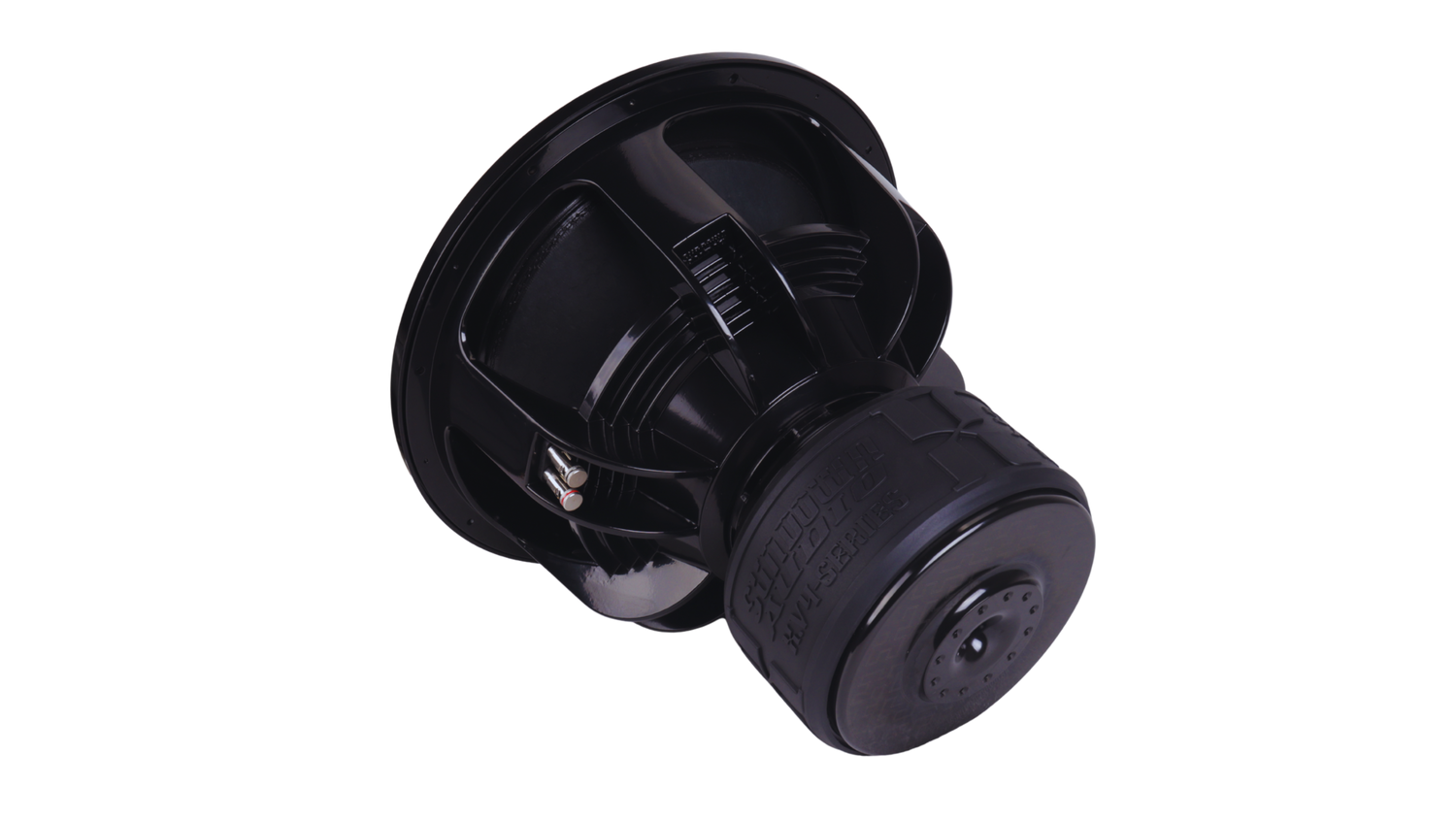

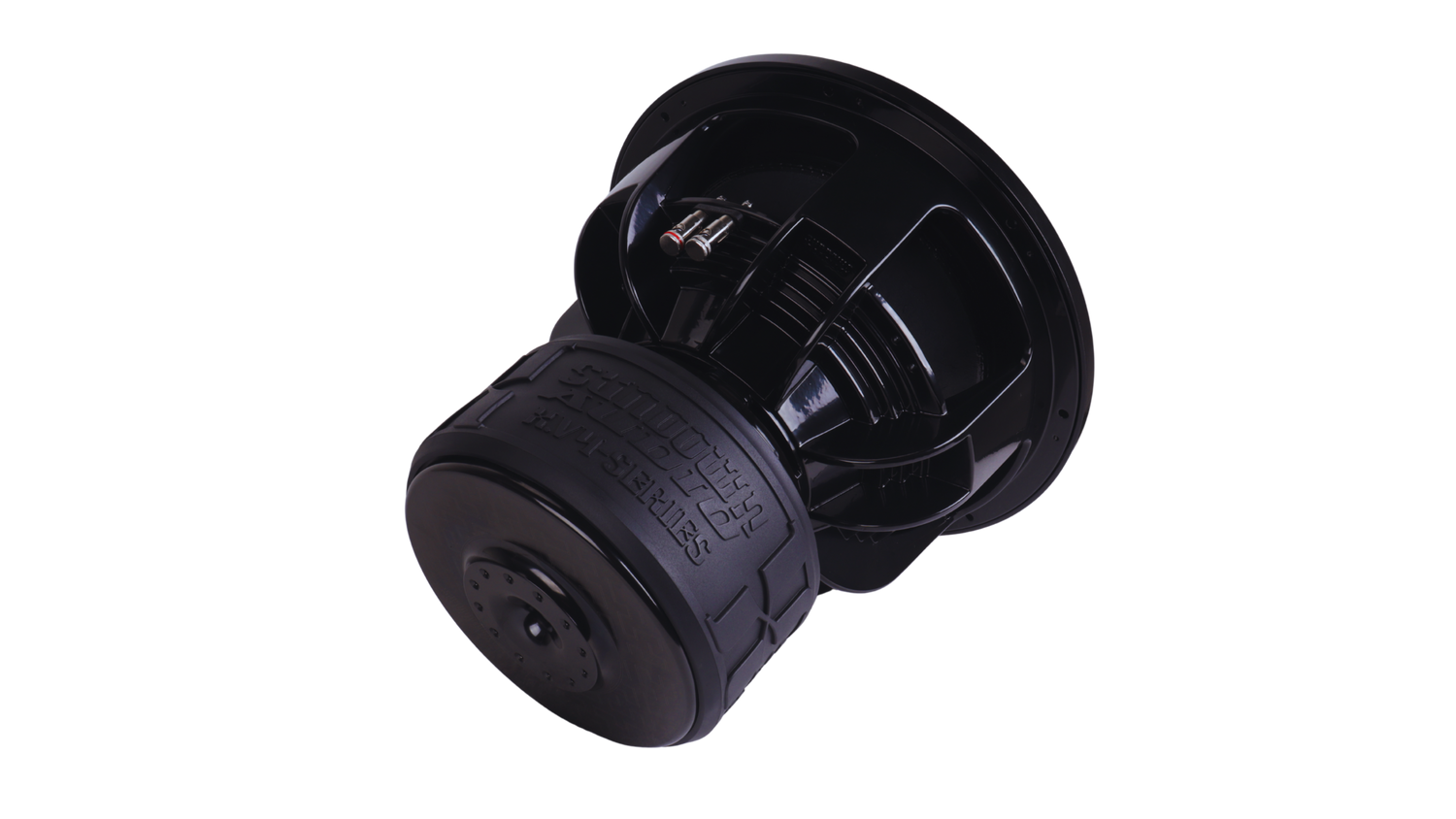

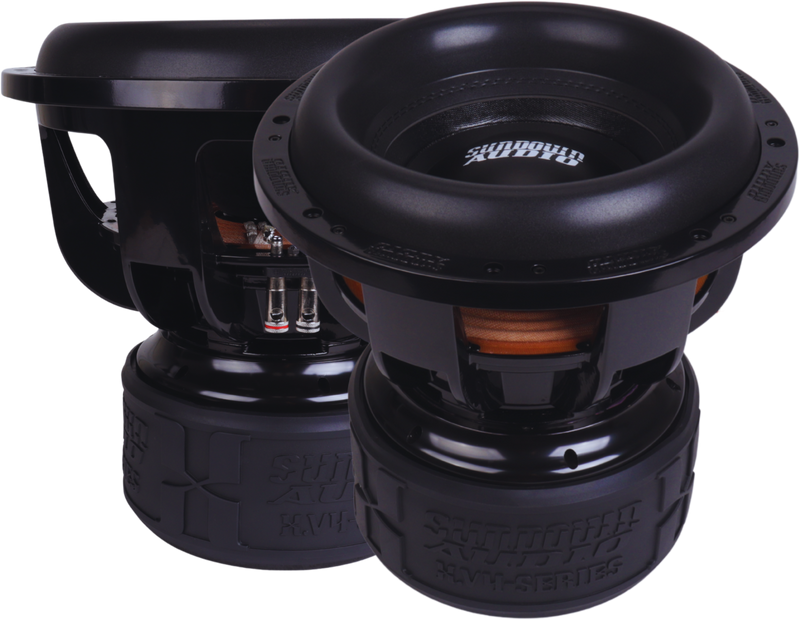

X-Series XV4 15" 3000W RMS Subwoofer
The Sundown Audio XV4 15″ Subwoofer delivers the ultimate low-frequency experience for serious bass lovers. Built with the advanced X v.4 coil design, this subwoofer offers extreme power handling and consistent performance under heavy loads.
With up to 2750W RMS and 5500W peak power, it ensures clean, distortion-free sound even at the highest volumes. The durable motor structure and optimized cone area (72.58 in²) provide deeper lows and better air displacement for maximum sound pressure.
Engineered for flexibility, the XV4 15″ works best in ported enclosures (4.25 cu ft, tuned to 32 Hz) but can also be customized for complex box designs like 4th order setups. Every element — from the high-grade magnet to the precision voice coil — is crafted to deliver unmatched performance and reliability.
Perfect for audiophiles and competitors seeking solid bass impact, this subwoofer combines engineering excellence and raw power in one package.
Key Features
-
15″ high-performance subwoofer with X v.4 coils
-
2750W RMS / 5500W peak power handling
-
30mm Xmax for strong linear excursion
-
Optimized motor design (9.25″ diameter)
-
Recommended ported box: 4.25 cu ft @ 32 Hz
-
Robust cone design for high SPL output
-
Ideal for competitive and high-end car audio systems
Technical Specifications (Metafields Format)
| Parameter | XV4 15D1 | XV4 15D2 |
|---|---|---|
| RMS Power | 2750W | 2750W |
| Peak Power | 5500W | 5500W |
| Displacement | 0.26 cu.ft. | 0.26 cu.ft. |
| Mounting Depth | 12.95″ | 12.95″ |
| Outside Diameter | 15.51″ | 15.51″ |
| Cutout Diameter | 13.93″ | 13.93″ |
| Motor Diameter | 9.25″ | 9.25″ |
| Sealed Enclosure | Not Recommended | Not Recommended |
| Ported Enclosure | 4.25 cu ft | 4.25 cu ft |
| Recommended Port Tuning | 32 Hz | 32 Hz |
| Recommended Port Area | 68 sq in | 68 sq in |
| 4th Order Sealed Side | 2.0 cu ft | 2.0 cu ft |
| 4th Order Ported Side | 6.0 cu ft | 6.0 cu ft |
| 4th Order Port Area | 120 sq in | 120 sq in |
| 4th Order Port Length | 8″ | 8″ |
| Xmax | 30mm | 30mm |
| SD (Cone Area) | 72.58 in² | 72.58 in² |
| RE (Ohms) | 3.2 | 3.74 |
| FS (Hz) | 29.91 | 29.51 |
| Qes | 0.55 | 0.49 |
| Qms | 4.87 | 4.08 |
| Qts | 0.49 | 0.44 |
| BL (NA) | 22.32 | 27.44 |
| Mms (g) | 457.51 | 538.24 |
| CMS | 61.87 | 54.02 |
| Sensitivity | 85.29 dB | 85.1 dB |
Specifications
| T/S Specs | |
|---|---|
RMS Power (D2) |
|
RMS Power (D1) |
|
Peak Power (D1) |
|
Peak Power (D2) |
|
RE D1 (Ohms) |
|
RE D2 (Ohms) |
|
FS D1 (Hz) |
|
FS D2 (Hz) |
|
VAS D1 (L) |
|
VAS D2 (L) |
|
Qes D1 |
|
Qes D2 |
|
Qms D1 |
|
Qms D2 |
|
Qts D1 |
|
Qts D2 |
|
Le D1 (mH) |
|
BL D1 (NA) |
|
BL D2 (NA) |
|
Mms D1 (Grams) |
|
Mms D2 (Grams) |
|
Cms D1 (uM/N) |
|
Cms D2 (uM/N) |
|
Sens D1 (dB @ 1w/1m) |
|
Sens D2 (dB @ 1w/1m) |
|
Xmax D1 |
|
Xmax D2 |
|
| Subwoofer Measurements | |
Displacement (Inches) |
|
Depth (Inches) |
|
Cutout (Inches) |
|
Motor Diameter (Inches) |
|
| Ported Enclosure Specs | |
Ported Enclosure Size |
|
Recommended Port Area |
|
Recommended Port Tuning |
|
| 4th Order Enclosure Specs | |
4th Order Sealed Side |
|
4th Order Ported Side |
|
4th Order Port Area |
|
4th Order Port Length |
|
