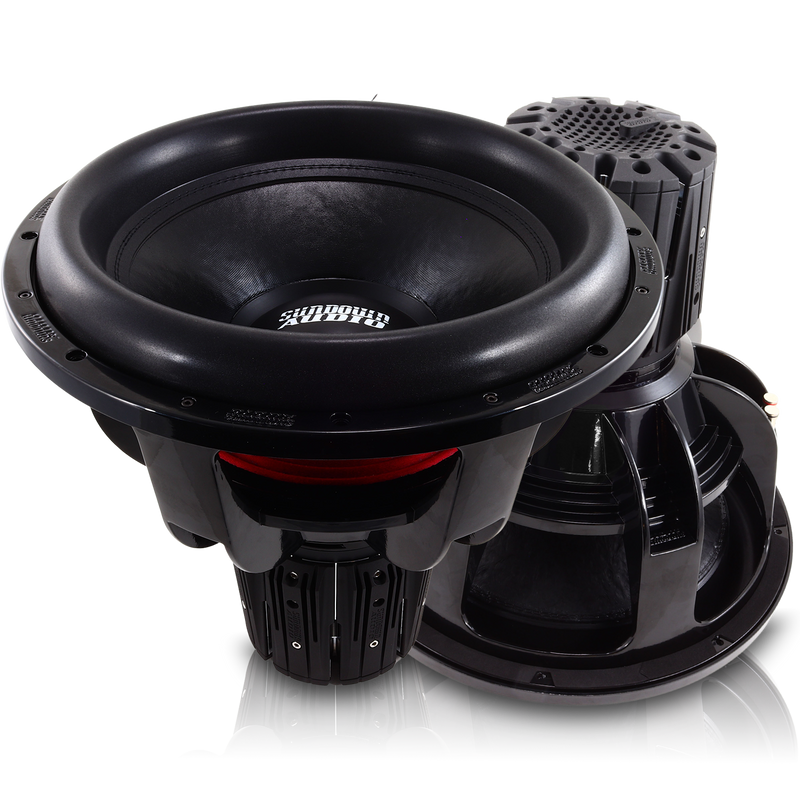

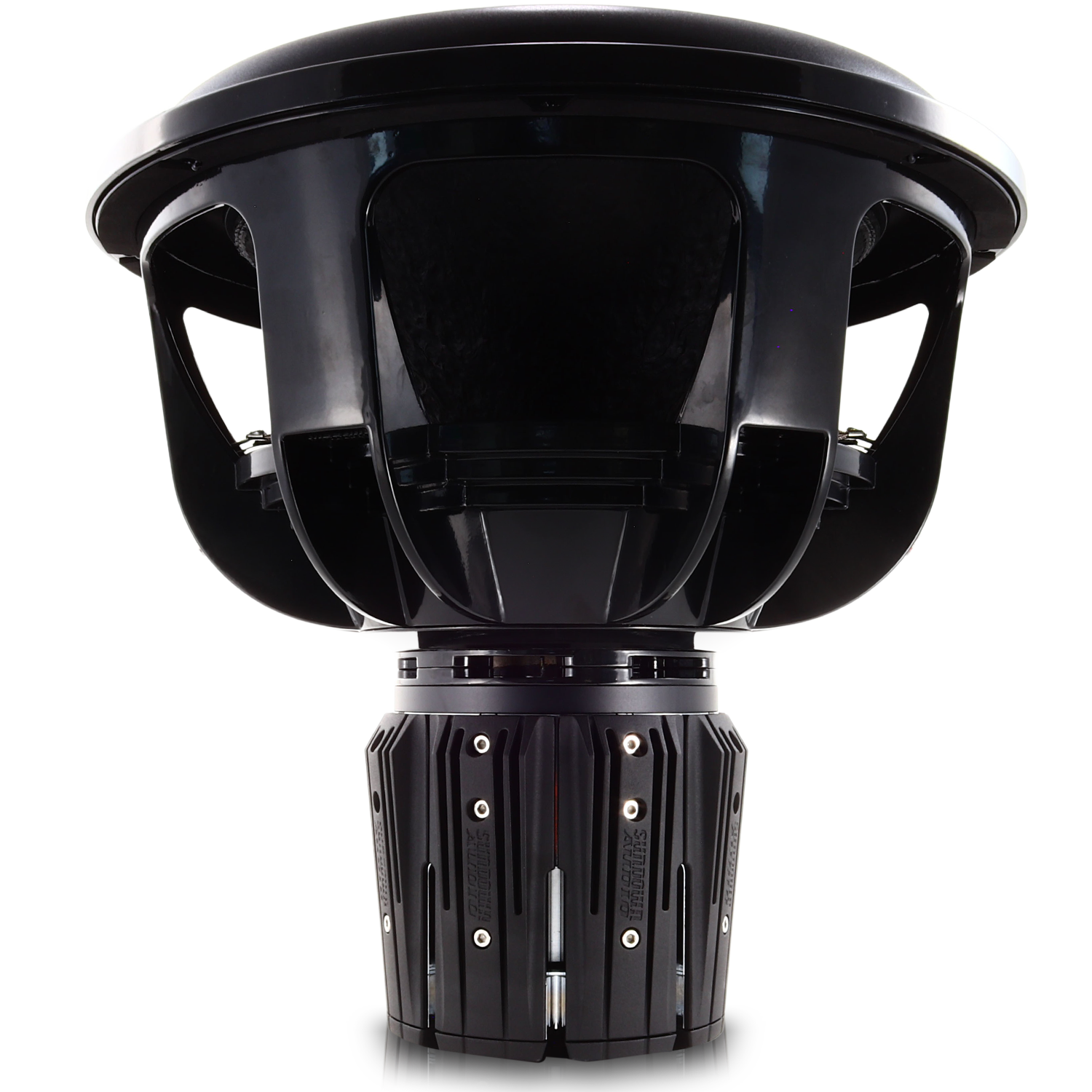

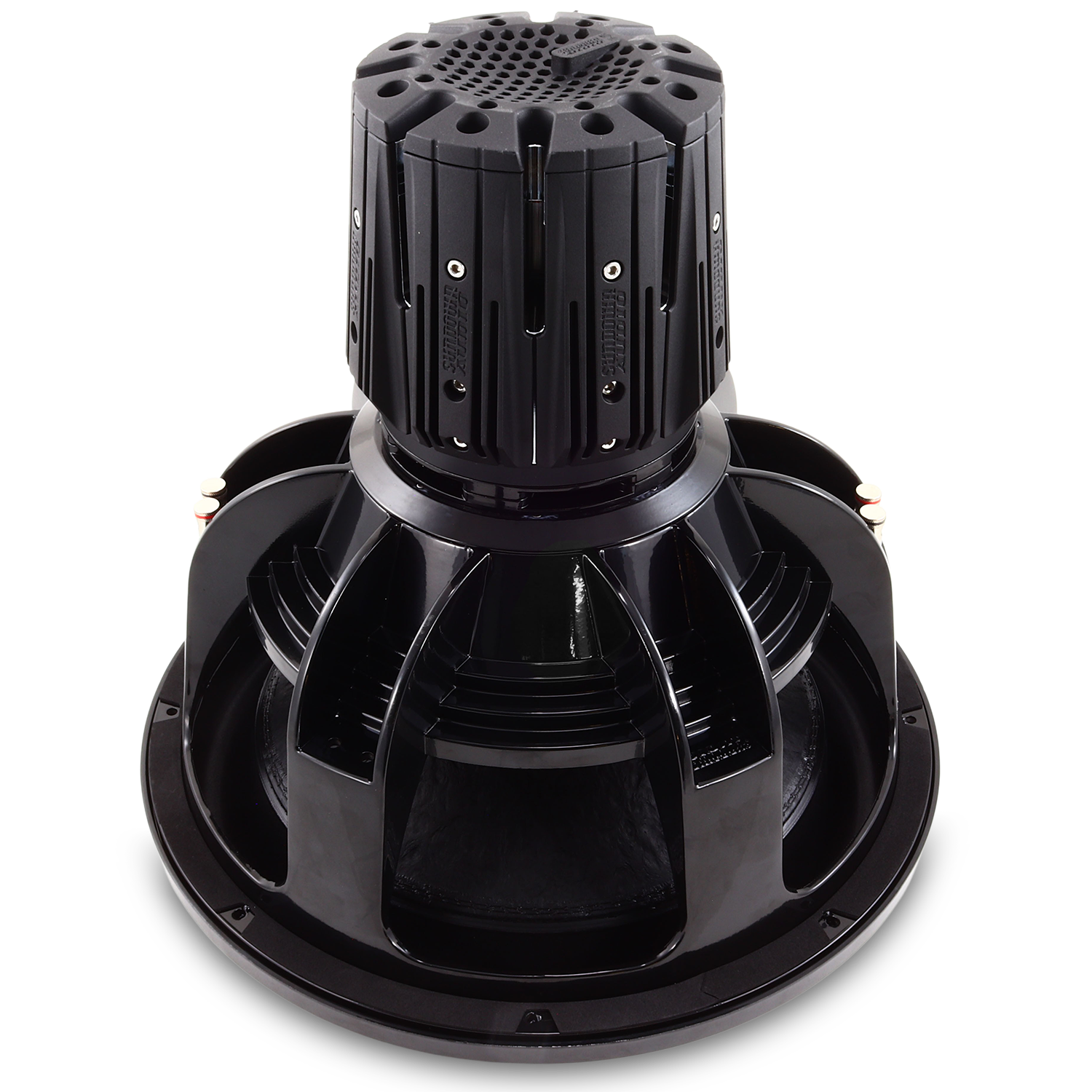

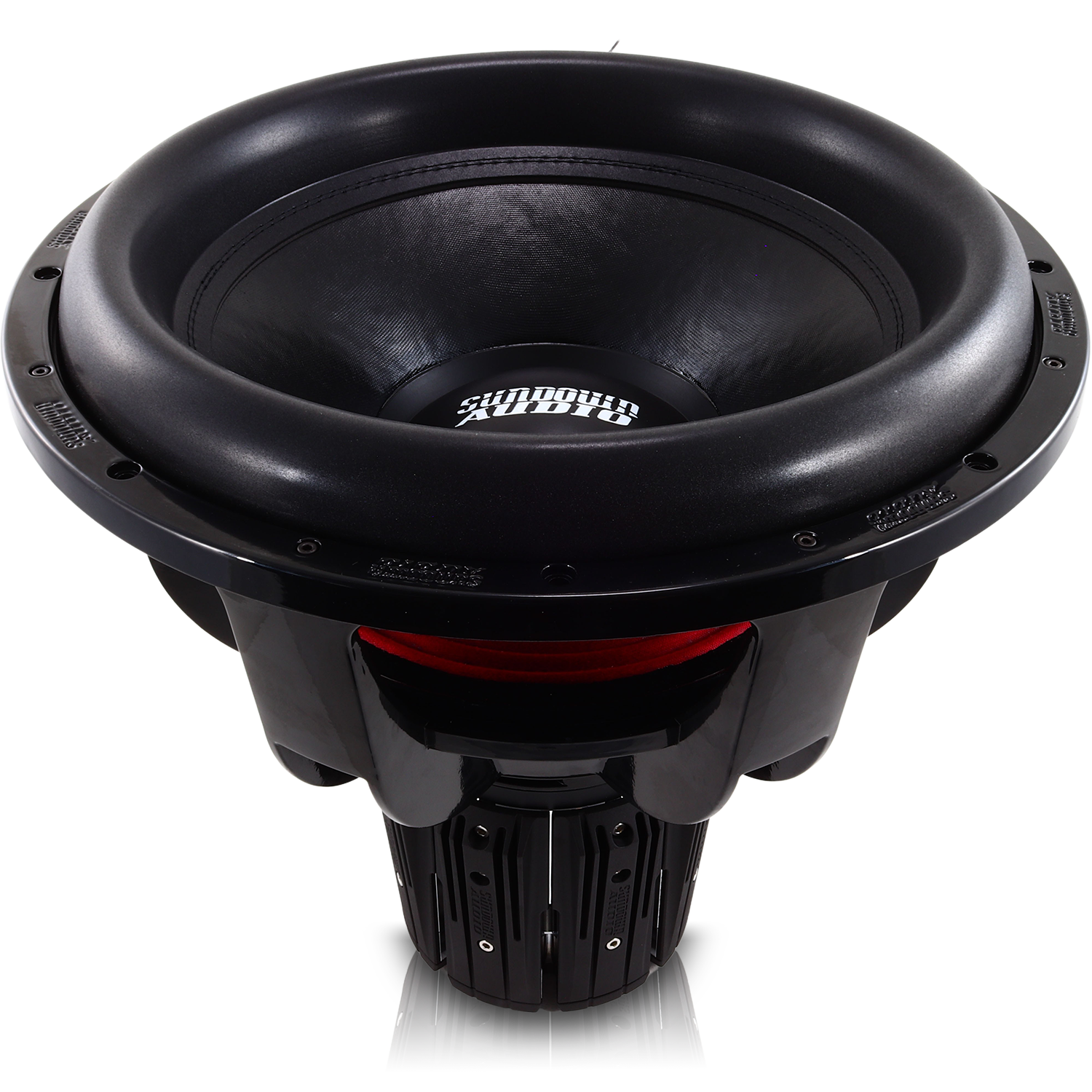

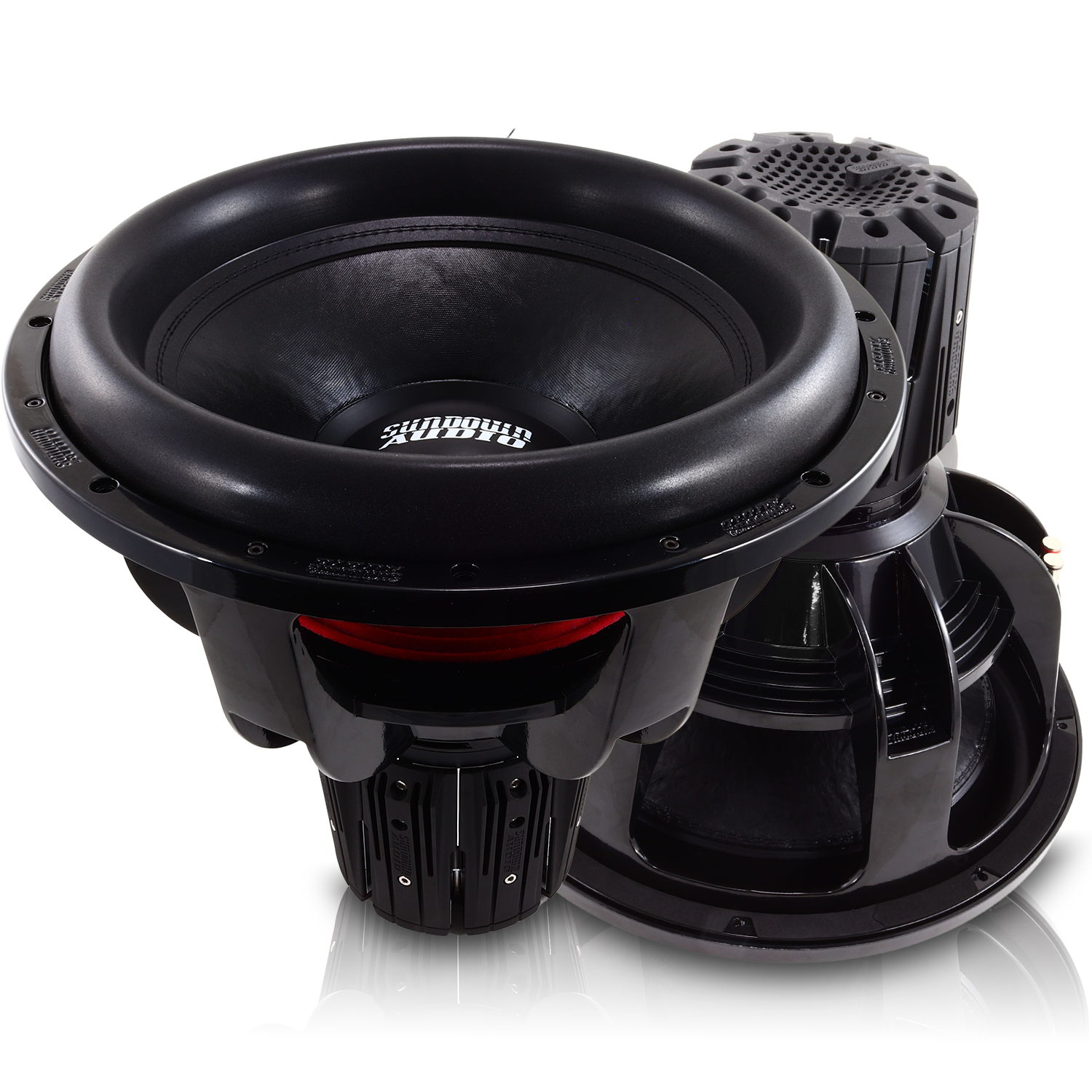

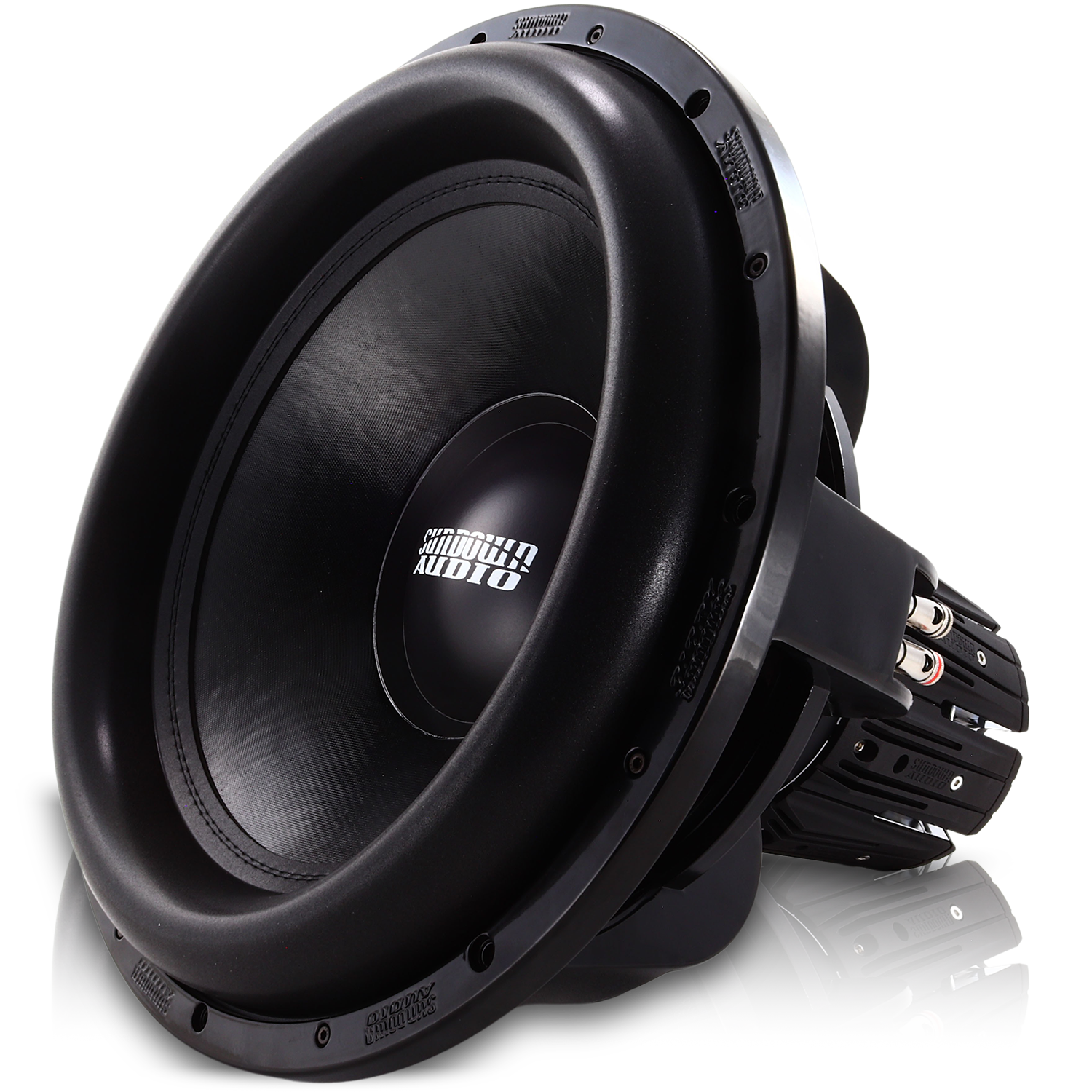

Nightshade NS-Series NS6 18" 3500W Subwoofer NS v.6
Regular price
$1,099.99 USD
Regular price
Shipping calculated at checkout.
- 3500 Watt RMS / 7000 Watt Peak
- Dual 1 or 2 ohm voice coils
- Optional carbon cone/dustcap available
- Custom tooled basket
- Custom-tooled ultra-linear spider packs
- Extended shorting ring
- Eight-layer voice coil
- Custom tooled basket
- Cast aluminum cooling ring
- Ultra-linear spider pack
- Unique air exchanging system forces hot air out and cool air in
- Aluminum vent ring
- Ultra-linear Mega Roll V2 surround
The Nightshade 3,000-watt Neodymium sub is engineered to deliver incredibly powerful low end, with an extremely linear excursion and next-level thermal management. It features an eight-layer voice coil for excellent power handling and an extended shorting ring to minimize distortion and deliver a smooth, highly accurate sound at extreme SPL levels.
Specifications:
NS V.6 18
| RE (Ohms) | 1.8090 | 3.6629 |
| FS (Hz) |
28.6283
|
28.3677 |
| VAS (L) | 78.9335 |
82.9318 |
| Qes | 0.4955 | 0.4948 |
| Qms | 5.2141 | 5.1127 |
| Qts | 0.4525 | 0.4511 |
| Le (mH) | 1.7089 | 3.3898 |
| BL (NA) | 21.7903 | 30.4106 |
| Mms (Grams) | 722.9906 |
700.8333 |
| Cms (uM/N) | 42.7481 | 44.9135 |
| Sens (dB @ 1w/1m) | 87.4738 | 87.5755 |
| Xmax | 35mm | 35mm |
| T/S SPECS | NS V.6 18″ D1 | NS V.6 18″ D2 |
|---|
ENCLOSURE SPECIFICATIONS
| Sealed Enclosure | Not Recommended |
| Ported Enclosure | 7 cu.ft. net |
| Recommended Tuning | 32Hz |
| Recommended Port Area | 100 sq.in. |
| Displacement | .27 cu. ft. |
| Depth | 16.30" |
| Outside Diameter | 18.62" |
| Cut-Out | 16.69" |
| Physical Dimensions | Download |
