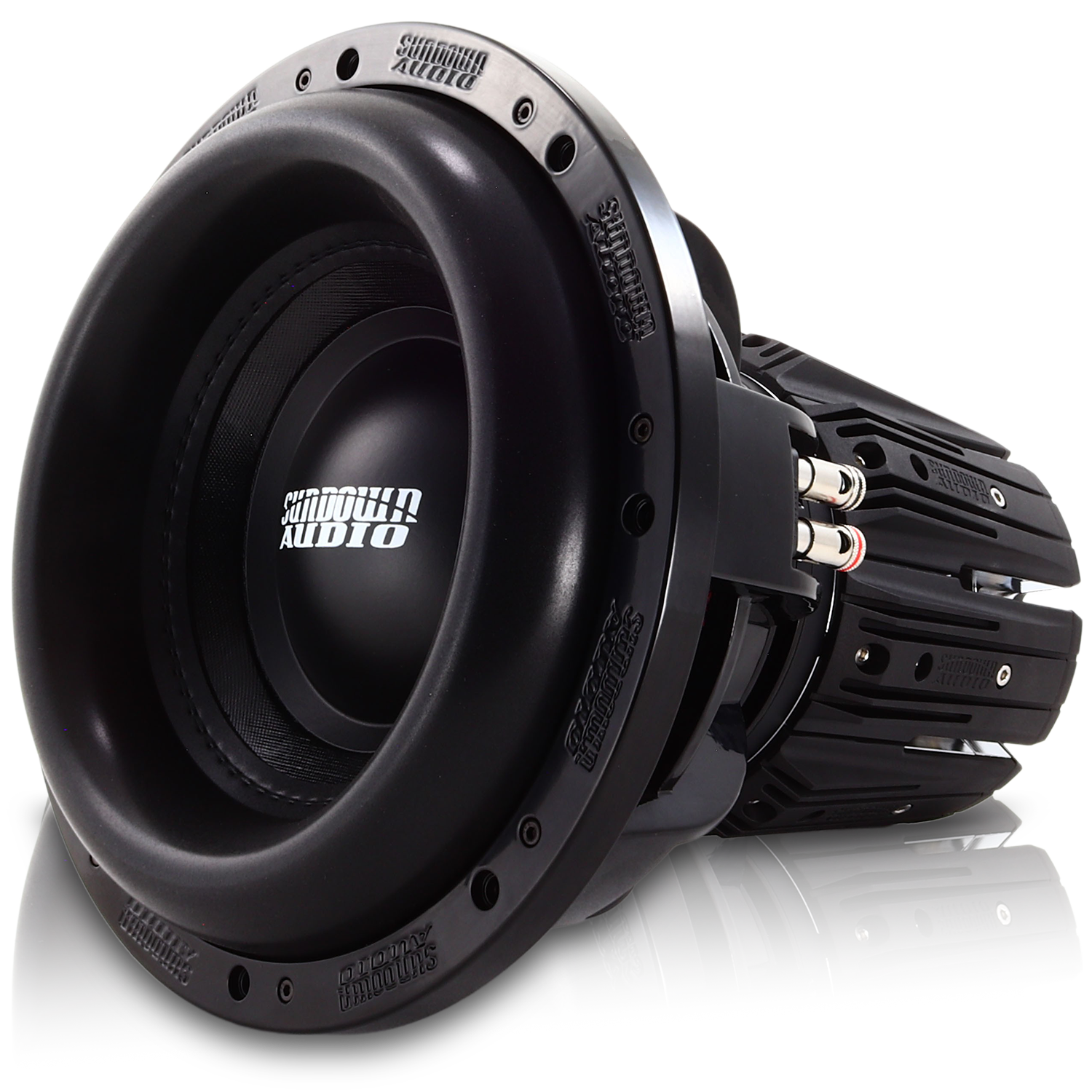

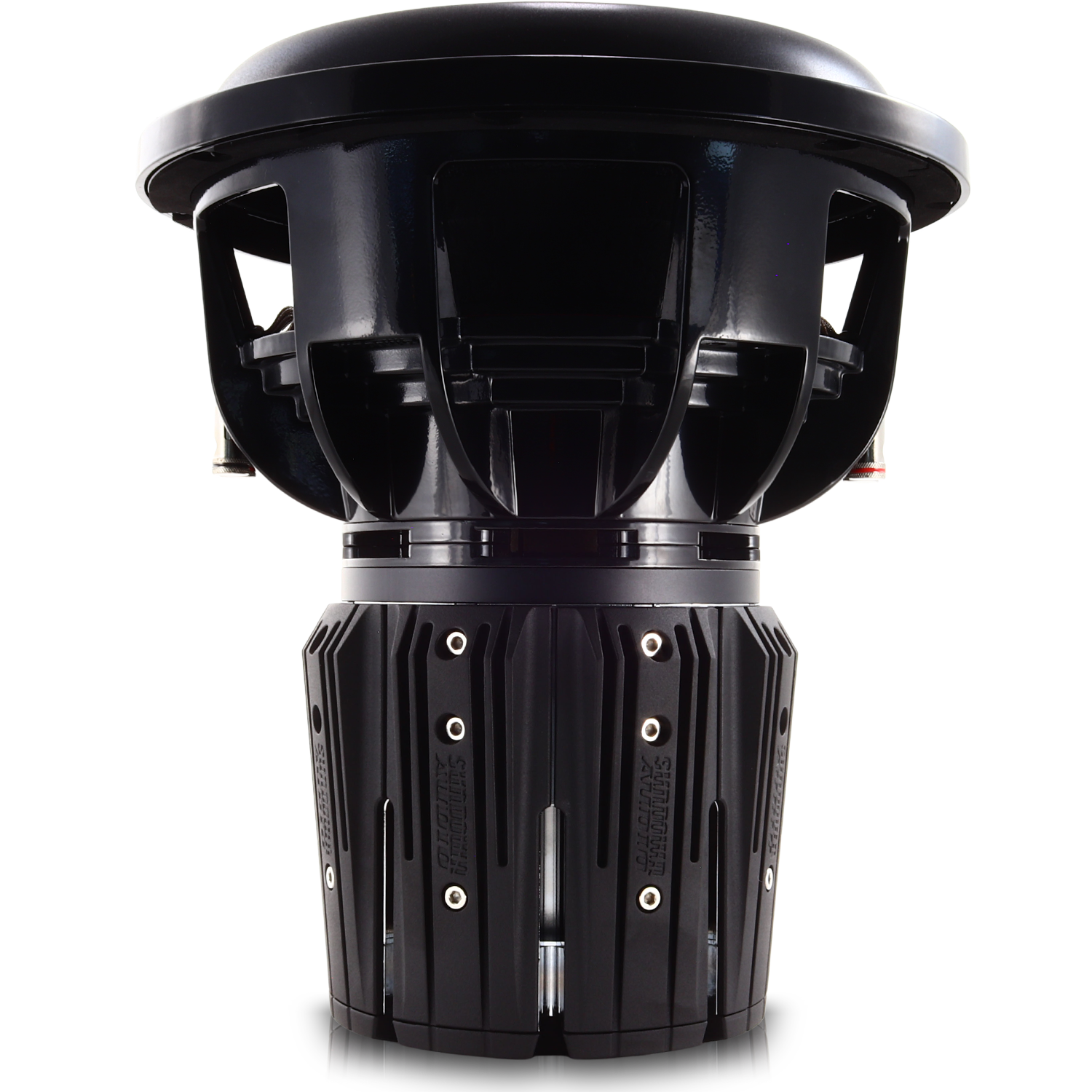

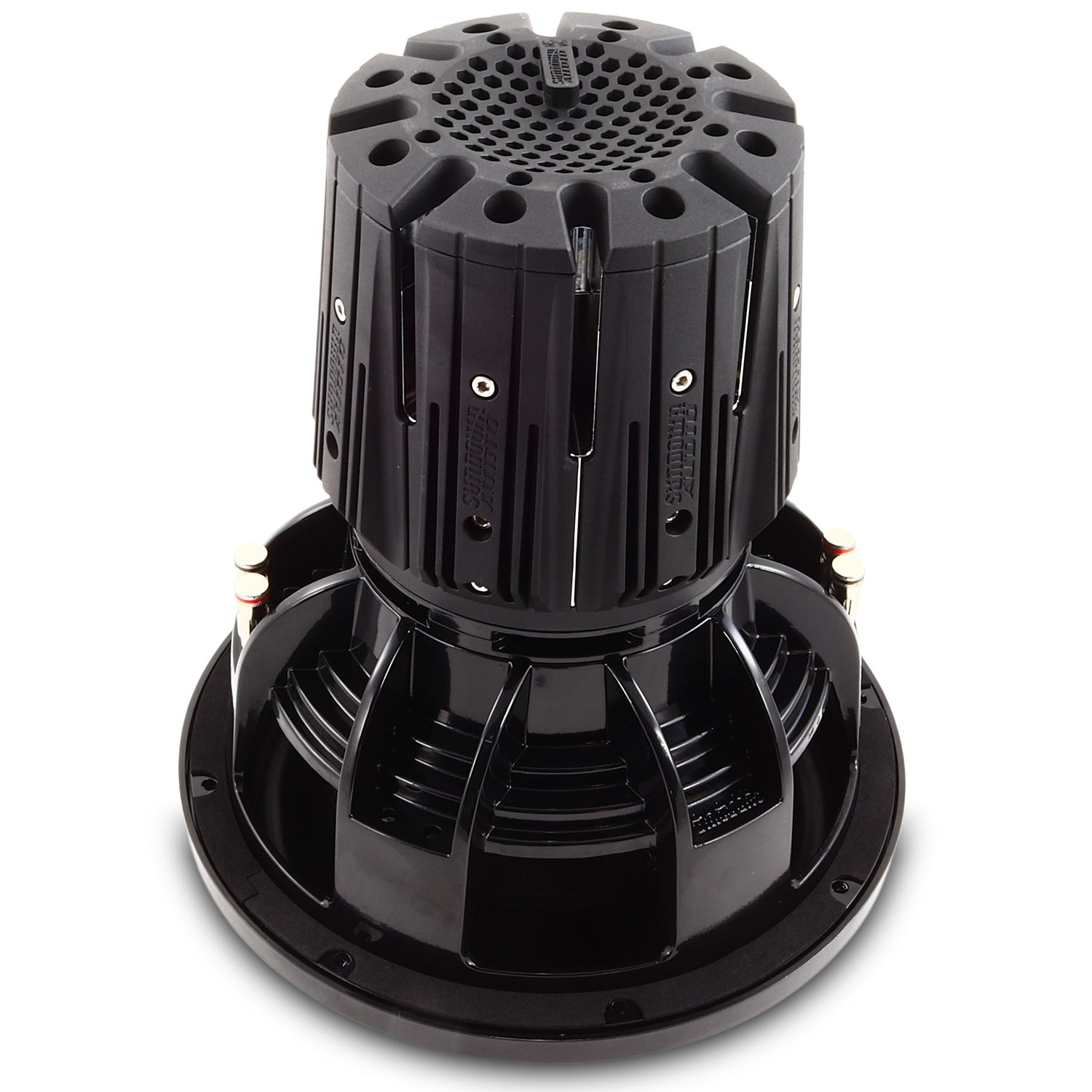

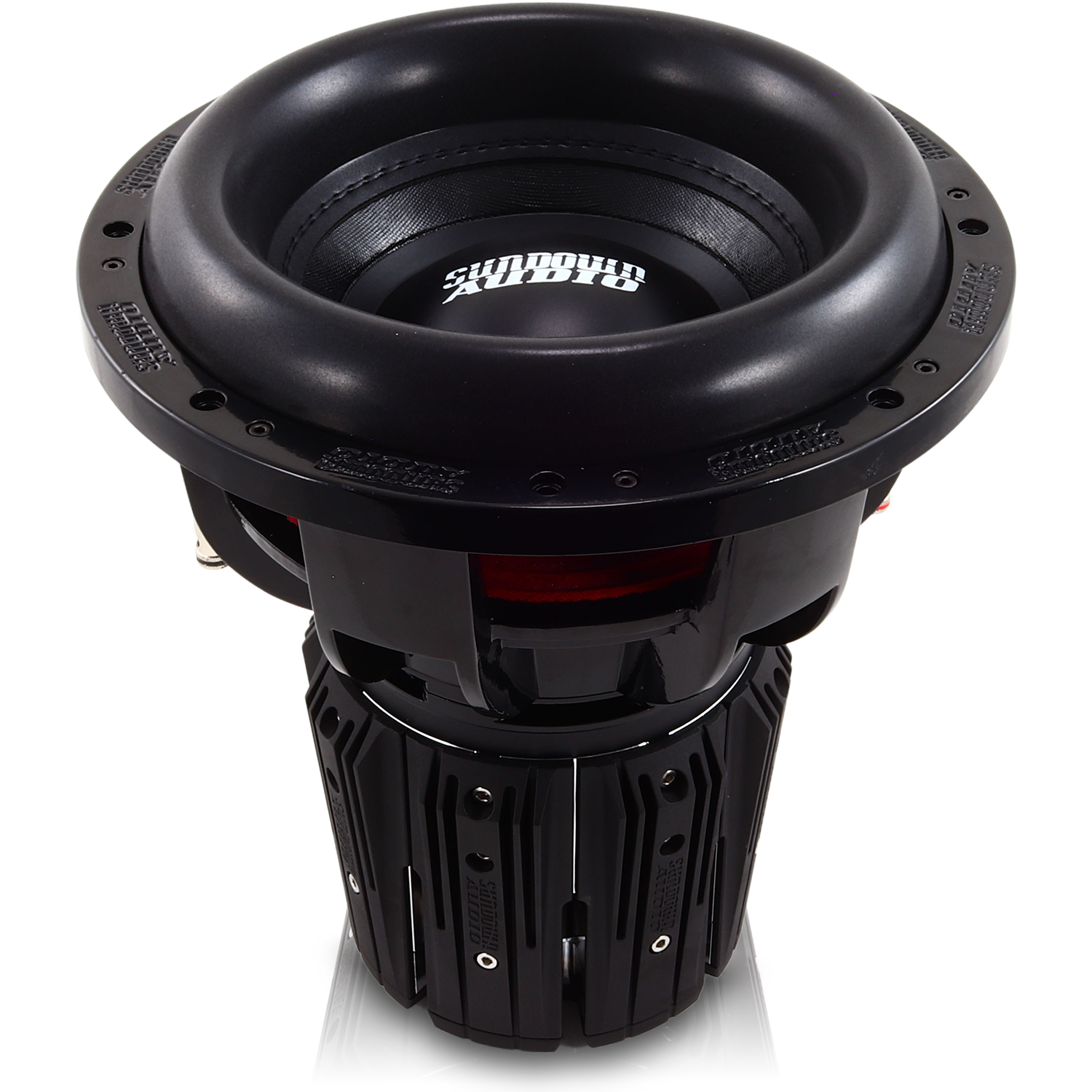

Nightshade NS-Series NS6 12" 3000W Subwoofer NS v.6 *USED*
This is a used product that has been professionally rebuilt here at Sundown Audio. It comes with a non-doa warranty only. That means they are guaranteed to work when you receive it but no further warranty afterwards. Let us know within 24 hours of delivery if this product has an issue. We will not warranty any used subwoofer after that time. These potentially have scratches & scuffs on the magnets/motors and will not be in new condition.
- 3,000-Watt RMS
- Dual 1 or 2 ohm voice coils
- Optional carbon cone/dustcap available
- Custom tooled basket
- Custom-tooled ultra-linear spider packs
- Extended shorting ring
- Eight-layer voice coil
- Custom tooled basket
- Cast aluminum cooling ring
- Ultra-linear spider pack
- Unique air exchanging system forces hot air out and cool air in
- Aluminum vent ring
- Ultra-linear Mega Roll V2 surround
Features:
The Nightshade 3,000-watt Neodymium sub is engineered to deliver incredibly powerful low end, with an extremely linear excursion and next-level thermal management. It features an eight-layer voice coil for excellent power handling and an extended shorting ring to minimize distortion and deliver a smooth, highly accurate sound at extreme SPL levels.
Specifications:
NS V.6 12
| RE (Ohms) | 1.8468 | 3.3377 |
| FS (Hz) | 37.6157 | 37.1375 |
| VAS (L) | 11.7603 | 11.8372 |
| Qes | 0.4665 | 0.4388 |
| Qms | 5.0189 | 5.2560 |
| Qts | 0.4268 | 0.4050 |
| Le (mH) | 1.6495 | 3.1147 |
| BL (NA) | 20.5703 | 28.6043 |
| Mms (Grams) | 452.2261 | 460.9337 |
| Cms (uM/N) | 39.5864 | 39.8452 |
| Sens (dB @ 1w/1m) | 83.0242 | 83.1522 |
| Xmax | 35mm | 35mm |
| T/S SPECS | NS V.6 12″ D1 | NS V.6 12″ D2 |
|---|
ENCLOSURE SPECIFICATIONS
| Sealed Enclosure | Not Recommended |
| Ported Enclosure | 2.5 cu.ft. net |
| Recommended Tuning | 32Hz |
| Recommended Port Area | 38 sq.in. |
| Displacement | .24 cu. ft. |
| Depth | 12.75" |
| Outside Diameter | 12.81" |
| Cut-Out | 11.19" |
| Physical Dimensions | Download |
