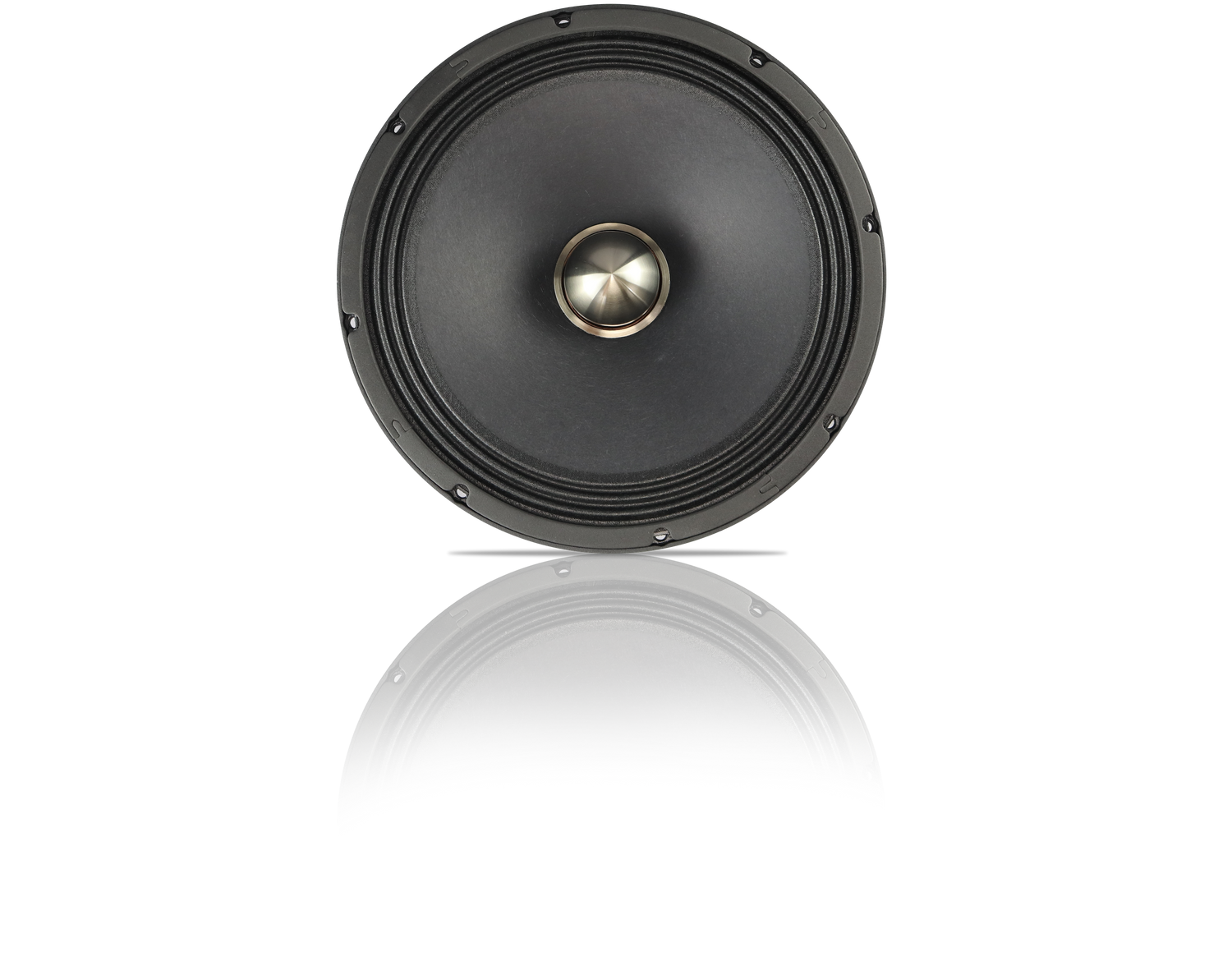

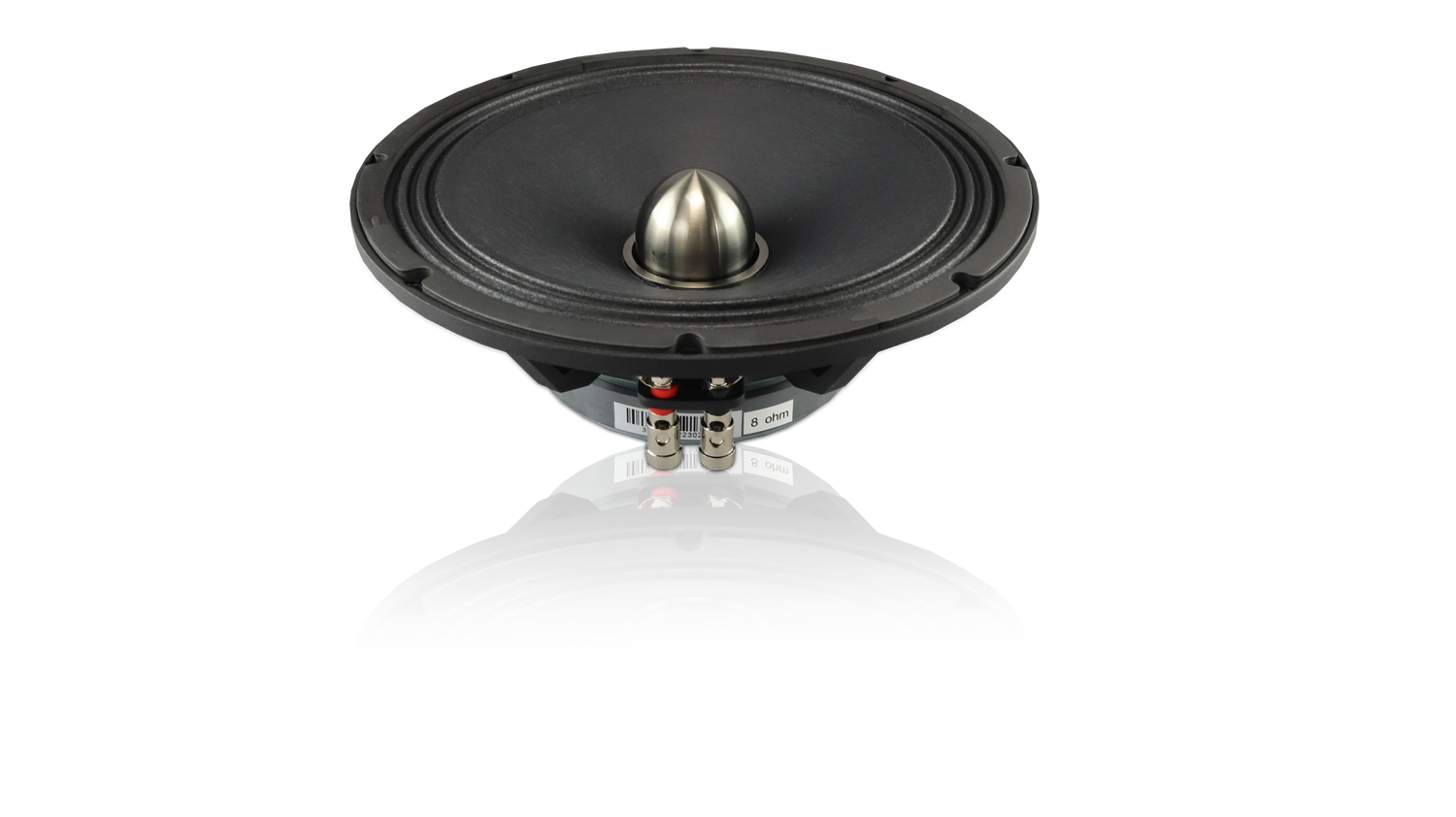

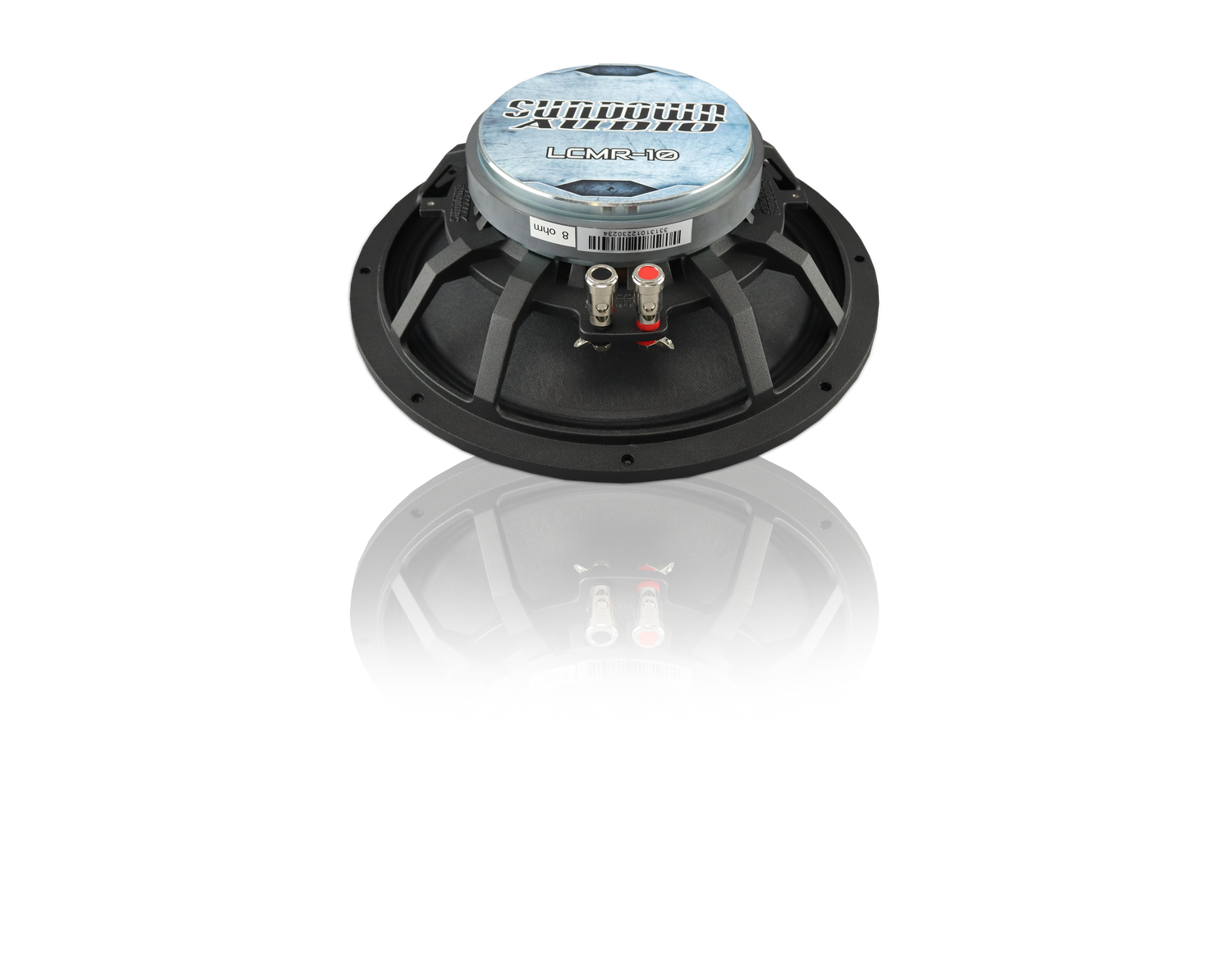

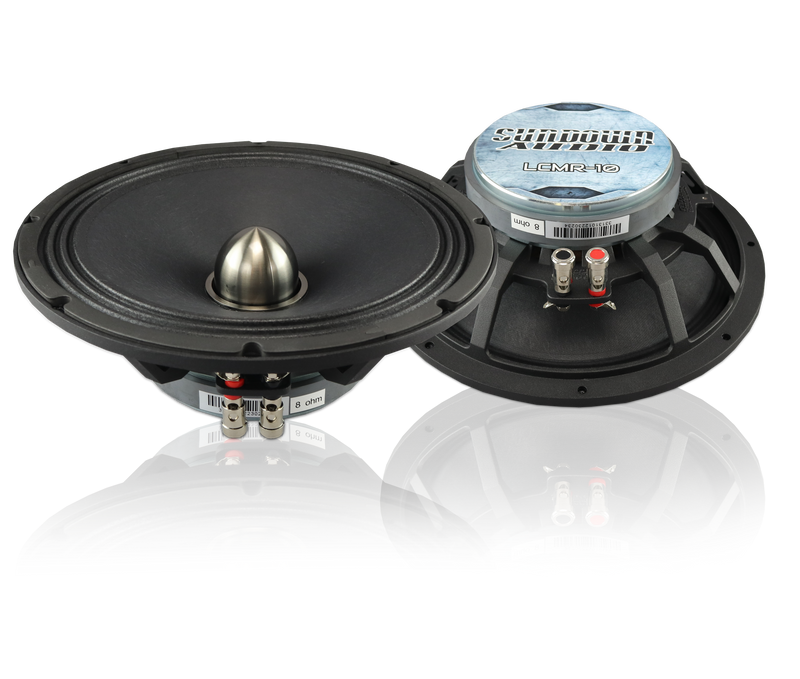

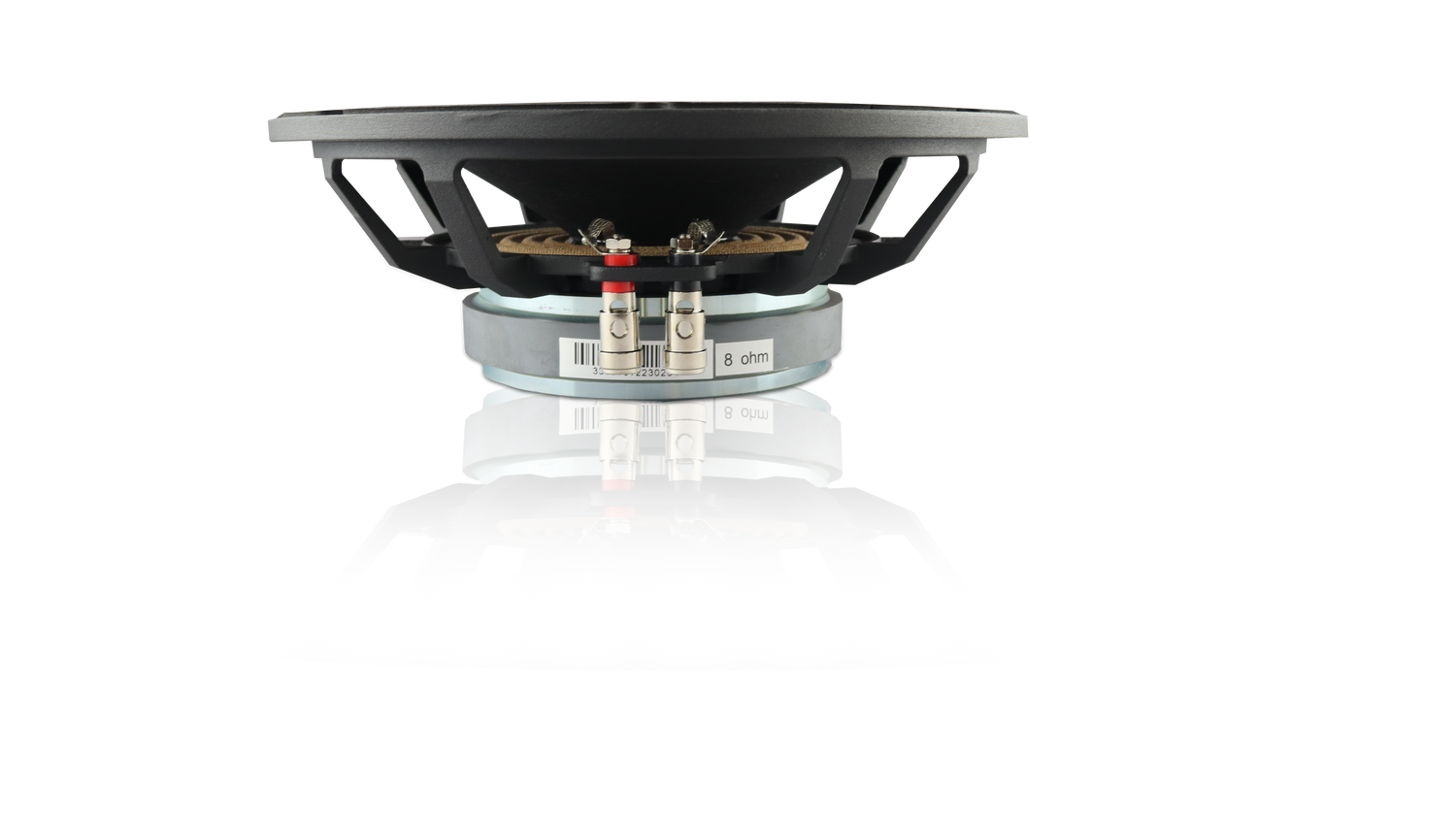

LCMR-10 120 Watt Pro Audio Midrange Speaker
Regular price
$79.99 USD
Regular price
Shipping calculated at checkout.
Features
- Sold Individually
- Power Handling: 120 Watts RMS
- Impedance: 4/8 Ohm
- Frequency Range: 20Hz - 10kHz
- Phase Plug
- Outside Diameter: 10.23"
- Cutout Diameter: 9.17"
- Mounting Depth: 3.25"
- Effective surface area,Sd: 12.469Mm*
| Specification | LCMR-10 4 Ω | LCMR-10 8 Ω |
|---|---|---|
| Fs | 69.45 Hz | — |
| Re | 3.3 Ω | — |
| Qms | 13.22 | — |
| Qes | 0.44 | — |
| Qts | 0.42 | — |
| Vas | 49.14 L | — |
| Outer Diameter | 10.23" | 10.23" |
| Cutout Diameter | 9.17" | 9.17" |
| Mounting Depth | 3.25" | 3.25" |
| Nominal Impedance | 4 Ω | 8 Ω |
| Sensitivity | 96.18 dB | 96.18 dB |
| Frequency Range | 20 Hz – 10 kHz | 20 Hz – 10 kHz |
| Cone Material | Paper | Paper |
| Surround Material | Cloth | Cloth |
| Basket Material | Die Alum. | Die Alum. |
| Magnet Material | Ferrite | Ferrite |
| Voice Coil Former | Kapton | Kapton |
| Voice Coil Winding | Copper | Copper |
| Power (RMS) | 120W | 120W |
