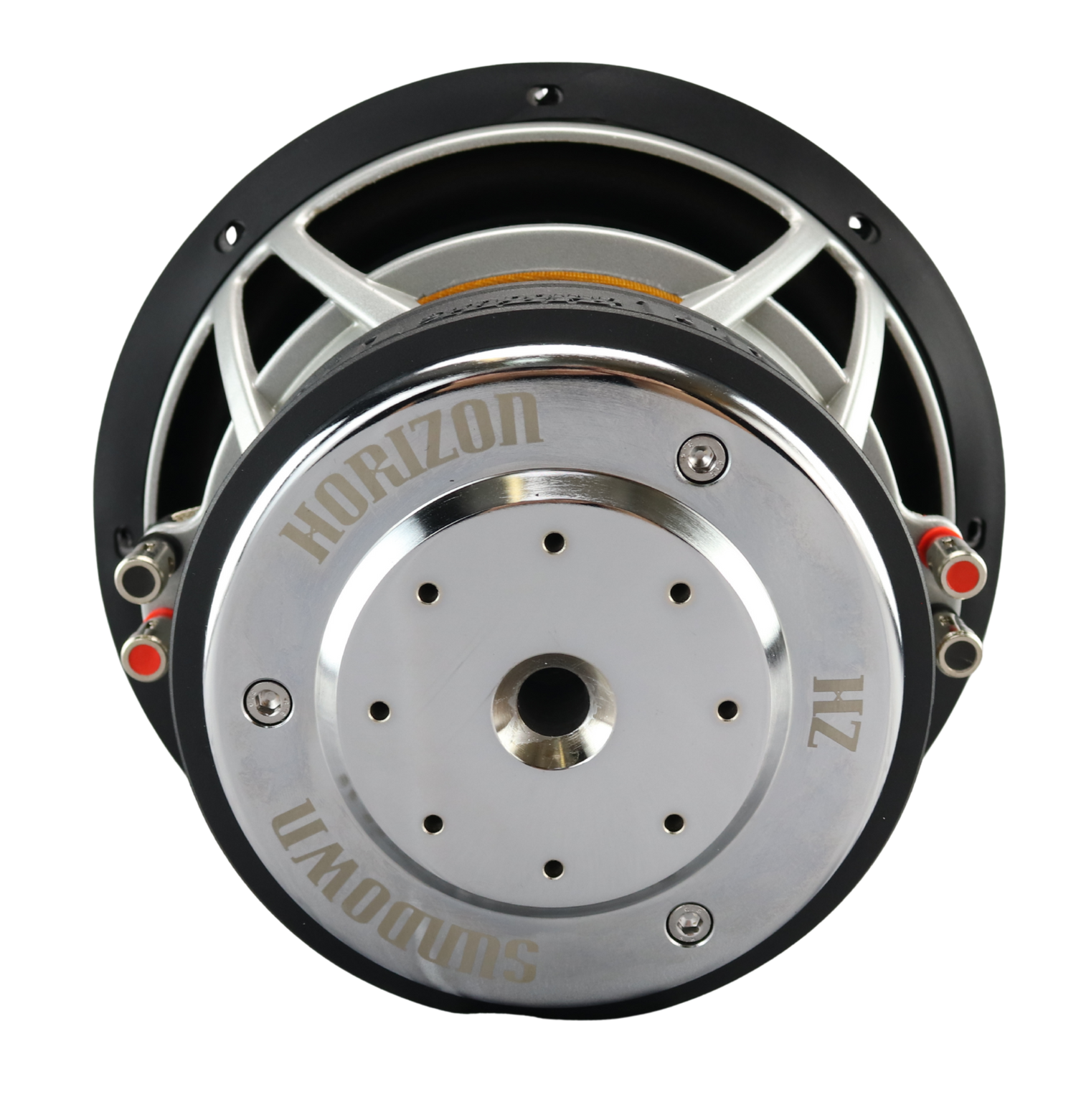

Product image 1, can be opened in a modal.

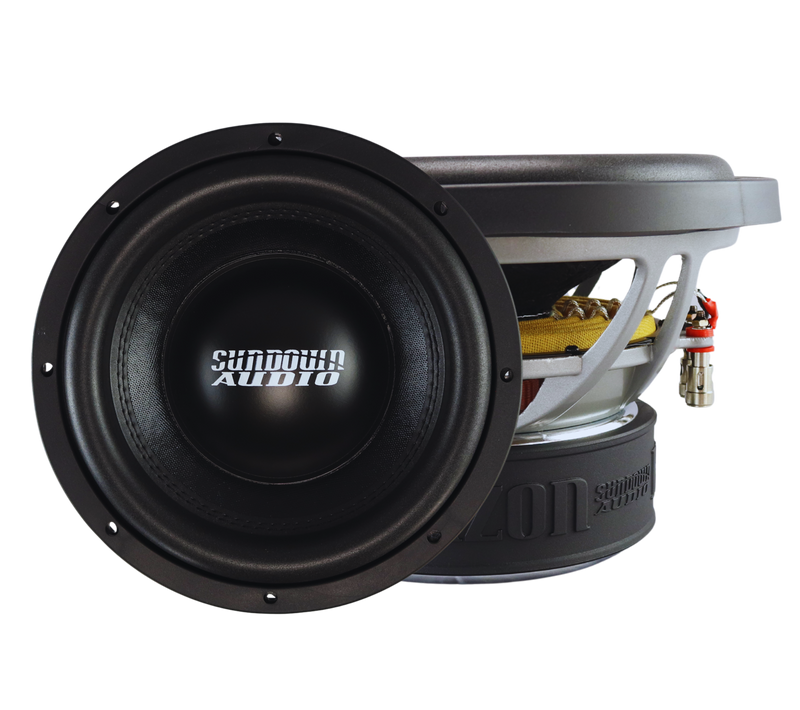

Product image 2, can be opened in a modal.

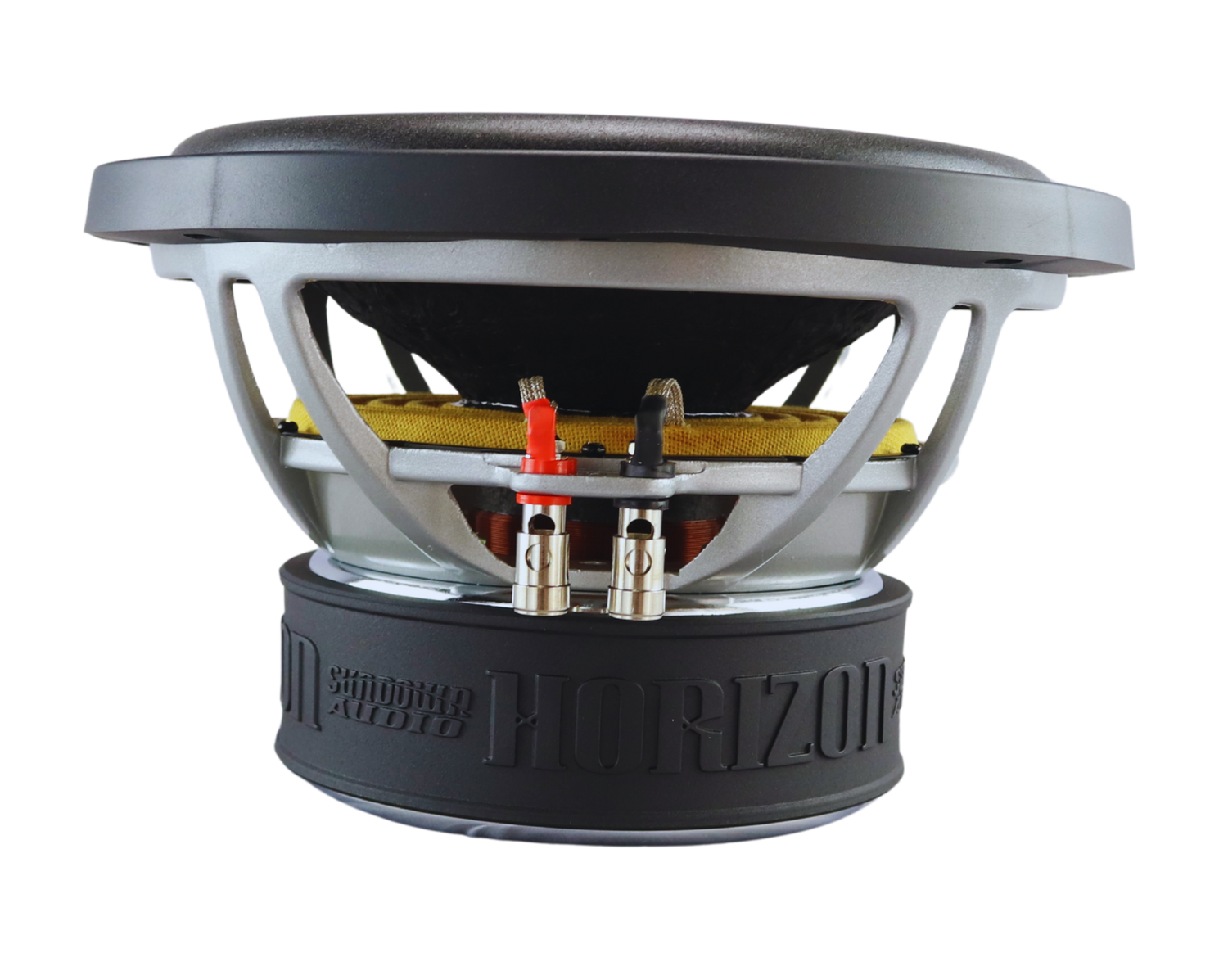

Product image 3, can be opened in a modal.

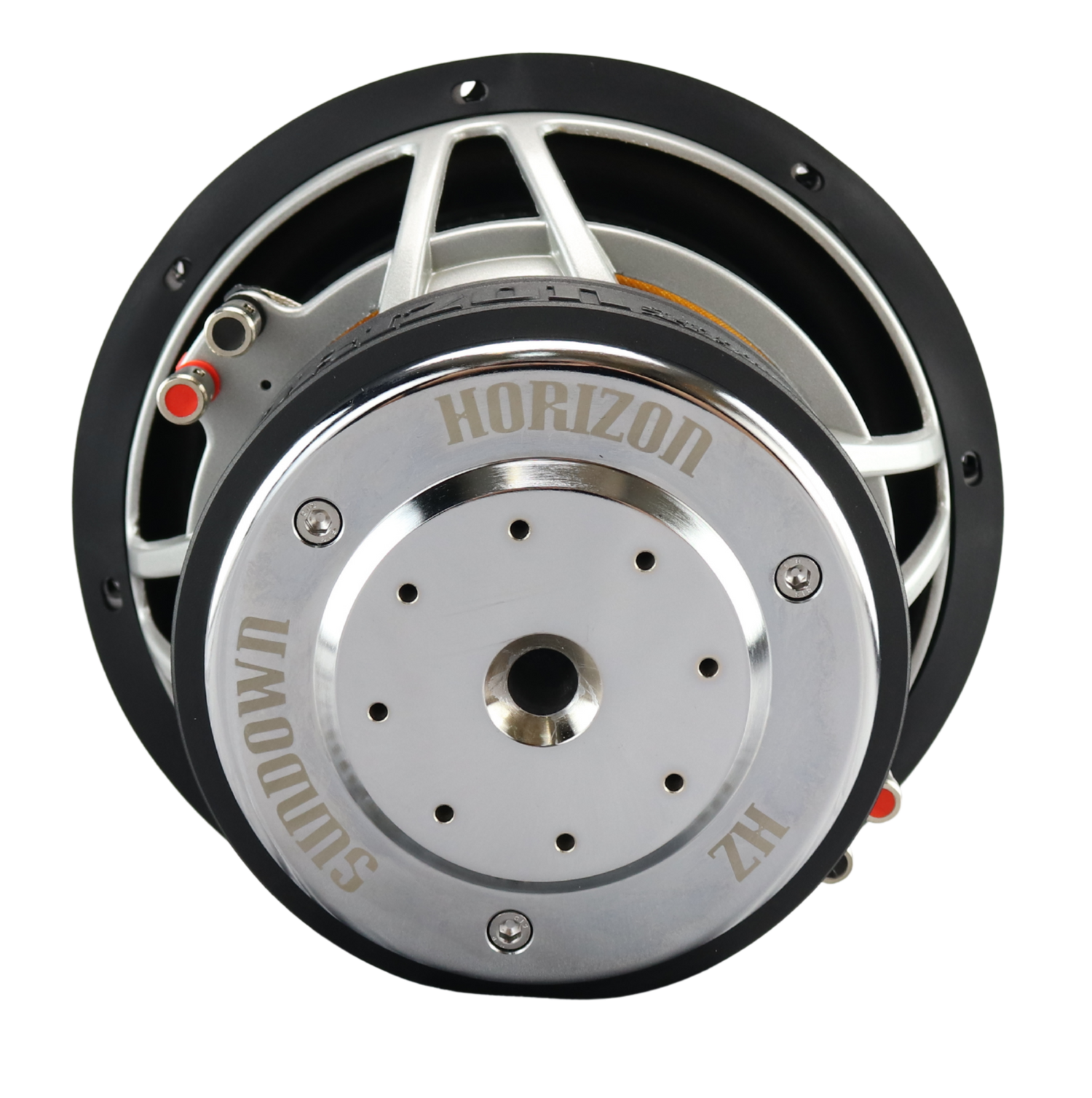

Product image 4, can be opened in a modal.

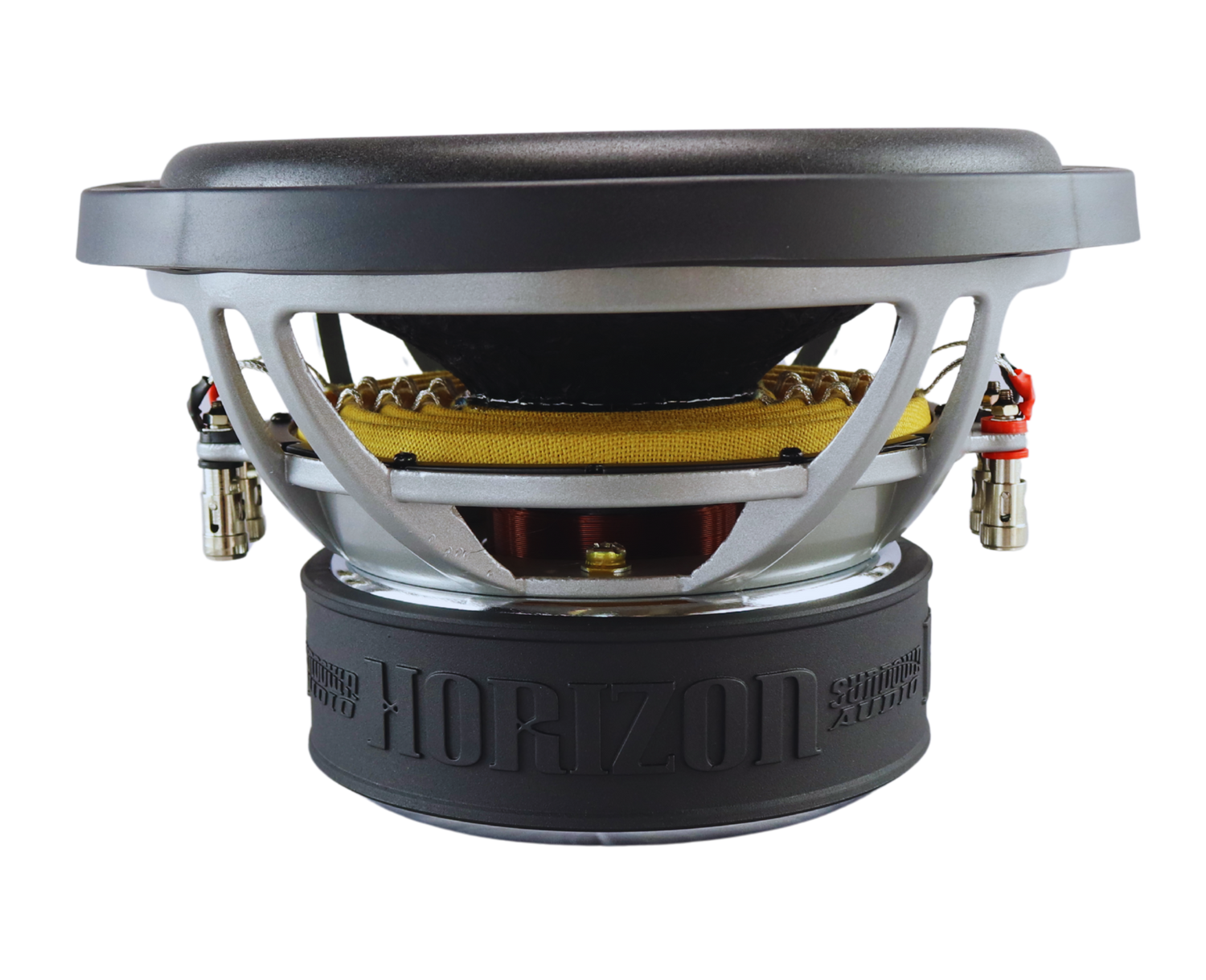

Product image 5, can be opened in a modal.

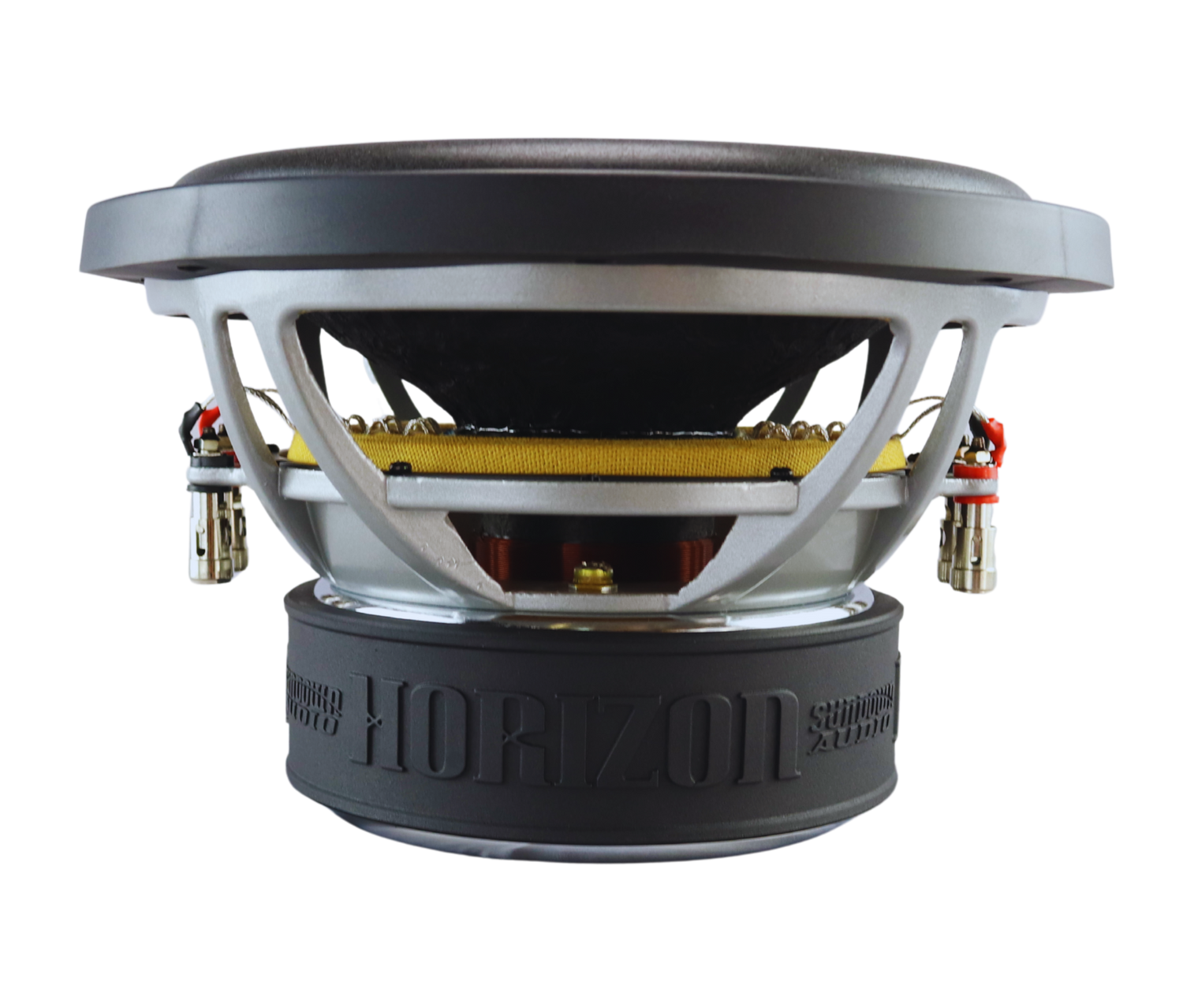

Product image 6, can be opened in a modal.

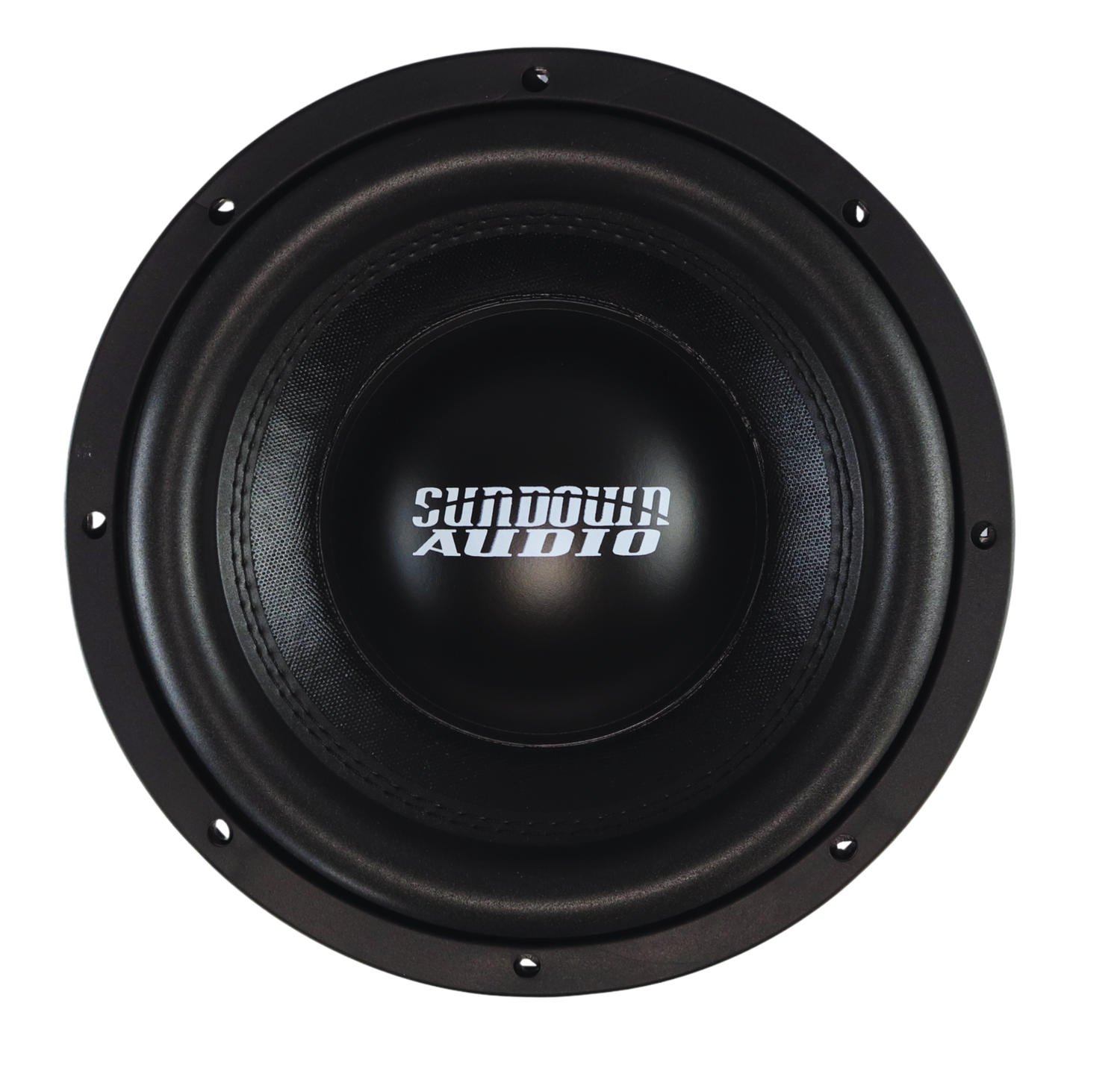

Product image 7, can be opened in a modal.
Horizon HZ 10" Subwoofer
Regular price
$299.99 USD
Regular price
Shipping calculated at checkout.
HZ Series Key Features:
- RMS Power:
- 10" – 750W RMS / 2.5" Voice Coil
- Voice Coil Options: Dual 4Ω - High temp 4-layer copper voice coil wire
- XMAX: Class-leading 14mm Xmax
- Frame: Heavy-duty cast aluminum basket
- Cooling: Vented motor gap and pole piece for optimized heat dissipation
- Durability: Stitched Mini-XL tinsel leads and bolted spider pack
- Suspension: High-roll surround with progressive spider for smooth, controlled excursion
- Recommended Enclosure: Ported for maximum efficiency and output
Specifications
|
RE (Ohms) |
6.13 |
|
FS (Hz) |
33.143 |
|
VAS (L) |
22.863 |
|
Qes |
0.539 |
|
Qms |
3.430 |
|
Qts |
0.466 |
|
BL (NA) |
19.782 |
|
Mms (Grams) |
165.360 |
|
Cms (mm/N) |
139.453 |
|
Sens (dB @ 1w/1m) |
83.8 |
|
Xmax |
14mm |
|
T/S SPECS |
HZ 10" |
Enclosure Specs
-
-
Ported Enclosure
- Size: 1.0 cuft net
- Port Area: 15 sq in
- Port Tuning: 35hz
-
Sealed Enclosure
- Size: 0.5 cuft net
- Displacement: 0.1 cuft.
- Depth: 5.8"
- Outside Diameter: 10.45"
- Cutout: 9.2"
-
Ported Enclosure
Specifications
| T/S Specs | |
|---|---|
RMS Power (D1) |
|
RE D1 (Ohms) |
|
FS D1 (Hz) |
|
VAS D1 (L) |
|
Qes D1 |
|
Qms D1 |
|
Qts D1 |
|
BL D1 (NA) |
|
Mms D1 (Grams) |
|
Cms D1 (uM/N) |
|
Sens D1 (dB @ 1w/1m) |
|
Xmax D1 |
|
| Subwoofer Measurements | |
Documentation |
|
