- RMS 1750 watts
- Dual 2 or 4 ohm voice coils

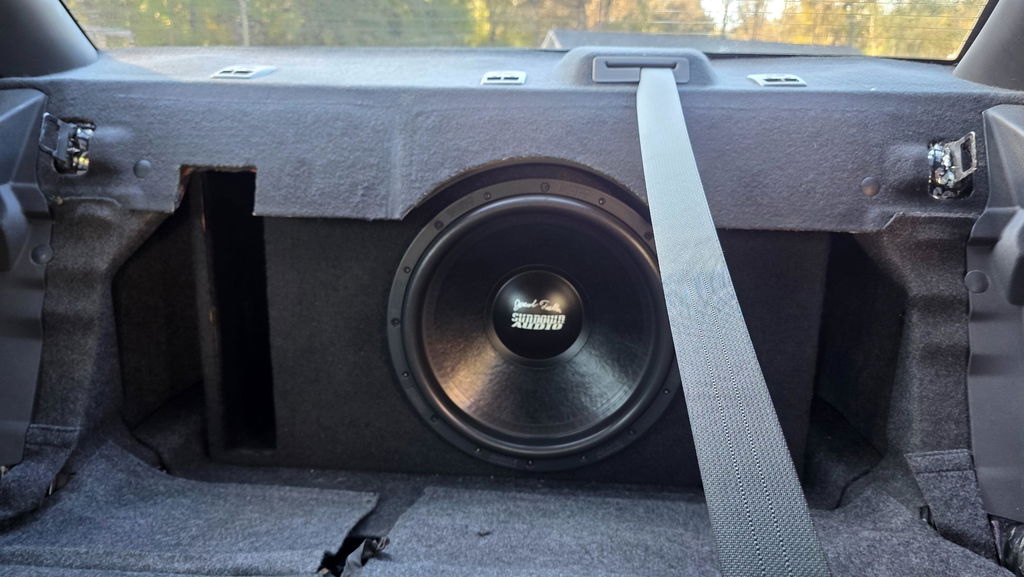

- Optimized for small ported or bandpass enclosures
- Aluminum 3” voice coil former for superior heat dissipation
- High-temperature copper voice coil
- Double stitched surround
- Heavy-duty cast basket
- Spring-loaded terminals accept up to 8-gauge wire
- Stitched-on heavy-duty tinsel leads
- Solid pole with vent channels and aluminum shorting ring cap
- Rear gap-venting
- Top-Plate Cooling Channels
Designed to be at home in the competition lanes or playing your favorite music, the U Series is the premier “standard suspension” woofer in the Sundown lineup. A double-stacked 9.4-inch wide ferrite magnet system is coupled to a thick top plate. A thick set of shorting rings are used inside the magnets and on the pole cap, smoothing out frequency response while doubling as a heat sink and airflow guide. A custom aluminum frame was designed specifically for the U Series. It’s substantially thicker and equipped with heat dissipation ribs at the bottom of the frame. The U v.2 motor also features an extended pole piece to keep the coil under perfect control under high stress. The coil temperature is controlled with machined, high-velocity pole channels and a series of 16 direct air-gap vents in the back plate.
Specifications
| T/S SPECS |
UV.2 15" D2 |
UV.2 15" D4 |
| RE (Ohms) |
3.8279 |
6.0586 |
| FS (Hz) |
37.1918 |
36.4015 |
| VAS (L) |
43.5048 |
46.1027 |
| Qes |
0.5463 |
0.6170 |
| Qms |
5.4082 |
5.5975 |
| Qts |
0.4962 |
0.5557 |
| Le (mH) |
3.4147 |
4.6596 |
| BL (NA) |
26.7943 |
31.1468 |
| Mms (Grams) |
438.4924 |
431.9457 |
| Cms (uM/N) |
41.7623 |
44.2561 |
| Sens (dB @ 1w/1m) |
87.8716 |
87.3156 |
| Xmax |
30mm |
30mm |
Enclosure Specifications
| Sealed Enclosure |
2.0 cu ft |
| Ported Enclosure |
3.0 cu ft |
| Recommended Tuning |
35Hz |
| Recommended Port Area |
48 sq in |
| Displacement |
0.24 cu ft |
| Depth |
9.0″ |
| Outside Diameter |
15.6″ |
| Cut-Out |
14.1″ |
| Physical Dimensions |
Download |
