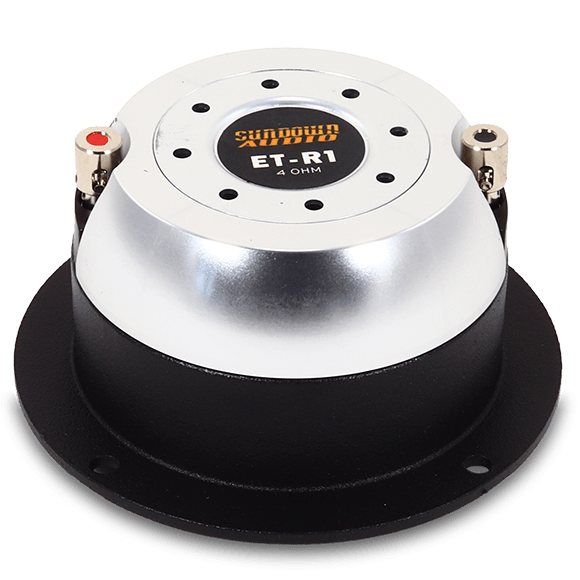

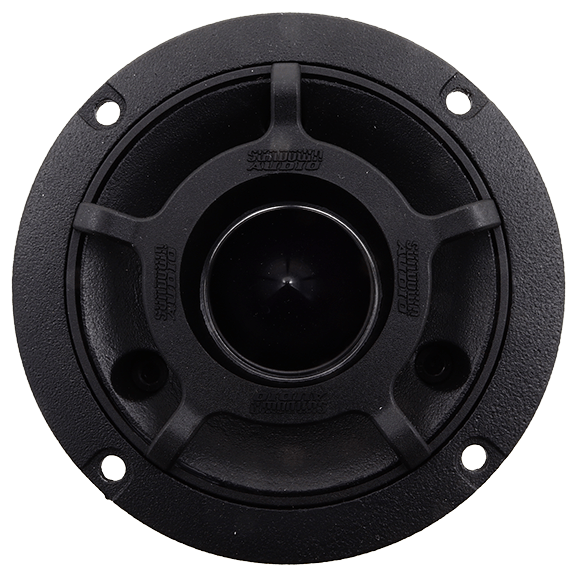

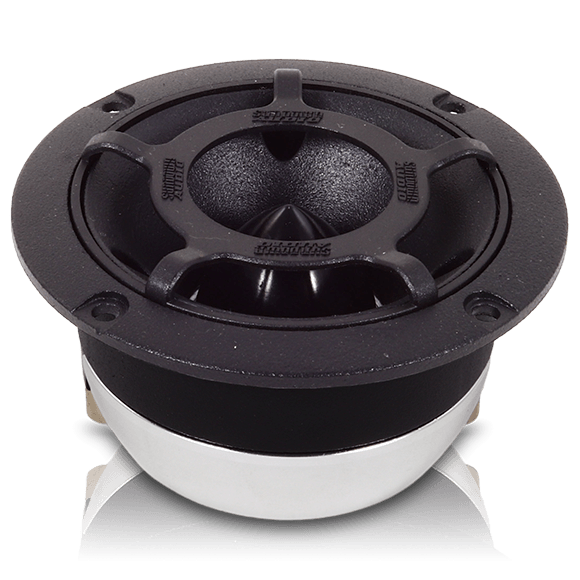

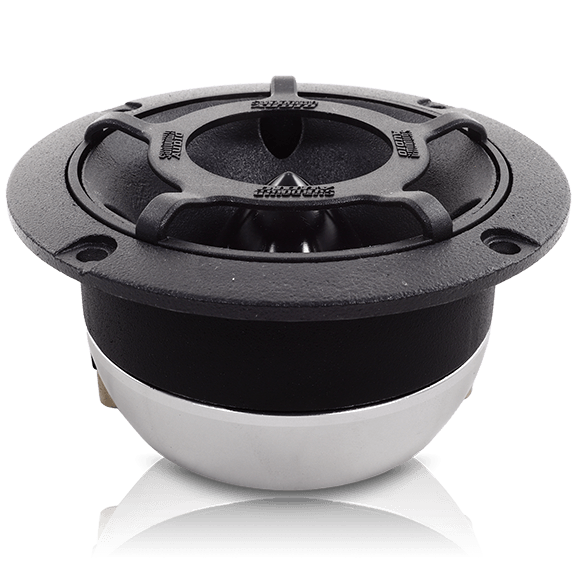

ET-R1 Super Tweeter
Regular price
$44.99 USD
Regular price
Shipping calculated at checkout.
- Power handling: 100 Watts RMS
- Impedance: 4 or 8 ohms
- Frequency range: 4kHz - 20kHz
- Sensitivity: 105dB
- Sold Individually
Handling 100 watts and only 1.67 inches deep, the BT-R1 is the choice when you want to cut through bass like a hot knife through butter. We incorporated our highest sensitivity (105dB) and biggest diaphragm (33.5mm) into this super tweeter to make the most out of every watt you give it.
Measurements
| Specification | ET-R1 4 Ω | ET-R1 8 Ω |
|---|---|---|
| Outer Diameter | 3.74" | 3.74" |
| Cutout Diameter | 2.87" | 2.87" |
| Mounting Depth | 1.67" | 1.67" |
| Voice Coil Diameter | 1.39" | 1.39" |
| Nominal Impedance | 4 Ω | 8 Ω |
| Sensitivity | 100 dB | 100 dB |
| Frequency Range | 4 kHz – 20 kHz | 4 kHz – 20 kHz |
| Basket Material | Aluminum | Aluminum |
| Magnet Material | Neodymium | Neodymium |
| Voice Coil Former | Kapton | Kapton |
| Voice Coil Winding | Copper / Aluminum | Copper / Aluminum |
| Power (RMS) | 100W | 100W |
| Power (Peak) | 100W | 100W |
